330ft Depth Rate Deep Sea Underwater Camera w/ built-in Long Range White LED Light

Ideal for Deep Sea Discovery & Ocean Marine Life Documentary Video
OK for Saltwater & Chemical Pool /  Long Range Night Video in Total Darkness

Underwater Athletic Movement, Boat Inspection, Check anchor set, Marine Life observation
Bridge & Dam inspection, Tank inspection, Docks & pier surveillance, Whale Watch, Fish Search
Search & Rescue, Inspect & Monitor Swimming Pool, Swamps, river, & lake watch, Boat inspection
Underwater farm surveillance, Create videos of Underwater Actions, Check crab pots & lobster traps
Exploring shipwreck & submerged objects, Discover treasure, Cave search, Rain forest watch, Storm Watch

Corrode Free Heavy Duty Stainless Steel Camera Housing armored for all harsh environments







click to enlarge...click to enlarge...click to enlarge...







Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price
"Review more details about optional devices listed at the bottom of this page"



Item#

EUC-5100  --- Preorder to built in house & ships out within 15 working days---

Description

330ft Depth Rate Deep Sea Underwater Video Camera w/ 330ft Cable

Item#

ENC-5100M4P1  --- Preorder to built in house & ships out within 15 working days---

Description

330ft Depth Rate Deep Sea Underwater Video Camera w/ 330ft Cable plus
Complete Option of
Standard Video Recording Monitor & Rechargeable Battery Kit

Specification:

Image Sensor

1/3" Color Sony EX-View HAD ll CCD (960H)

Video Resolution

700 TVL (520K pixel)

Video Connector

RCA Jack1.0 Vp-p (Sync. Negative) Termination 75+10%

Video Output:

1.0 Vp-p (Sync. Negative) Termination 75+10%

Lens

6.0mm Board Lens (FOV 53) & other narrower FOV lens options are available upon a request

Day Visibility

Appx. 3 inches from the camera lens to infinity

Signal System

NTSC for USA, Canada, Asian countries etc...
(*Optional: PAL for Eastern Europe & France, etc...)

Sync. Type

Internal

Scanning System

2:1 Interlace

Gamma Characteristic

Y= 0.45typ

S/N Ratio

48dB over at AGC off

Electronic Shutter

1/60 (1/50) ~ 1/100,000/Sec

Special Features

E-D/N, DWDR, AWB, AGC

Camera Compatibility

Compatible with any conventional TV, monitor, or DVR system that equipped with a composite video-in connector and requires a analog to digital converter when viewing through PC or laptop that is not equipped with a built-in TV or video capture card.

Power up the camera and plug the camera video cable into an available video-in connector on your TV, monitor, or DVR system, you will see the incoming live video instantly and only requires a proper connector if cable connectors do not fit together.

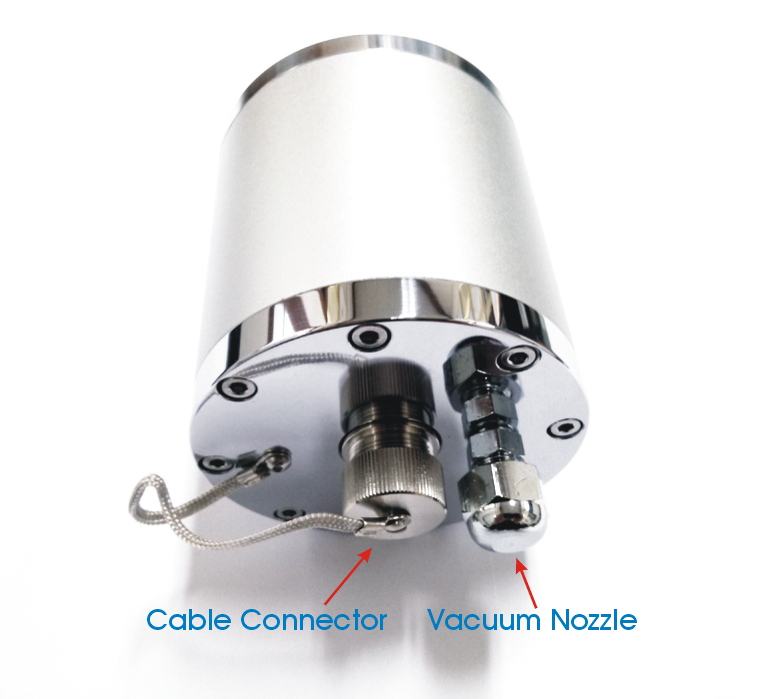

Camera Housing

Stainless Steel for Free from Saltwater and Chemical Corrosion

Max. Depth

Maximum depth can be submerged vertically up to 330ft (100M)

Minimum Illumination

0.002 LUX in Color at LED off

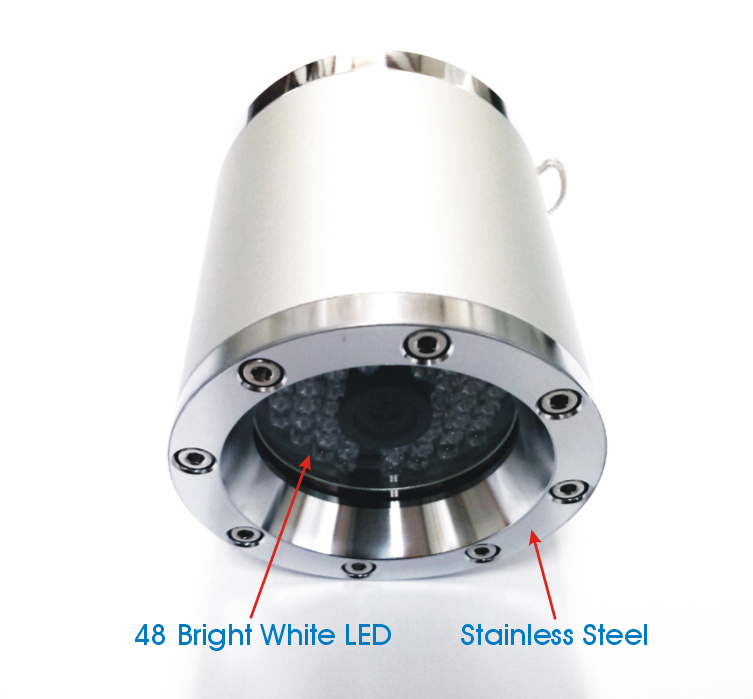

LED Type

48 units of Super Bright White LED

LED Beam Travel Distance

150ft in Air

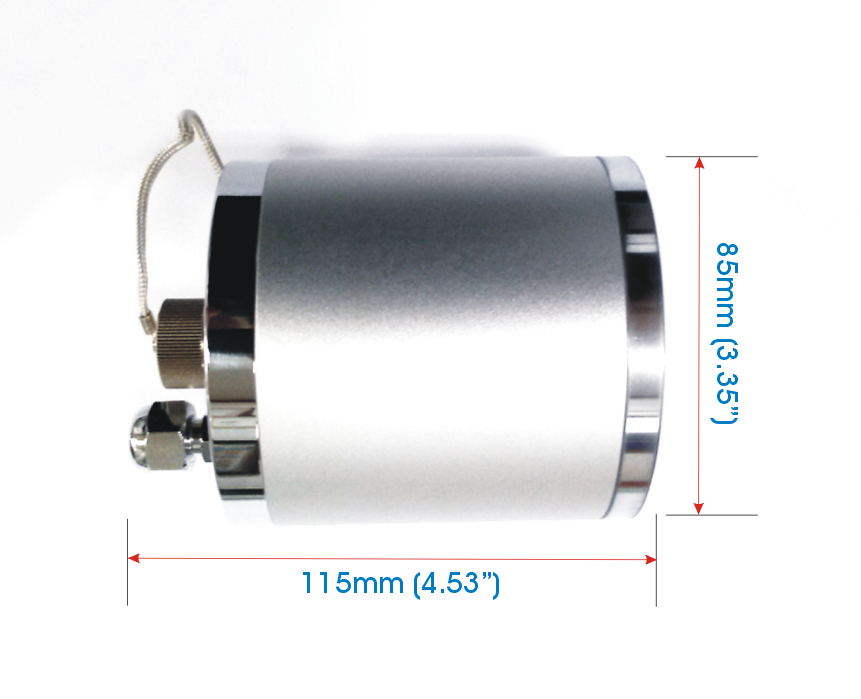

Dimension

click to enlarge... Camera only --- Φ85mm x L115mm (3.45 x 4.53)

Weight

Camera Head only --- Weight: Camera only --- 1.3Kg (2.86LBS)

Power Supply

DC 12V1V

Power Consumption

500mA at LED on

Operation Temp.

-30C ~ 60C

Storage Temp.

-40C ~ 70C

Warranty

One Year Full Warranty including Parts & Labor

Parts Includes

Camera w/ Selected Cable Length, AC/DC 12V Power Adapter, Quick Starter Guide, Video Recording Monitor w/ Detachable Sunshade & Camera Rechargeable Battery Kit when ordered optionally

* 12hr at LED Light-on in continuous use
*
Rechargeable NiMH DC 12V Battery Kit
* Auto Control Universal 7~12V Smart Charger included
* Click here to review more product details

* Standard Rechargeable Video Recording DVR Monitor
* 4.3" LCD Screen &
480x272 or 640368 @ 30fps Video Recording Resolution
* All functions controlled manually pressing control buttons
* 2 ~ 3hr Capacity Built-in 3.7V Rechargeable Battery
* 2x AA Battery Powered Emergency USB Charger included
* 4GB Built-in Memory & External Micro SD Card Slot supports up to 16GB
* Click here to review
more product details

* Touch Screen Remote Control Video Recording & Still Photo Shooting DVR Monitor
* 3.6" LCD Screen & 720
x480@16fps or 640480@30fps Video Recording Resolution
* Still Photo Shooting @ 640x480 pixels
* All functions controlled via Touch Screen menu or included Remote Control Unit
* Motion Activated or Manual recording & Date Time Stamp
* 2 ~ 3hr Capacity Removable 3.7V Rechargeable Battery Pack
* 2x AA Battery Powered Emergency USB Charger included
* 8GB SD Card included & supports up to 32GB or Built-in 160GB Micro HDD
* Click here to review
more product details

Upgrade to Touch Screen Remote Control DVR Monitor from Standard DVR Monitor

-------  Save up to 15% when purchased w/ Pole or Underwater Video System -------


After you purchased a package system that includes the EMT-600 standard DVR monitor and wish to
upgrade your system with EMT-800 Touch Screen DVR monitor, choose one option from the dropdown menu below
and then it will be added as an additional item in your shopping cart when click the "Add to Cart" button to check out

Unit
Price
