The
cutting-edge

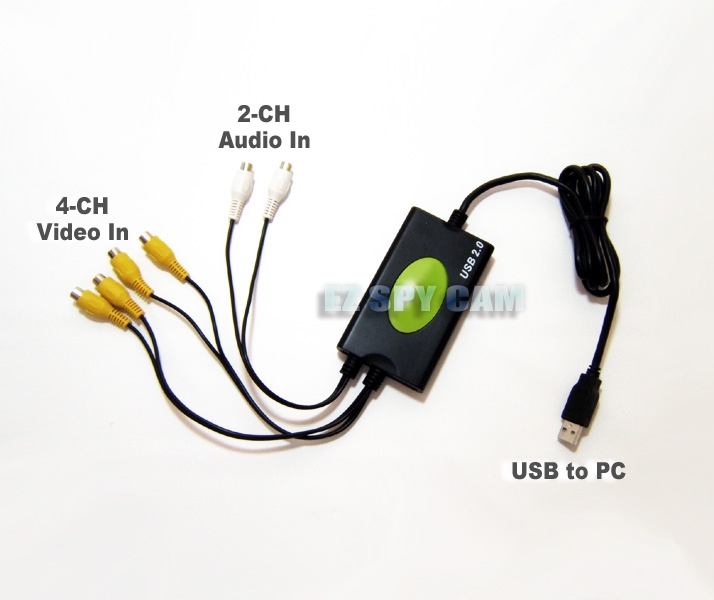

4-CH CCTV video to PC DVR converter turns your desktop or notebook
PC into a powerful security system. The video converting system
includes USB 2.0 DVR Card built-in with MPEG4 compression for
conserving storage space with little loss of quality, stores files
directly on your PC hard drive, & powerful recording software
features motion detection, remote access over the internet via
Internet Explorer, and manage up to 4 video inputs, etc…
This powerful 4-CH CCTV video to PC DVR
adapter is the perfect answer and cost efficient way to keep your
family secure, protect your assets against theft, or manage your
staffs and resources more effectively.
Features:
-
4-CH
Analog CCTV Video to USB PC DVR adapter
-
Alarm
or Motion Detection Mode
-
Record
at 30 FPS NTSC (shared)
-
Display
at 120 FPS NTSC
-
Remote
internet monitoring and networking (software included)
-
Auto
email notification
-
4
Video & 2 Audio inputs
Specification:
-
Video
Compression: MPEG4
-
Record
Option: Time, Alarm, Motion Detection and Manual
-
Video
Inputs: Auto Switch, Full screen or 4 split screen
-
Video
Output: RJ45 port for 10/100BaseT Network
-
VGA
Resolution: Display: 30 FPS / Record: Max 30 FPS (NTSC) shared
by 4 channels
-
Connectors:
1x
USB
Port
: 2.0, 4x RCA Video, 2x RCA Audio
-
Display
Frame Rate (Shared): 640x480 or 320x240
-
Playback
Resolution:
-
Record
Frame Rate (Shared): 320x240 (NTSC) / 352x288 (PAL)
-
Search
Options: Search by Time, Event (Alarm or Motion Detection)
-
RS-485
Port (PTZ Support):
Serial
Port
-
Power
Supply: DC 12V
PC
System Requirements:
-
OS
Supported: Win2000, WinXP,
Vista (32bit)
-
CPU:
Intel Pentium III 800 (minimum)
-
HDD:
100GB Free spaces recommended
-
RAM:
512 MB (minimum)
-
Port:
USB 2.0 Port
-
VGA:
Support most AGP & PCI-E Graphics cards with 64 MB of RAM
that have full Direct Draw Support *some newer PCI-express
cards are not yet supported.
Parts
included:
|
