RS-232 to RS-485 & RS-422 DVA Converter

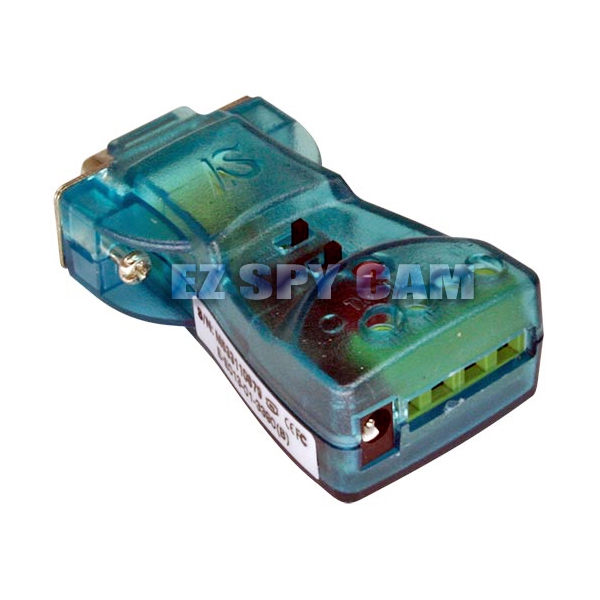

DVA CONVERTER converts RS232 signals to RS422 or 485. It is an efficient solution for applying advantages of RS422/485 to legacy RS232 devices. The converter operates with no extra software installation. With simple DIP switch toggling, RS422 or RS485 can be selected. Also, the product is fully compatible with serial COM port in PC

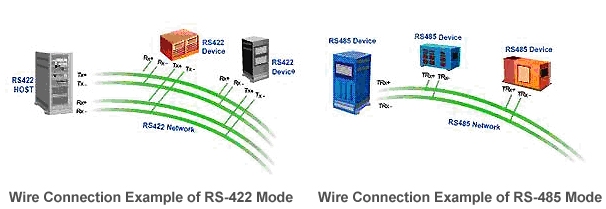

click to enlarge...

Auto RTS Control (Auto Toggling)
Under 1:N communication environment, it is undesirable that multiple devices send data at once, causing electrical collision that leads to an error. In order to prevent this, only one device needs to send data at a time, which means that data I/O control is necessary at certain points. DVA CONVERTER performs automatic toggling by hardware, saving extra programming work.

What is RS485 Echo Mode?
The point which is different from the method for RS485 Non-echo mode is that the output signal line by itself is input again to the input signal line. Therefore, it is possible to confirm whether the data sent crashes with the data sent by another terminal or not by reading the echoed data. This operating mode is scarcely used except in some special purposes. On DVA CONVERTER all operation is controlled by hardware circuit so operation is required by application program.



Our Price $10 off >

US$79.00

Regular Price >

US$89.00

Item#

EAC-009

Description

RS-232 to RS-485 / RS-422 DVA Converter

Features

  • Fully compatible with PC serial COM ports

  • Basically operates with no power (Power applied to DTR signal)

  • Enables the use of external DC power supply (7~12V) Built in Surge Protector Auto Toggling by hardware (CS-428/9AT model only)

  • Communication status can be monitored through LEDs

  • DIP Switch for RS422/485 mode

  • Max. 10 Device Connectivity for RS422 Multi-Drop Mode

  • Max. 32 Device connectivity for RS485 Mode

Mode

Asynchronous serial communication

Speed

Up to 921.6Kbps

Distance

Max. 1.2Km @115.2Kbps,24AWG twisted pair cable

Connector

RS232 : DB9 Female (Male : optional)
RS422/485 : Terminal Block 5P

Signals

TXD, RXD, RTS, CTS, GND for RS232

Protection

3KV Isolation among sides
15KV Surge Protection for all signals

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

RS422 mode

Point-to-Point, Multi-Drop

RS485 mode

Echo, Non-Echo

RTS Control

RS422/485 mode switch

OS

No Software Required

Power Input

7~12VDC

Power Consumption

0.4W (33mA@12V)

LED

Power, TX, RX

Dimensions

74(W)x37(H)x19(D)mm

Weight

33g

Enclosure

Plastic (Blue Color)

Operating Temp

0 ~ 55C (32~131F)

Dimensions

125(W)x80(D)x60(H)mm

Parts included

Converter unit, AC/DC Power Supply, Instruction Manual
