HD-SDI Video to HDMI Video Converter

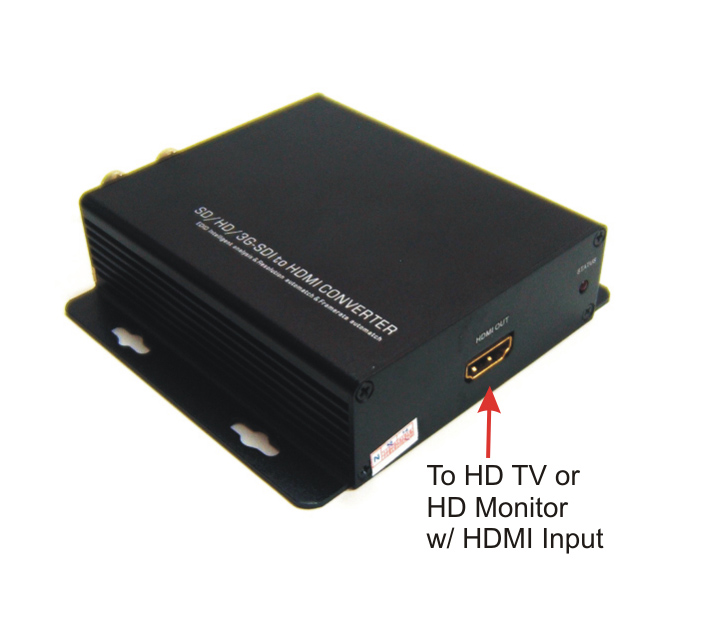

Converts HD-SDI video signal to HD TV or Monitor w/ HDMI Input
Plug-n-Play installation & Compact pocket size, Easy to carry around

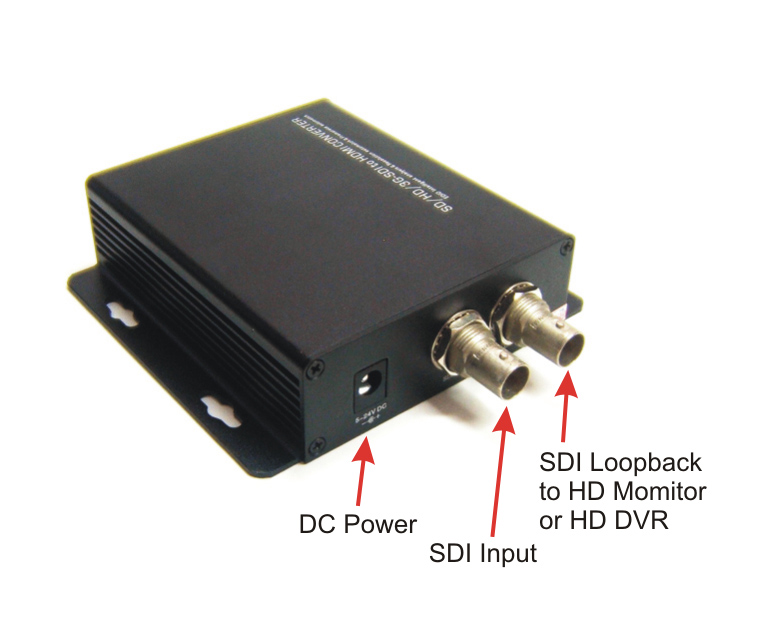

Carry 1 Channel SDI signal to loopback to HD monitor or HD DVR system



click to enlarge...                  click to enlarge...





Our Price $30 off >

US$199.00

Regular Price >

US$229.00

Item#: EAC-011   --- Preorder to built in house & ships out within 2~3 working days ---

Description: HD-SDI to HDMI Video Converter

Interface

1 BNC SDI

Input Signal Type

SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI (2.97Gbps)

Support Input Format

SD: 525i @ 59.94hZ, 642I @ 50Hz
HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
       720p @ 50Hz / 59.94Hz / 60Hz
       1080i @ 50Hz / 59.94Hz / 60Hz
       1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
3G: 1080p @ 50Hz / 59.94Hz / 60Hz

SDI Signal Range

0.8V p-p

SDI Impedance

75 Ω

SDI Coupling Type

AC Coupling

Max. Input Coax Length

Belden 1694A
SD-SDI 400m / 1300f ; HD-SDI 200m / 600ft;
3G-SDI 140m / 450ft

SDI Loop Out Interface

1 BNC SDI

HDMI / DVI Output Interface

1 HDMI

Frequency Bandwidth

165MHz/ up to standard with HDCP: HDMI 1.3

Output Format

NTSC

Power Supply

5V~24V DC

Power Consumption

6 Watts (max)

Operating Temperature

32F~104F

Storage Temperature

-4F~140F

Relative Humidity

20~90% RH (Nom-condensation)

Dimension

6.14"4.72"1.42" / 15612036mm

Parts included

Convert Unit, Universal AC/DC Power Adapter, Quick Starter Guide
