| Item# |
EAR-100
|
| Motion
Detection |
Digital
Signal Process --- It's Not PIR (Passive Infrared) Sensor |
| 4-Level
Sensitivity |
1.Very
Low 2.Low 3.Medium 4.High |
| Video
Input from |
Black
or Color Camera |
| Video
Output to |
Monitor
or Recorder w/ Alarm Trigger Function |
| Video
Signal |
EIA
or NTSC/CCIR or PAL |
| Input
Signal |
1vp-p
75ohm |
| Output
Signal |
1
Vp-p, 75ohm |
| Power
Input |
DC
9V-300mA (2.7watts) |

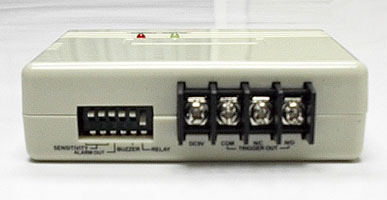

| Output
Terminal |
1.
Alarm Trigger (NO - Normal Open & Turns On to Open): Be
decided by VCR Spec |
| 2.
Alarm Trigger (NC - Normal Close & Turns On to Close): Be
decided by VCR Spec |
| 3.
Motion Detection |
| 4.
D/C 9V Output |
| DIP
Switch Function |
1,2,3:
Sensitivity Adjustable Switches |
| 4:
Time Selection of Motion Detect |
| 5:
Buzzer-Alarm Sound On-Off Switch |
| 6:
Motion Detect Output On-Off Switch |
| Operation |
DIP
Switch 6 should be On Always to send Alarm Signal Out |
| Adjust
Sensitivity Level w/ DIP Switch 1,2,3 as it shown the included
spec sheet |
| DIP
Switch 4 for Motion Detect Time and On for 0.6 sec. and Off for 3
sec. |
| DIP
Switch 5 for Buzzer Alarm On or Off |
| Dimension |
82.5
x 63.5 x 25.4mm (3.25" x 2.5" x 1.0") |
| Weight |
3oz
(85g) |

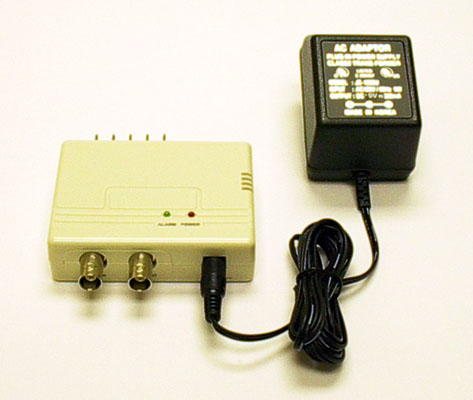

| Includes |
AC/DC
9V-300mA Power Supply; Spec Sheet |
