General
Specification
|
| Item# |
EAT-002
*Pre-order required...
|
| Description |

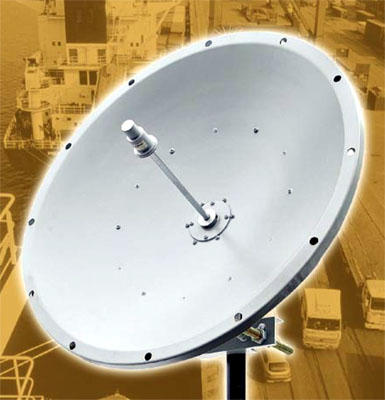

All-weather 5.8GHz 29dB Parabolic Antenna - Increase Range up to 4 miles
|
| Operating
Frequency: |
5.725
GHz-5.875 GHz |
| Antenna
Type: |
All-Weather
Directional Parabolic Dish |
| Radiated
Power: |
29dB
High Gain |
| Connector
Format: |
Antenna
- N Female |
| Operating
Temperature Range: |
All-Weather
Construction |
| Dimensions: |
25.5"
diameter |
| Beam
Width |
6
Degrees |
| Impedance |
50
Ohms |
| Rated
Wind Velocity |
125
mph |
| Weight |
11
lbs |
| Installation |
Indoor
& Outdoor / Only requires to install at Receiver side, but recommended
to install at Transmitter side for the optimal result |
| Includes: |
Pole
Mounting Bracket, Hardware and 6 feet of Low Loss RF Cable ( N-Male /
TNC-Male ), Printed Owner's Manual |
 |
*
Click
the following link or paste it to you web browser to review
Frequency Comparison Chart. http://www.EZspyCam.com/Download/Freq_Perform_Comparison.pdf
*Click
the following link or paste to your web browser to
review Samples of Installation Plan. http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf
1-Year warranty will not cover
if the
equipment malfunctions that
caused by
improper
installation.
|
