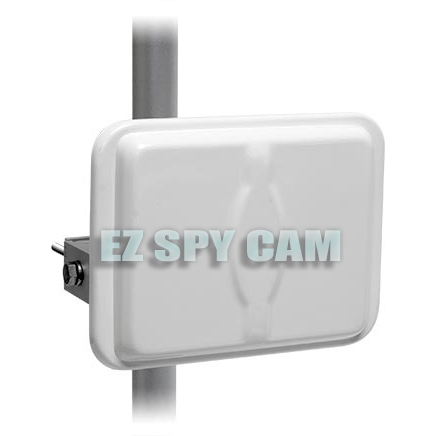

2.4GHz Ultra Long Range High Gain All-Weather Directional Antenna up to 3,300ft

Designed to connect to 2.4 GHz video/audio transmitter, this series of specialty
antennas allows you to match the antenna to your specific application needs. Manufactured from
the highest quality materials to ensure superior electrical performance, mechanical durability and longevity.
Meet your application demands to improve and increase signal strength and transmission range.

Having a trouble transmitting 2.4GHz wireless Video & Audio? This is the solution!





click to enlarge...                          click to enlarge...





Our Price $50 off >

US$199.00

Regular Price >

US$249.00

General Specification

Item# EAT-004
Description Ultra Long Range All-weather 2.4GHz Directional Antenna
Connection Only requires to connect on a transmitter
Operating Frequency 2.4 - 2.4835 GHz
Transmission Range up to 3,300ft in LOS (Ling of Sight)
Antenna Gain 10dBi
Cross Polarization 20dB
VSWR < or = 1.5
Housing All-Weather Construction
Operating Temperature -40º ~ 80ºC
Relative Humidity 0 to 95% RH
Dimensions: 7" x 5" x 0.75"
Beam Width 70º x 35º
Impedance 50 Ohms
Rated Wind Velocity 125 Km/h
Connector SMA Type Male (Ø5/8" to Antenna + Ø1/4" to Transmitter)
Weight 1.5 lbs (w/ Mount Bracket & Cable)
Dimension 7" x 5 1/4" x 3/4" (Antenna only)
Parts Included: Pole Mounting Bracket, 6ft of Low Loss RF Cable, Printed Owner's Manual.
* Click the left photo to download and review Frequency Comparison Chart
* Click the left photo to download and review Samples of Installation Plan.

1-Year warranty will not cover
if the equipment malfunctions that caused by improper installation.
