560TVL Ultra High Resolution Micro Pinhole Bullet Camera

Ideal for Hidden Spy Video Surveillance
All Weather - Indoor & Outdoor Use
Home security, Business surveillance, Home alone Pet watch, School Security
Child Monitoring, Wild Animal video, Zoo keeping, Bird net watch, Garden watch, Natural Life observation
Cash counter surveillance, Baby Watch, Office Surveillance, Infants safety, Property security, Animal Watch
Backyard Watch, Outdoor security, Hidden surveillance, Spy video, Live video, Video surveillance, Nanny Cam

 A-must-have Replacement for Old Generation Blurry CCTV Video Cameras



click to enlarge...                        click to enlarge...



Sale Price $20 off >

US$149.00

Regular Price >

US$169.00

Item#

EBC-500

Description

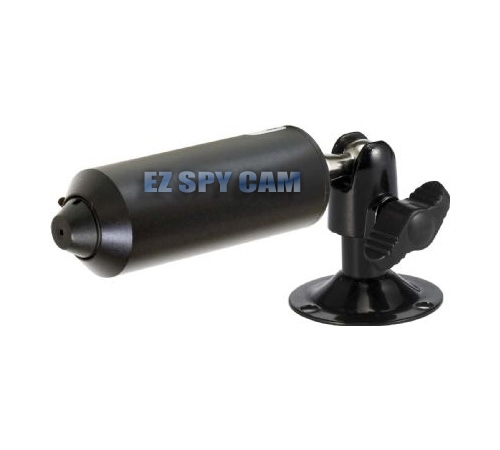

Ultra High 560TVL Resolution Pinhole Color Bullet Camera

Image Sensor

Sony 1/3" Super HAD Color CCD

Signal System

NTSC for USA, Canada, Asian countries etc...
(*Optional: PAL for Eastern Europe & France, etc...)

Lens

3.7mm Super Multi-layer Conical Pinhole Lens (FOV: 90 Diagonally)

Viewing Angles

click to enlarge...
Refer the left pic of the viewing angle comparison to know how large area the applicable lens can see and click the following link to review the FOV comparison of all applicable lenses.
http://www.EZspyCam.com/R-img-FOV-variation.htm

Day Visibility

3 inches from the camera to infinity

Video Resolution

Ultra High 560 TVL in Color / 520 TVL in B&W (410K pixel

Video Connector

BNC Jack

Power Consumption

DC 12V10% 150mA

Min. Illumination

0.03 LUX

Video Connector

BNC Jack

Operating Temp

-10C ~ 50C (14F ~ 122F) / RH95% Max

Storage Temp

-20C ~ 60C (-4F ~ 140F) / RH95% Max

Dimension

Camera only / Φ0.8" x L3.0" (Φ20mm x L76mm)

Electronic Shutter

1/60~1/100,000/Sec

Special Feature

Auto Gain Control (AGC) / Auto White Balance (AWB)
Back Light Compensation (BLC) / Electronic Shuttle Control (ELC)
Day Night Function to view IR Light in the dark & support to see in the Low Light Condition

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

AC/DC 12V Power Supply, Manual, Complete Mount Bracket Set

Special Instruction

*This camera never should be installed outdoor and exposed heavy moisture wet environment for long period.

*Click the following link or paste it to you web browser to review a proper way to purchase suitable cameras or accessories for your need.
http://www.EZspyCam.com/PG-NightVsionCam.htm

*Click the following link or paste to your web browser to make sure to review Installation Guide.
http://www.EZspyCam.com/IG-NV-VarifocalCam.htm

1-Year warranty will not cover if the camera or cable malfunctions that caused by improper installation.
