Ideal
for Hidden Spy Video Surveillance
Indoor
use only
Home
security, Business surveillance, Home alone Pet watch, School Security
Child Monitoring, Wild Animal video, Zoo keeping, Bird net watch, Garden watch, Natural
Life observation
Cash counter surveillance, Baby Watch, Office Surveillance, Infants
safety, Property security, Animal Watch
Backyard Watch, Outdoor security, Hidden surveillance, Spy video, Live
video, Video surveillance, Nanny Cam
|
|
Item#
|
ECC-100
|
|
Sensor
|
Interline
Transfer 1/4" Color
CCD
|
|
Signal
System
|
NTSC
for USA, Canada, Asian countries etc...
(*Optional: PAL for
Eastern Europe & France, etc...)
|
|
Lens
|
3.7mm
Super Multi-layer Conical Pinhole Lens (FOV:
90º
Diagonally)
|
|
Viewing
Angle Examples
|
Refer the left pic of the viewing angle comparison to know how large
area the applicable lens can see and click the following link to
review the FOV
comparison of all applicable lenses.
http://www.ezspycam.com/R-img-FOV-variation.htm
|
|
Day
Visibility
|
 3
inches from the camera to infinity.
Click the left image to play the video clip sample.
|
|
Video
Resolution
|
420
TVL (270K pixel)
|
|
Video
Connector
|
BNC
Jack
|
|
Power
Consumption
|
DC
12V±1V
/ 110W Maximum
|
|
Minimum
Illumination
|
0.5
LUX
|
|

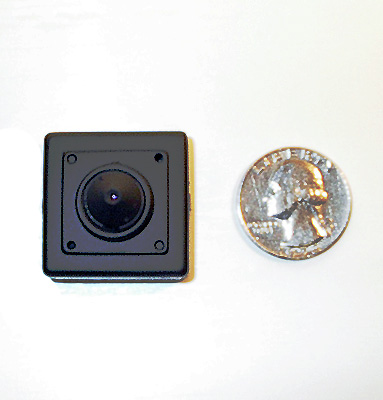

Weight
/ Dimension
|
3.18oz
(90g) - Camera only
/ W30mm
x H30mm x D18mm (1.18”x1.18”x0.71”)
|
|
Operating
Temp
|
-5ºC
~ 40ºC (23ºF ~ 104ºF) / RH95% Max
|
|
Electronic
Shutter
|
1/60~1/100,000/Sec
|
|
Special
Feature
|
Auto
White Balance (AWB) / Auto Gain
Control (AGC)
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|

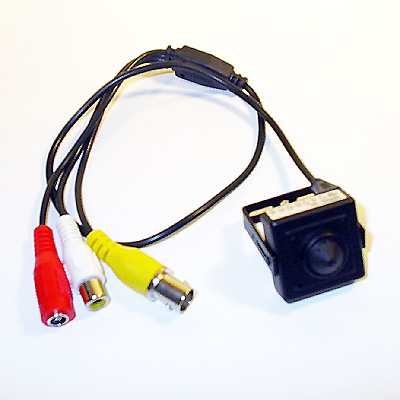

Camera
Set Includes
|
Video
Connection Cable, Installation Guide, Spec Sheet
|
|
Special
Note
|
*This
camera never should be installed outdoor and
exposed under heavy storm or
harsh raining environment, unless it is encased or insulated
completely with waterproof materials.
|
|
