Encased Covert Micro Square Camera w/ OSD Control & 560TVL Ultra High Video

Ideal for Hidden Spy Video Surveillance & Crystal Clear Face Verification
Indoor use only & For Hidden Video Evidence
Home security, Business surveillance, Home alone Pet watch, School Security
Child Monitoring, Wild Animal video, Zoo keeping, Bird net watch, Garden watch, Natural Life observation
Cash counter surveillance, Baby Watch, Office Surveillance, Infants safety, Property security, Animal Watch
Backyard Watch, Outdoor security, Hidden surveillance, Spy video, Live video, Video surveillance, Nanny Cam

Cutting-Edge ultimate video quality for building your own video gadget



click to enlarge...   click to enlarge...   click to enlarge...

click to enlarge...                      click to enlarge...



Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price

Item#

ECC-103

Description

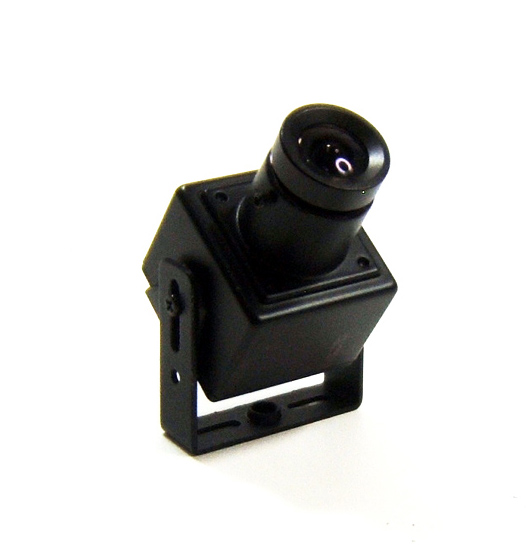

Covert Micro Encased Square Camera w/ External OSD Control Button

Image Sensor

1/3" Sony Super HAD Color CCD

Signal System

NTSC (* PAL only available w/ an order quantity over 10 units)
*Most of recent HD monitors & DVR are automatically switches and compatible with both NTSC & PAL system, but it would be more affordable for using a NTSC-to-PAL converter if still necessary to covert to PAL from NTSC video in order to use w/ old monitors.

Lens

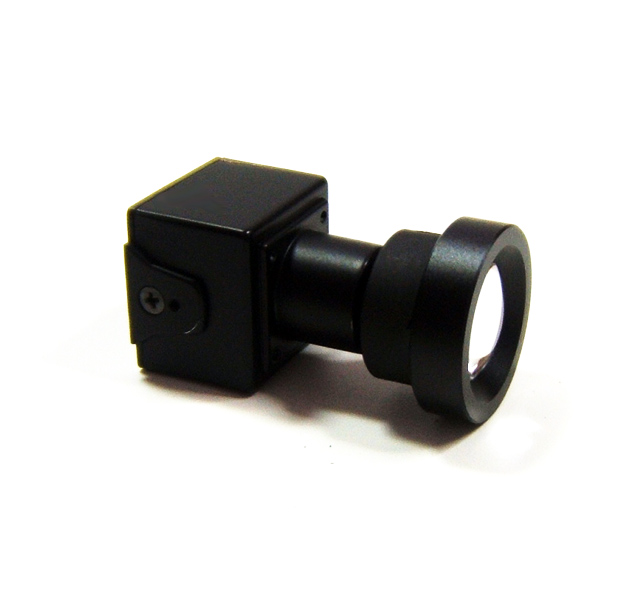

Selectable from 2.5, 3.6, 8.0, 16, 25mm, & 3.7mm Pinhole Lens

Viewing Angle Examples

click to enlarge...
click to enlarge...

Video Resolution

540 TVL

Picture Elements

811(H) x 508(V) - 410K pixel

Effective Pixels

768(H) x 494(V) - 380K pixel

Sensing Area

3.65H) x 2.74(V) mm

Scanning System

2:1 Interlace / 525 Lines / 50 Fields / 30 Frames

Video Connector

BNC Jack

Video Output

1.0Vp-p, 75 ohm

Power Consumption

DC 12V1V / 150W Maximum

Minimum Illumination

0.1 LUX Color / 0.03 LUX B&W

Weight / Dimension

3.18oz (90g) - Camera only / W24mm x H23mm x D19mm (Without Lens Holder)

Operating Temp

-10C ~ 50C (14F ~ 120F) / RH95% Max

Electronic Shutter

1/60~1/100,000/Sec

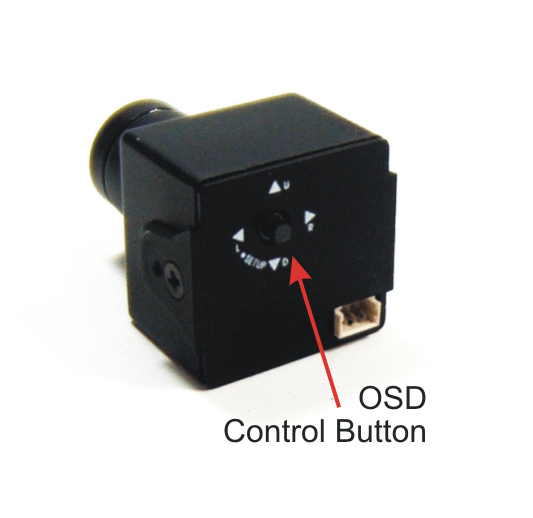

OSD Control

White Balance, Gain Control, Day Night, Lens, Shutter, Mirror, Motion, Privacy, Gamma, etc.

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

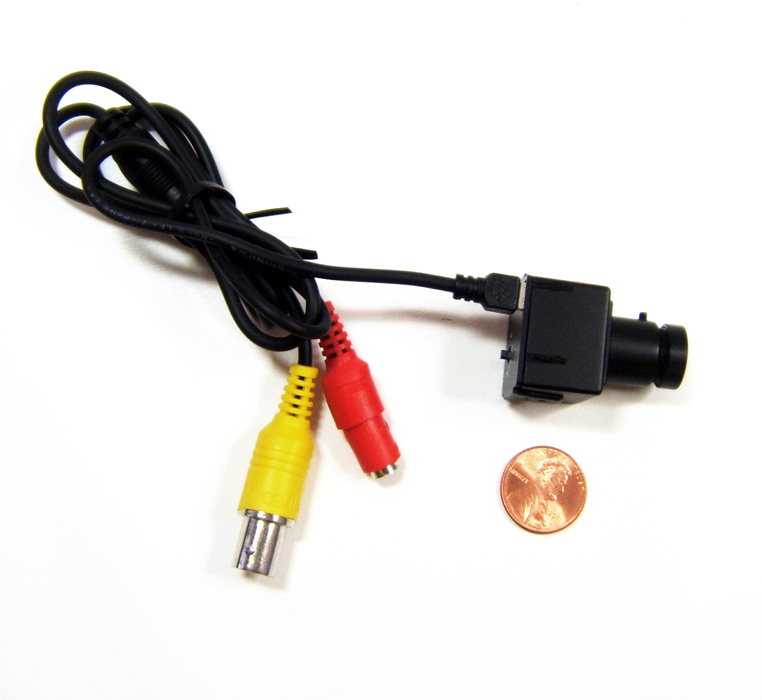

Cable Set, Mount Bracket Set, AC/DC 12V Power Adapter, Quick Starter

Special Note

*This camera never should be installed outdoor and exposed under heavy storm or harsh raining environment, unless it is encased or insulated completely with waterproof materials.
