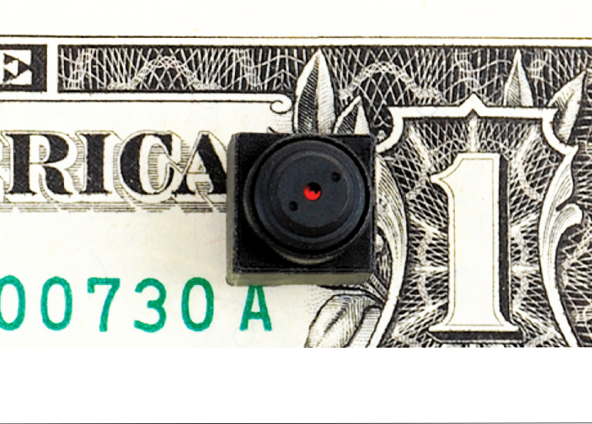

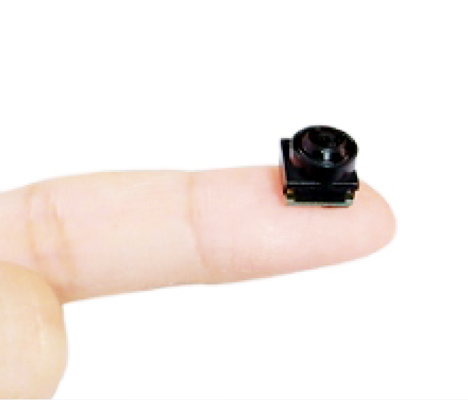

Fingertip Size Tiny Covert Video Surveillance Camera

Ideal to view unreachable impossible-to-see cramped areas
Best for Covert Mobile Video Surveillance Gadget

The world’s smallest encased color camera is ideal for Covert applications, Scientific studies,
Robotic eye,
Lab Research Video
, Automobile Engine Room Inspection, Police Raid Video, Insect Observation
Electronic Cable Box Inspection, Narrow Pipe Inspection, Hidden Nanny Cam, Covert Spy Video, Mobile Video

Ideal for covert applications, scientific studies, RC toys, Robotics eye, etc.




click to enlarge...              click to enlarge...






Our Price $50 off >

US$299.00

Regular Price >

US$349.00

Item#

ECC-106

Description

Fingertip Size Tiny Covert Camera

Imaging Specifications

Color

Yes

TV System

NTSC

Day Night

No

Imager Size (in)

1/4

Imager Type

CMOS

IR Sensitive

No

Lines

400 TV

Number of Effective Pixels

656 x 492 (NTSC)

Scanning System

2:1 Interface

Synchronization

Internal

Lux

1.5 @ F1.2

S/N Ratio

More than 45dB

Electric Shutter

1/50 ~ 1/57,000

Horizontal Sync Frequency

15,734KHz (NTSC)

Vertical Sync Frequency

60Hz (NTSC)

Gamma Consumption

0.45

Lens Specifications

Lens

Pinhole Lens

Focal Length

3.1mm

FOV

F3.4

Viewing Angle

55 Degree

Physical Characteristics

Connectors

click to enlarge...RCA Video Jack & Universal CCTV DC Cable jack

Mounting Bracket Included

No

Outdoor

No

Vandalproof

No

Storage Temperature

-30°C ~ 60°C

Operation Temperature

-10°C ~ 45°C

Dimension

8.6mm x 8.6mm (Camera head only)

Power Specification

Amps Consumption

60mA

Output DC Voltage

3.3V

Input DC Voltage

5 ~ 12V

DC Regulator

Built-in

Others

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

Camera Head w/ Connection Cable Set, AC/DC Power Supply
*Specifications, parts, design may can be modified without prior notice.
