Law Enforcement Quality DC Power Connector Shape Covert Video Camera

Ideal for Undetected Covert Video Surveillance & to view Unreachable cramped areas
Best for Hidden Surveillance & Electronic Inspection

Super high quality endoscopic video camera concealed inside the DC power connector and not only used
for
Covert surveillance gadget but also used for Scientific studies, Robotic eye,
Lab Research Video
, Automobile Engine Room Inspection, Police Raid Video, Insect Observation
Electronic Cable Box Inspection, Narrow Pipe Inspection, Hidden Nanny Cam, Covert Spy Video, Mobile Video

Advanced technology allows to adjust viewing angles simply turning the tip of the connector





click to enlarge...             click to enlarge...






Our Price $50 off >

US$349.00

Regular Price >

US$399.00

Item#

ECC-107

Description

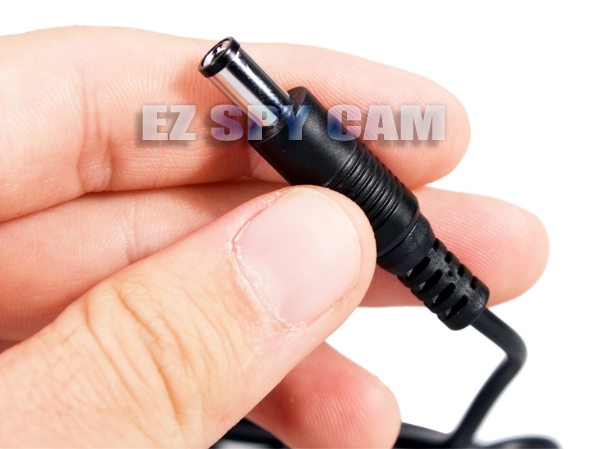

DC Power Connector Shape Covert Camera

Imaging Specifications

Color

Yes

TV System

NTSC

Day Night

No

Imager Size (in)

1/18

Imager Type

CMOS

IR Sensitive

No

Video Resolution

Super High 480TVL

Number of Effective Pixels

640 x 480 (NTSC)

Scanning System

2:1 Interface

Synchronization

Internal

Lux

4V (Lux/Sec) @ F2.8

S/N Ratio

More than 36dB

Electric Shutter

1/50 ~ 1/57,000

Horizontal Sync Frequency

15,734KHz (NTSC)

Vertical Sync Frequency

60Hz (NTSC)

Gamma Consumption

0.45

Lens Specifications

Lens

Micro Lens

Focal Length

2.8mm

FOV

F2.8

Viewing Angle

60 Degree

Physical Characteristics

Cable Connectors

click to enlarge...3-Ring A/V Stereo or RCA AV & DC Power

Mounting Bracket Included

No

Outdoor

No

Vandalproof

No

Storage Temperature

-30C ~ 60C

Operation Temperature

-10C ~ 45C

Dimension

5.6mm x 46mm (Camera head only)

Power Specification

Amps Consumption

110mA

Output DC Voltage

5V

Input DC Voltage

9 ~ 12V

DC Regulator

Built-in

Others

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

Camera Head w/ Cable, RCA AV-DC Power Cable, 9V Battery Holder, AC/DC Power Supply
*Specifications, parts, design may can be modified without prior notice.
