Micro Snake Head Waterproof USB Bullet Camera w/ White LED Light Built-in

Great optical tool for inspecting Total dark Unreachable cramped space & Toxic liquid filled area

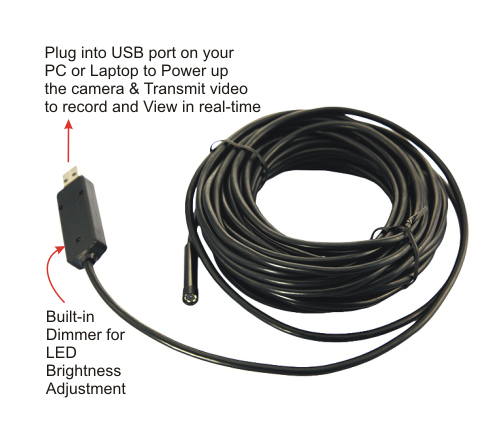

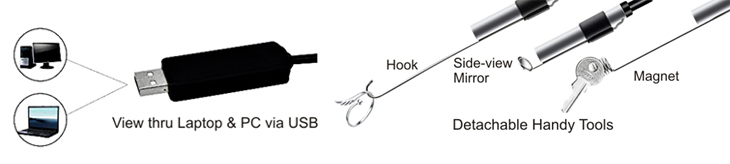

Instant Real-time view & record on your PC or Laptop via USB connection

No additional DC power required & Power supplied from PC via USB connection
For viewing inside Electronic equipment, Liquid filled equipment, Car engine compartment, Sewage pipe
Cramped machinery, Vending machine, Plumbing pipeline, Medical Equipment, Boat engine room, Gas tank, etc.

Great application for Building your own surveillance gadget, Scientific studies, Robotic eye,
Lab Research Video, Automobile Engine Room Inspection, Police Raid Video, Insect Observation
Electronic Cable Box Inspection, Narrow Pipe Inspection, Hidden Nanny Cam, Covert Spy Video, Mobile Video

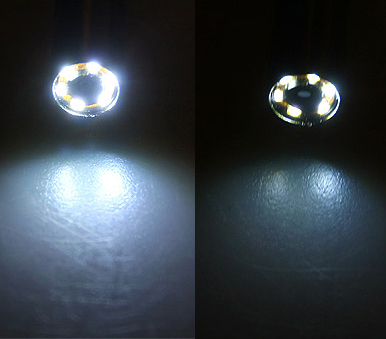

Brightness adjustable White LED to prevent White Glow Effect when viewing close objects

Miniature Snake Head Endoscope Inspection CameraMicro Slip USB Endoscope Video w/ LED Light micro snake head pipeline USB inspection video camera

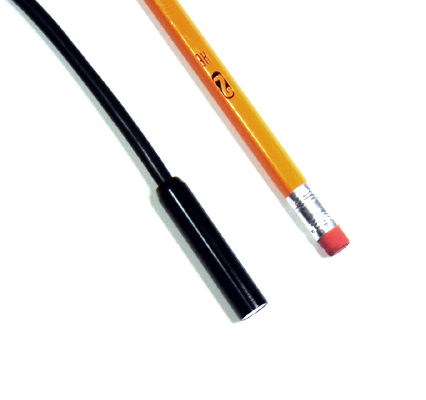

Camera Head sizes only 9 x L70mm (0.35" x 2.75") that assembled on a cable length up 33ft






LED light USB waterproof camera                           White LED Light USB snake head inspection camera



Camera Head sizes 14 x L100mm (0.55" x 3.95") that assembled on a cable length 100ft or 120ft







Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price



Item#

ECC-108A  ---Stock to built-in house & ships out within 3~10 working days---

Description

USB Waterproof Bullet Camera w/ White LED on 6.5ft Cable

Item#

ECC-108B  ---Stock to built-in house & ships out within 3~10 working days---

Description

USB Waterproof Bullet Camera w/ White LED on 16ft Cable

Item#

ECC-108C  ---Stock to built-in house & ships out within 3~10 working days---

Description

USB Waterproof Bullet Camera w/ White LED on 23ft Cable

Item#

ECC-108D  ---Stock to built-in house & ships out within 3~10 working days---

Description

USB Waterproof Bullet Camera w/ White LED on 33ft Cable

Item#

ECC-108E  ---Stock to built-in house & ships out within 7~15 working days---

Description

USB Waterproof Bullet Camera w/ White LED on 100ft Cable

Item#

ECC-108F  ---Stock to built-in house & ships out within 7~15 working days---

Description

USB Waterproof Bullet Camera w/ White LED on 130ft Cable

Specification: *Subject to change without prior notice

Image Sensor

CMOS Color

Imager Size (in)

1/6"

Video Resolution

* Cable Length up to 33ft: 800x600, 1024x768, 1280x720, or 600x1200 at 30fps
* Cable Length longer than 100ft: 800x600 pixels at 30fps

Still Photo Shooting

Yes in JPEG format

Light Type

Super Bright Micro White LED

Light Range

* Cable Length up to 33ft: 10ft
* Cable Length longer than 100ft: 8ft

Supported OS

Windows 2000 / XP / Vista / Win7

Required System

Intel Pentium III Processor or above, 128M RAM or above, Least one USB port

Lens Specifications

Lens

Micro Lens

Focal Length

2.8mm

FOV

F2.8

Viewing Angle

60 Degree

Physical Characteristics

Interface

USB 2.0

Housing Protection Level

IP-67 (Protected against temporarily immersion in water)

Storage Temperature

-30C ~ 60C

Operation Temperature

-10C ~ 45C

Dimension

* Cable Length up to 33ft: 9mm x L70mm (Camera head only)
* Cable Length longer than 100ft: 14mm x L100mm (Camera head only)

Power Specification

Amps Consumption

Max. 150mA

Input DC Voltage

DC5V via USB port

Others

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

Camera Head on Selected Length of USB Cable, Video Editing Software, Instruction
