Day Night Micro OSD PC Board Cam w/ 950nm Invisible IR LED & 0.0008 LUX

Ideal for Research or Spy Video Surveillance in Total Darkness

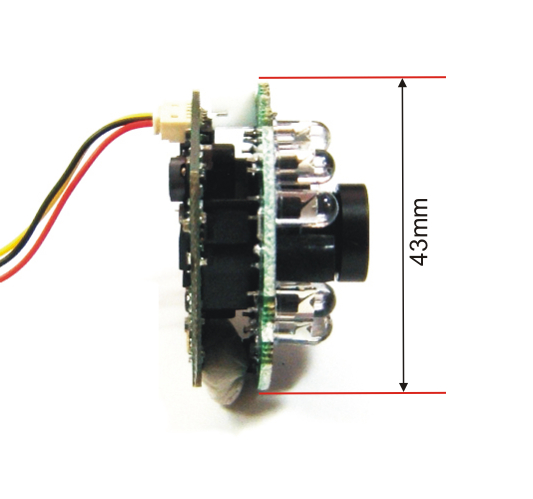

This self illuminated tiny micro CCTV camera equipped with
extreme low starlight sensitivity that allows the camera lens to see in
the total darkness with no lighting support and night skylines are viewed as seen at early dawn.


The built-in 950nm invisible IR light is not seen by human or animal eyes so it is
perfect for building your own complete disguised video surveillance gadget for security or scientific research.

No Red Glow on the tip of IR-LED so Totally Undetected & Unseen in the dark



click to enlarge...


Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price

Item#

ECC-200AA   ---Preorder to built in house & ships out within 3~5 working days---

Description

Micro Board Camera w/ 15ft Range Invisible IR LED & 2.1mm Board Lens

Item#

ECC-200AB   ---Preorder to built in house & ships out within 3~5 working days---

Description

Micro Board Camera w/ 15ft Range Invisible IR LED & 3.6mm Board Lens

Item#

ECC-200AC   ---Preorder to built in house & ships out within 3~5 working days---

Description

Micro Board Camera w/ 15ft Range Invisible IR LED & 4.0mm Board Lens

Item#

ECC-200AD   ---Preorder to built in house & ships out within 3~5 working days---

Description

Micro Board Camera w/ 15ft Range Invisible IR LED & 8.0mm Board Lens

Item#

ECC-200AE   ---Preorder to built in house & ships out within 3~5 working days---

Description

Micro Board Camera w/ 15ft Range Invisible IR LED & 16mm Board Lens

Item#

ECC-200AF   ---Preorder to built in house & ships out within 3~5 working days---

Description

Micro Board Camera w/ 15ft Range Invisible IR LED & 25mm Telephoto Board Lens



Image Sensor

Sony 1/3" Super HAD (HQ) Color CCD w/ High Performance NextChip ISP

Signal System

NTSC

Click the right photos to view Real Video Clips

click to play...<<< Viewed in the complete darkness that taken w/ built-in Invisible IR-LED light & 4.0mm board lens on. Recorded with EMT-600 portable DVR monitor

click to play...<<< Plants viewed w/ built-in IR LED light & 4.0mm board lens on. Recorded with EMT-600 portable DVR monitor

click to play real video clip...<<< Harbor entrance viewed w/ 16mm board lens on at night and observed how viewing objects effect when spot lightened w/ ENC-907C long invisible range IR illuminator. Recorded w/ EMT-600 portable DVR monitor

click to play...<<< Street video taken w/ 2.1mm board lens on & recorded w/ EMT-600 portable DVR monitor

Lens

2.1mm to 25mm Telephoto Lens

Day Visibility

1 inches from the camera to infinity

LED

Invisible 950NM IR LEDs

LED Control

Auto on/off by CdS sensor built-in

LED Beam Distance

15ft in the total darkness

Focusable Distance

1mm ~ Infinity by turning the camera lens clockwise or counterclockwise manually

Video Resolution

700TVL

Video Out Signal

Composite Video: 1.0V p-p

Video In Connector

BNC Jack

Power Consumption

DC 12V±1V / 150mA

Minimum Illumination

0.0008 Lux

Weight

1.0oz (28gr)

Board Dimension

32mm x 32mm, 34mm x 34mm, or 38mm x 38mm

Operating Temp

-5șC ~ 50șC / RH95% Max

Storage Temp

-15șC ~ 60șC / RH95% Max

Operation Environment

Indoor use only

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

AC/DC 12V Power Supply, Video Power Cable Set, Quick Starter

Special Note

*Hardware specifications may change without prior notice...
