Encased Micro CCTV PC Board Cam w/ Brightness Adjustable IR Light & OSD Control

Ideal for Undetected Wildlife Observation, Lab Research, or Spy Video Surveillance in Total Darkness

This self illuminated tiny micro CCTV camera equipped with built-in Strong IR-LED Light that allows the
camera lens to see in the total darkness  with no external lighting support and
built-in Smart-IR & Brightness
Adjustable IR Light prevent white glow effects especially when viewing objects that are close to the camera lens


The built-in IR light is not seen by human or animal eyes so it is perfect for building your own
disguised video surveillance gadget for wildlife observation, hidden covert security, or scientific research

Smart IR & Brightness Adjustable IR Light to prevent White Glow effects in video



click to enlarge...click to enlarge...click to enlarge...


click to enlarge....click to enlarge....click to enlarge....

click to enlarge...click to enlarge...


Item#

ECC-200BA   ---Preorder to built in house & ships out within 2~3 working days---

Description

Encased Micro IR Board Camera w/ 2.5mm Board Lens & 850NM Strong IR LED

Item#

ECC-200BB   ---Preorder to built in house & ships out within 2~3 working days---

Description

Encased Micro IR Board Camera w/ 3.6mm Board Lens & 850NM Strong IR LED

Item#

ECC-200BC   ---Preorder to built in house & ships out within 2~3 working days---

Description

Encased Micro IR Board Camera w/ 4.0mm Board Lens & 850NM Strong IR LED

Item#

ECC-200BD   ---Preorder to built in house & ships out within 2~3 working days---

Description

Encased Micro IR Board Camera w/ 12mm Board Lens & 850NM Strong IR LED

Item#

ECC-200BE   ---Preorder to built in house & ships out within 2~3 working days---

Description

Encased Micro IR Board Camera w/ 16mm Board Lens & 850NM Strong IR LED

Item#

ECC-200BF   ---Preorder to built in house & ships out within 2~3 working days---

Description

Encased Micro IR Board Camera w/ 25mm Telephoto Board Lens & 850NM Strong IR LED

Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price

Item#

ECC-200CA   ---Preorder to built in house & ships out within 2~3 working days---

Description

Encased Micro IR Board Camera w/ 2.5mm Board Lens & No Red Glow 940NM IR LED

Item#

ECC-200CB   ---Preorder to built in house & ships out within 2~3 working days---

Description

Encased Micro IR Board Camera w/ 3.6mm Board Lens & No Red Glow 940NM IR LED

Item#

ECC-200CC   ---Preorder to built in house & ships out within 2~3 working days---

Description

Encased Micro IR Board Camera w/ 4.0mm Board Lens & No Red Glow 940NM IR LED

Item#

ECC-200CD   ---Preorder to built in house & ships out within 2~3 working days---

Description

Encased Micro IR Board Camera w/ 12mm Board Lens & No Red Glow 940NM IR LED

Item#

ECC-200CE   ---Preorder to built in house & ships out within 2~3 working days---

Description

Encased Micro IR Board Camera w/ 16mm Board Lens & No Red Glow 940NM IR LED

Item#

ECC-200CF   ---Preorder to built in house & ships out within 2~3 working days---

Description

Encased Micro IR Board Camera w/ 25mm Telephoto Lens & Red Glow 940NM IR LED

Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price

Features

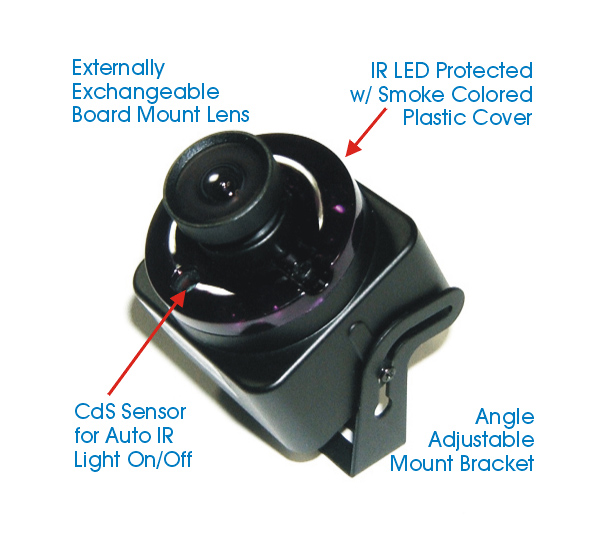

  • Smart-IR or Brightness Adjustable LED Light to prevent white glow effects

  • 600TVL ultimate video resolution w/ 1/3 inch Color Sony Super HAD CCDll

  • CdS sensor built-in for Automatic Turn on/off IR LED & 0.1 LUX low light sensitivity

  • Built-in +12V regulator for extensive life span of LED & Plastic cover protected LED

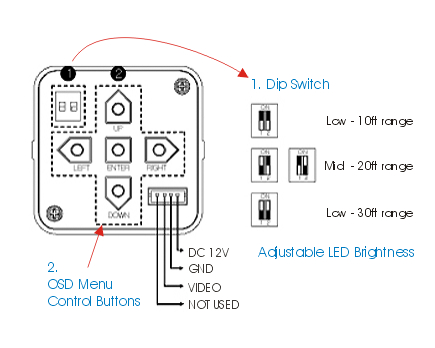

  • Adjustable functions via easy OSD menu setting & Dip switch to adjust LED brightness

Click the right photos to view Real Video Clips

click to play...<<< Viewed in the complete darkness that taken w/ built-in IR-LED light & 4.0mm board lens on. Recorded with EMT-600 portable DVR monitor

click to play...<<< Plants viewed w/ built-in IR LED light & 4.0mm board lens on. Recorded with EMT-600 portable DVR monitor

click to play real video clip...<<< Harbor entrance viewed w/ 16mm board lens on at night and observed how viewing objects effect when spot lightened w/ ENC-907C long invisible range IR illuminator. Recorded w/ EMT-600 portable DVR monitor

click to play...<<< Street video taken w/ 2.5mm board lens on & recorded w/ EMT-600 portable DVR monitor

Image Sensor

Sony 1/3" Super HAD Color CCD ll

Signal System

NTSC or PAL

Lens

2.5mm to 25mm Telephoto Lens

LED

8 Strong 850NM or No Red Glow 940NM Total Invisible IR LED

Light Travel Distance

30ft w/ ECC-200B & 15ft w/ ECC-200C series in the total darkness at the max. brightness

CdS Sensor

Makes LEDs turn on-off at about 10 LUX automatically

Day Visibility

1 inches from the camera to infinity

Focusable Distance

1mm ~ Infinity by turning the camera lens clockwise or counterclockwise manually

Video Resolution

Ultimate 600TVL in Color

Effective Pixels:

NTSC --- 768(H) x 494(V) / PAL --- 752(H) x 582(V)

Video Out

1.0 Vp-p (Sync. Negative) Termination 75+10%

Video Connector

BNC Jack

Minimum Illumination

0.1 LUX in Color Daylight

Electronic Shutter

NTSC=1/60~1/100,000/Sec : PAL=1/50~1/100,000/Sec

S/N Ratio

Over 48dB at AGC off

Sync. Type

Internal

Gamma Characteristic

Y= 0.45typ

Scanning System

2:1 Interlace

OSD Adjustable Functions

Lens Shading Compensation, High Light Mask, E-Day Night (Auto, Color, B&W), DWDR, Backlight (DWDR, BLC, HLC, Off), White Balance (ATW, AWC, Manual), AGC, Motion Detection, Mirror Image, etc.

Special Hardware Features

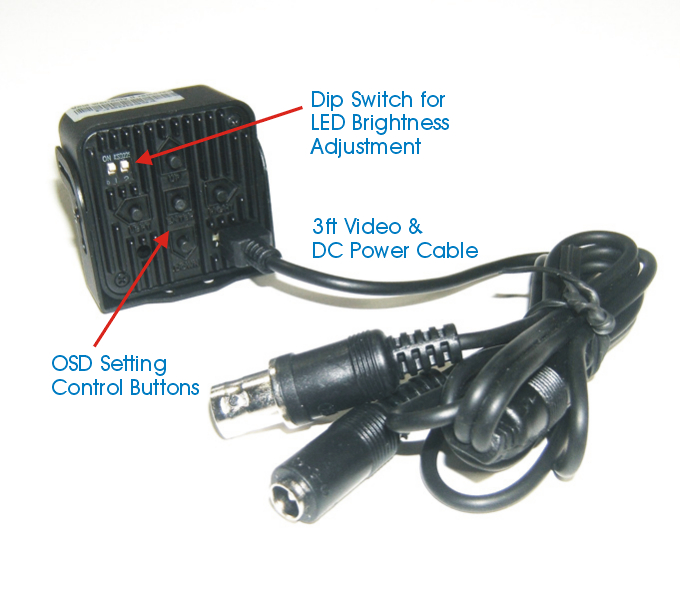

LED Brightness Adjustable Dip Switch, OSD Control Buttons, Smart IR, Reverse Polarity Protection, CdS sensor for Auto IR-LED On/Off, etc.

Weight / Dimension

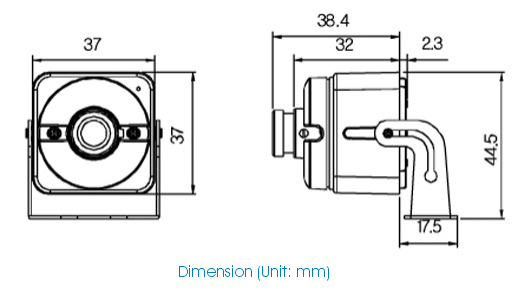

1.8oz (50g) / 37mm x 37mm x 32mm (1.46 x 1.46 x 1.26")

Power Supply

DC12V10%

Power Consumption

250mA when LED on at Highest Level

Operating
Temperature

-10C ~ 50C

Storage
Temperature

-20C ~ 60C

Humidity

RH 95% Max.

Warranty

One Year Full Warranty including Parts & Labor

Operation Environment

Indoor use only

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

Camera Unit w/ Mount, AC/DC 12V Power Supply, Video Power Cable Set, Quick Starter
