Item#
|
ECC-800HQA
---Stock to built in house & ships out within
3 working
days---
|
Description
|
0.00008 LUX Extreme Low-Light Micro Board Cam
w/ OSD Control Built-in & 2.1mm Board Lens
|
Item#
|
ECC-800HQB
---Stock to built in house & ships out within
3 working
days---
|
Description
|
0.00008 LUX Extreme Low-Light Micro Board Cam
w/ OSD Control Built-in & 4.0mm Board Lens
|
Item#
|
ECC-800HQC
---Stock to built in house & ships out within
3 working
days---
|
Description
|
0.00008 LUX Extreme Low-Light Micro Board Cam
w/ OSD Control Built-in & 8.0mm Board Lens
|
Item#
|
ECC-800HQD
---Stock to built in house & ships out within
3 working
days---
|
Description
|
0.00008 LUX Extreme Low-Light Micro Board Cam
w/ OSD Control Built-in & 16mm Board Lens
|
Item#
|
ECC-800HQE
---Stock to built in house & ships out within
3 working
days---
|
Description
|
0.00008 LUX Extreme Low-Light Micro Board Cam
w/ OSD Control Built-in & 25mm Telephoto
Board Lens
|
|
Sensor
|
Sony
1/3" Super HAD
(HQ) Color
CCD w/ High Performance
NextChip ISP
|
Signal
System
|
NTSC
(*PAL
optionally available w/ an order quantity over 10 or more units)
|
Click
the right photos to view Real Video Clips
|
<<<
Night parking lot viewed w/ 3.6mm board lens on & no external lighting support.
Recorded w/ EMT-600
portable DVR monitor
|
<<<
Indoor video taken w/ 2.1mm board lens on & recorded with EMT-600
portable DVR monitor
|
<<<
Harbor
seawall and entering boat viewed at night under the moonlight w/ 16mm
board lens on & recorded w/
EMT-600
portable DVR monitor
|
<<<
Day
video taken
w/ 2.1mm board lens on & recorded w/ EMT-600
portable DVR monitor
|
<<<
It
begins adjusting the low light gain control when the room light is
turned off and slowly starts seeing all objects in the total darkroom
just using mere starlight source permeated through gaps of the window
blinds.
|
Lens
|
Selectable
from 2.1mm to 25mm Telephoto Lens & Pinhole Lens in Flat or
Conical Shape
(* Pinhole lens in conical or flat type available w/ MOQ & Extra
Fee)
|
Day
Visibility
|
1
inches from the camera to infinity
|
Focusable
Distance
|
1mm
~ Infinity by turning the camera lens clockwise or counterclockwise
manually
|
Video
Resolution
|
650TVL (410K pixel)
|
Video
Out Signal
|
Composite
Video: 1.0V p-p
|
Video
In Connector
|
BNC
Jack
|
Power
Consumption
|
DC
12V±1V
/ 150mA
|
Minimum
Illumination
|
0.0001
Lux Starlight Sensitivity ~ 0.00008 Lux @ Max. Sense-up x256
|

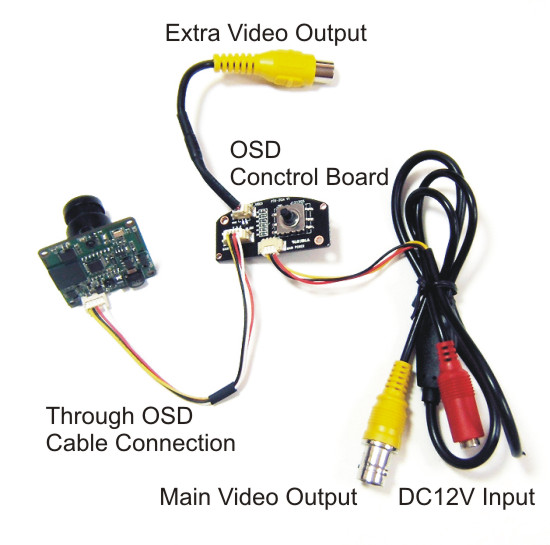

OSD
Adjustable Settings
|
Lens
Type (Manual or DC for Auto Iris), Exposure (Shutter Speed,
Brightness, AGC, DSS (Digital Shutter Speed Sens-Up up to x256 or off,
BLC, HS-BLC, WDR,
White Balance (ATW / AWB /
Manual), Day Night (Color, Auto), 3D-DNR,
etc...)
|
Special
OSD Settings
|
Camera
Title, D-Effect (Freeze, Mirror Image, Gamma, Neg. Image),
Motion Activation, Privacy, Digital Zoom up to x10, HLM (High Light
Masking), etc...
|
Weight
/ Dimension
|
0.8oz
(23gr) /
Board Size: 42mm x 42mm (Dual mountable at 38x38mm)
|
Operating
Temp
|
-10șC
~ 50șC / RH95% Max
|
Storage
Temp
|
-20șC
~ 70șC / RH95% Max
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
Camera
Set Includes
|
AC/DC
12V Power Supply, Video Power Cable Set, Quick Starter
|
Special
Note
|
*This
camera never should be installed outdoor and
exposed under heavy storm or
harsh raining environment, unless it is encased or insulated
completely with waterproof materials.
|
