Item#
Series
|

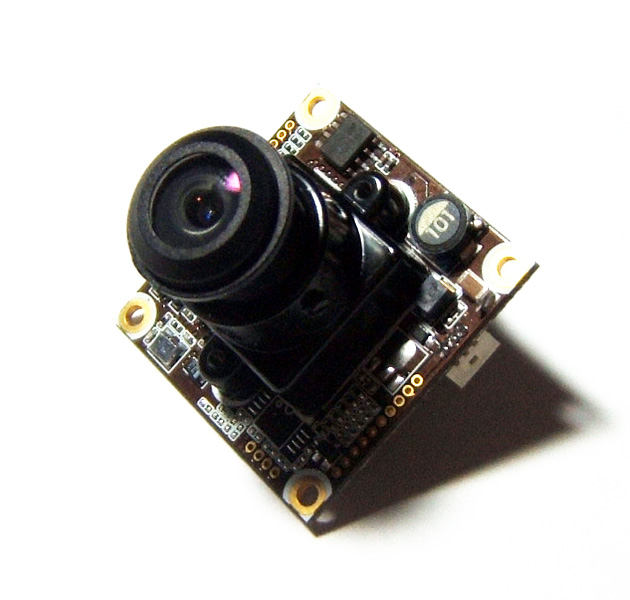

ECC-800HQA
|
|
Description
|
0.00008 LUX Extreme Low-Light Micro Board Cam
w/ OSD Control Built-in & 2.1mm Board Lens
|
|
Item#
Series
|
ECC-800HQB
|
|
Description
|
0.00008 LUX Extreme Low-Light Micro Board Cam
w/ OSD Control Built-in & 4.0mm Board Lens
|
|
Item#
Series
|
ECC-800HQC
|
|
Description
|
0.00008 LUX Extreme Low-Light Micro Board Cam
w/ OSD Control Built-in & 8.0mm Board Lens
|
|
Item#
Series
|
ECC-800HQD
|
|
Description
|
0.00008 LUX Extreme Low-Light Micro Board Cam
w/ OSD Control Built-in & 16mm Board Lens
|
|
Item#
Series
|

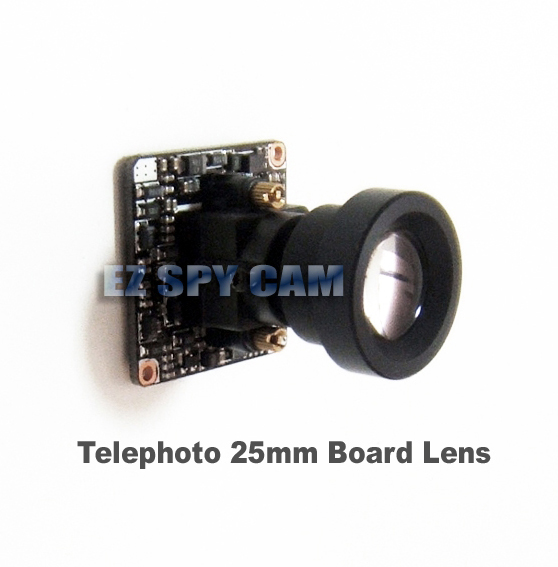

ECC-800HQE
|
|
Description
|
0.00008 LUX Extreme Low-Light Micro Board Cam
w/ OSD Control Built-in & 25mm Telephoto
Board Lens
|
|
Item#
Series
|
ECC-800HQ-PC
|
|
Description
|
0.00008 LUX Extreme Low-Light Micro Board Cam
w/ OSD Control Built-in & 3.7mm Conical
Pinhole Lens
|
|
Item#
Series
|
ECC-800HQ-PF
|
|
Description
|
0.00008 LUX Extreme Low-Light Micro Board Cam
w/ OSD Control Built-in & 3.7mm Flat Pinhole
Lens
|
|
|
|
Sensor
|
Sony
1/3" Super HAD
(HQ) Color
CCD w/ High Performance
NextChip ISP
|
|
Signal
System
|
NTSC
for USA, Canada, Asian countries etc...
(*Optional: PAL for
Eastern Europe & France, etc...)
|
|
Click
the right photos to view Real Video Clips
|
 <Video
in Total Darkness  <Video
in Daylight
|
|
Lens
|
Selectable
from 2.1mm to 25mm Telephoto Lens & Pinhole Lens in Flat or
Conical Shape
|
|
Day
Visibility
|
1
inches from the camera to infinity
|
|
Focusable
Distance
|
1mm
~ Infinity by turning the camera lens clockwise or counterclockwise
manually
|
|
Video
Resolution
|
550TVL (410K pixel)
in Color & 600TVL in B&W
(440K pixel)
|
|
Video
Out Signal
|
Composite
Video: 1.0V p-p
|
|
Video
In Connector
|
BNC
Jack
|
|
Power
Consumption
|
DC
12V±1V
/ 150mA
|
|
Minimum
Illumination
|
0.0001
Lux Starlight Sensitivity ~ 0.00003 Lux @ Max. Sense-up x256
|
|
OSD
Adjustable Settings
|
Lens
Type (Manual or DC for Auto Iris), Exposure (Shutter Speed,
Brightness, AGC, Sens-Up x256, BLC, HS-BLC,
D-WDR), White Balance (ATW / AWB /
Manual), Day Night (Color, Auto), 3D-DNR,
etc...)
|
|
Special
OSD Settings
|
Digital
Zoom x10, Camera

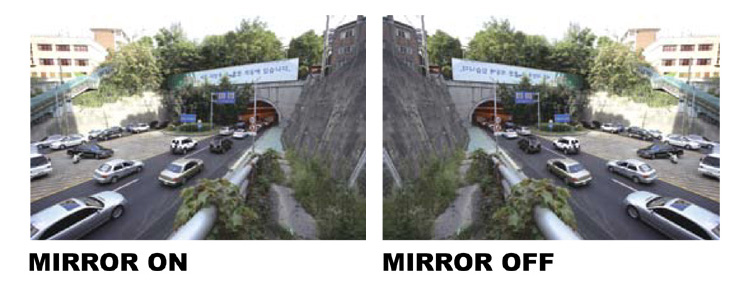

Title, D-Effect (Freeze, Mirror Image, Gamma, Neg. Image),
Motion Activation, Privacy, etc...
|
|
Weight
/ Dimension
|
0.8oz
(23gr) / W32xL32xD25mm (1.25"x1.26"x1.37")
- Camera only
|
|
Operating
Temp
|
-5șC
~ 50șC / RH95% Max
|
|
Storage
Temp
|
-15șC
~ 60șC / RH95% Max
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|

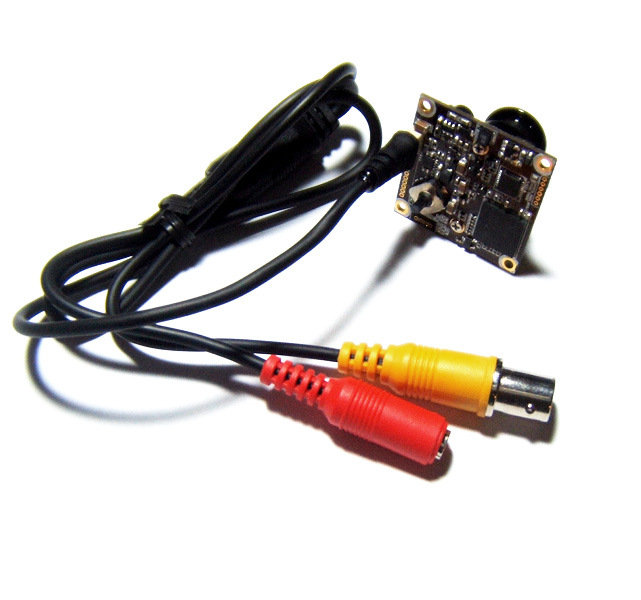

Camera
Set Includes
|
AC/DC
12V Power Supply, Video Power Cable Set, Full Manual on CD, Quick Starter
|
|
Special
Note
|
*This
camera never should be installed outdoor and
exposed under heavy storm or
harsh raining environment, unless it is encased or insulated
completely with waterproof materials.
|
