Item#
|
ECC-900
|
|
Description
|
Ultra
High 540TVL Video & Super Sensitive 0.002 LUX Micro Metal Encased Cam w/
OSD
|
|
Sensor
|
Sony
1/3" Super HAD
Color
CCD
|
|
Lens
|
3.7mm

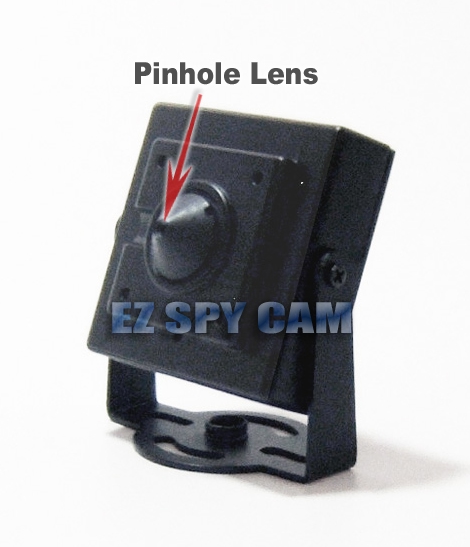

Super Conical Pinhole Lens (FOV:
90º
Diagonally)
|
|
Signal
System
|
NTSC
for USA, Canada, Asian countries etc...
(*Optional: PAL for
Eastern Europe & France, etc...)
|
|
Viewing
Angles
|
Refer the left pic of the viewing angle comparison to know how large
area the applicable lens can see and click the following link to
review the FOV
comparison of all applicable lenses.
http://www.ezspycam.com/R-img-FOV-variation.htm
|
|
Day
Visibility
|
 3
inches from the camera to infinity.
Click the left image to play the video clip sample.
Also click the following link or paste it to your web
browser to re view all available night vision image samples.
http://www.ezspycam.com/R-img-daynightvision.htm
|
|
Night
Vision in
Light supporting
of IR Illuminator
|
Click the left image to play the video clip sample.
Also click the following link or paste it to your web
browser to re view all available night vision image samples.
http://www.ezspycam.com/R-img-daynightvision.htm
|
|
Video
Resolution
|
540
TVL (410K pixel)
|
|
Video
Out Signal
|
Composite
Video: 1.0V p-p
|
|
Video
In Connector
|
BNC
Jack
|
|
Scanning
Frequency
|
15.734KHz
(H) 59.94Hz(V)
|
|
S/N
Ratio
|
More
than 50dB (AGC Off)
|
|
Power
Consumption
|
DC
12V±1V
/ 130mA
|
|
Minimum
Illumination
|
0.002
LUX in B&W at Night / 0.01 LUX in Color Day Time
|
|
Weight
/ Dimension
|
1.8oz
- Camera only
/ W34xL34xD20mm
|
|
Operating
Temp
|
-10ºC
~ 50ºC / RH95% Max
|
|
Electronic
Shutter
|
1/60~1/100,000/Sec
|
|
Special
Feature
|
Auto
White Balance (AWB) / Auto Gain
Control (AGC) / Day Night
Function, etc.
|
|

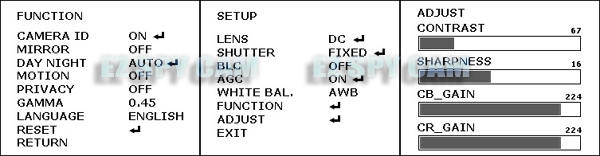

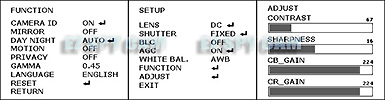

OSD
Menu Settings
|
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|
Camera
Set Includes
|
AC/DC
12V Power Supply, Video Power Cable Set, Quick Starter
|
|
Special
Note
|
*This
camera never should be installed outdoor and
exposed under heavy storm or
harsh raining environment, unless it is encased or insulated
completely with waterproof materials.
|
