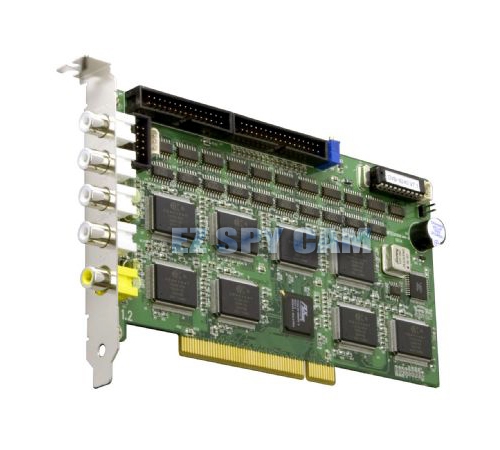

16-CH Real-time Video Capture Card w/ 240fps Recording & Display
16 channel video input, 8 channel audio input, MPEG4 high compression CODEC
Remote client viewing on either client software or web browser / Built-in Motion Detector
Multi DVR viewer (MDVR) up to 64 channels on a client / 640480/640240/320240 Resolution
Windows XP (Sever software) / Vista Compatible (Client software) / TV spot out (switching, RCA)




click to enlarge...                     click to enlarge...



Our Price $50 off >

US$549.00

Regular Price >

US$599.00

Item#

ECD-U1624

Description

16 CH Realtime Video Capture Card w/ 240fps Recording & Display

Features:

It supports up to 16 video channels with a crystal clear high-res picture quality and a maximum 240 frames per second. The high compression MPEG4 CODEC provides more recording time with same size hard disk drive than previous MJPEG CODEC. The built-in video motion detector logic helps the DVR system from storing unnecessary video. By connecting the DVR to the Internet, you are able to view live or archived videos from a remote location. Or you can connect to multiple DVR's from different locations and view them all at the same time.

Camera Input

16 Channel

Audio Input

8 Channel

Loop out

N/A

Spot Monitor Output

1 Port (RCA)

Spot Out Type

Switching

Alarm Output

8

Sensor Input

16

Total Display

240 fps

Total Recording

240 fps

CODEC

MPEG4

Resolution

640480/640240/320240 Resolution

Screen Set

1 / 4 / 7 / 8 / 13 / 16 / Sequential

Triplex Recording

Yes

Network

LAN, Cable, DSL, MODEM (optional)

Remote Viewing

via Client software or Web Browser (Active-X must be enabled)

Backup

Data Transfer / JPEG or BMP Image
Remote site backup / Schedule Backup
AVI standard movie clip (Windows Media Player compatible)

Recording Mode

R : Recording continuously
M : Recording only with motion detection
S : Recording only with sensor detection
H : Recording continuously but higher frame rate recording at motion triggered

PTZ Control

via RS232 Port (RS485 to RS232 Converter required)

Software Included

Server / Client / Backup Viewer / Watermark Viewer / Multi-client Viewer

Includes

Main Board, Video Cables w/ BNC Connectors, CD-ROM including Software & Manual

System Requirement

O/S

Windows 2000 / XP Home Edition / Professional / Vista

CPU

Intel Pentium IV 2.0 Ghz or Up

Chipsets

Intel 845D/850 Board

RAM Memory

Minimum 512MB

Hard Disk Drive

Minimum 120GB

Video Adapter

ATI Xpert 2000 Pro with Minimum 32MB Video Memory

DirectX

DirectX v 8.0 or higher

*If you lost and need to download the latest instruction manual, firmware, or software, please request it via following email, support@EZspyCam.com along w/ your order ID# or Invoice#.
