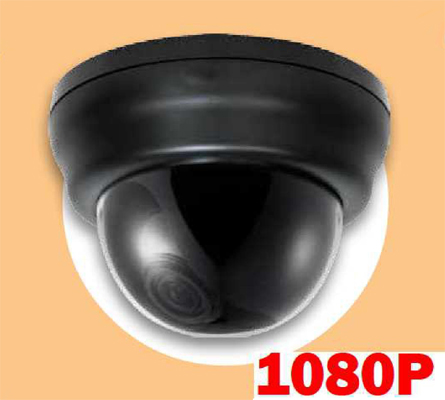

Item#
|
EH-DCR24
--- Preorder to built in house & ships out within
3 working
days---
|
Description
|
HD-SDI
Indoor Varifocal IR Dome Camera w/ 24 IR LEDs & 2.8-12mm MP Lens
|

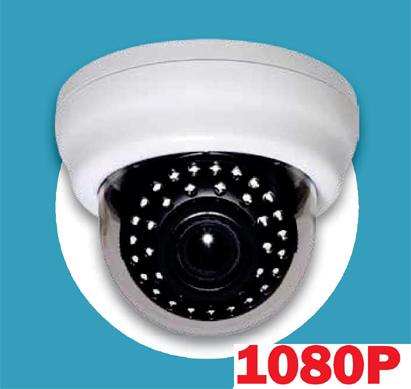

Item#
|
EH-DCR24R
--- Preorder to built in house & ships out within
3 working
days---
|
Description
|
HD-SDI
Indoor Varifocal IR Dome Camera w/ 24 IR LEDs & 2.8-12mm MP Lens
|
Specification:
|
Sensor |
1/3"
Progressive Scan CMOS, 2.2 Megapixel |
Effective
Pixels |
1944(H)
x 1092(V) |
Scanning
System |
Progressive
Scan |
Synchronization
Type |
Internal |
Resolution |
1920x1080 |
S/N |
More
than 50dB(AGC OFF) |
Video
Output |
HD-SDI
(1080P@25/30fps) |
Min.
Illumination |
0 Lux
(LED On) / 1 Lux
(Color) / 0.5 Lux (B/W) / 0.02Lux (Sense-up x60)
|
OSD |
Yes
(English) |
White
Balance |
AWB
/ AWC-SET / MANUAL / INDOOR / OUTDOOR |
Shutter
Speed |
1/30(1/25)~1/50,000sec |
Sense
Up |
AUTO
(Selectable limit 2X~60X) / OFF |
Backlight |
BLC
/ HLC / OFF |
ACCE |
OFF
/ LOW / MIDDLE / HIGH |
AGC |
LOW
/ MIDDLE / HIGH |
DNR(3D) |
2DNR
/ 3DNR / SMART NR |
Privacy
Mask |
ON/OFF
(8 Zone Selectable) |
Motion
Detection |
ON/OFF
(3 Zone Selectable) |
Mirror |
H
/ V / BOTH |
Freeze |
ON
/ OFF |
Digital
Effect |
D-Zoom,
Negative-Image |
Day&Night |
ICR
(AUTO / COLOR / B/W) |
Defog |
OFF
/ LOW / MIDDLE / HIGH |
Blemish
Compensation |
LIVE
DPC / STATIC DPC |
Focal
Length |
f
= 2.8(W) ~ 12.0(T)mm |
Angle
of view (Diagonal) |
128deg
(Wide End), 36deg(Tele End) |
LED |
IR
LED 24EA |
IR
Beam Distance |
60
~ 70ft |
Communication |
Yes(RS-485) |
Camera
ID Setup |
1~255
Selectable |
Baud
rate |
2,400~57,600bps |
Power
Supply |
12V
DC & 24V AC Dual power |
Current
Consumption |
Max.
800mA |
Operation
Temp |
-10
C ~ 50 C |
Preservation
Temp |
-20
C ~ 60 C |
Origin
|
Made
in Korea
|
Includes
|
1-Year Full Warranty, Camera Unit w/ Mount Bracket, AC/DC 12V Power Adapter, Quick Starter
Guide
|
