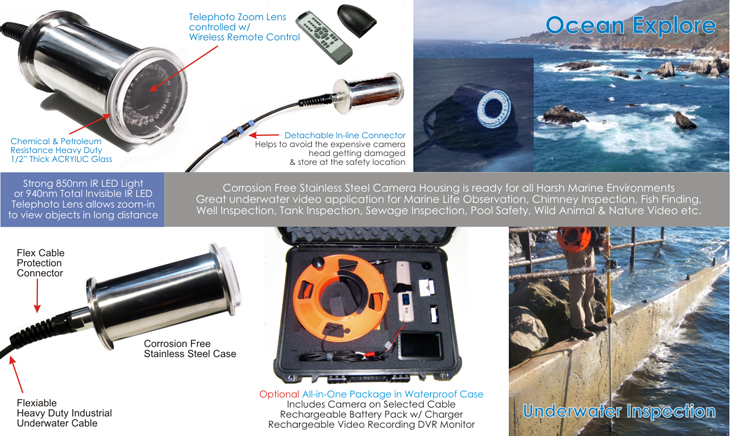

Remote Control Telephoto Zoom HD Underwater Camera w/ IR or White LED Light

Ready for all harsh environments & unreachable impossible-to-see total-dark areas
OK for Saltwater & Chemical Pool /  Long Range Telephoto Video

Underwater Athletic Movement, Boat Inspection, Check anchor set, Marine Life observation
Bridge & Dam inspection, Tank inspection, Docks & pier surveillance, Whale Watch, Fish Search
Search & Rescue, Inspect & Monitor Swimming Pool, Swamps, river, & lake watch, Boat inspection
Underwater farm surveillance, Create videos of Underwater Actions, Check crab pots & lobster traps
Exploring shipwreck & submerged objects, Discover treasure, Cave search, Rain forest watch, Storm Watch

Best to view objects in Super Long range to Zoom-in 30x in Total darkness & Murky water
Full HD Video Underwater PTZ Camera Sysrtem
Connect this underwater surveillance system to your existing PTZ monitoring system
Flexible 5mm Cable for Short Length up to 500ft & Extensive Long Cable Length up to 1,500ft


 "Click below pictures to view Live Video Stream & Compare HD vs Analog"


click to view Live Video...  click to view Live Video...                click to view Live Video...  click to view Live Video...
                       1920 x 1080p Full HD (Live Video @ 15fps)                                   960 x 480p Analog (Live Video @ 30fps)


 "Click below pictures to view Actual Size Still Photo & Compare HD vs Analog"


click to enlarge...  click to enlarge...                click to enlarge...  click to enlarge...
                                1920 x 1080p Full HD (Still Photo)                                           960 x 480p Analog (Still Photo)




Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price



Item#

EH-EUC-7015   ---Preorder to built in house & ships out within 15 working days---

Description

Remote Control Telephoto Zoom HD Underwater Camera on 50ft Cable & White LED

Item#

EH-EUC-7030  ---Preorder to built in house & ships out within 15 working days---

Description

Remote Control Telephoto Zoom HD Underwater Camera on 100ft Cable & White LED

Item#

EH-EUC-7045  ---Preorder to built in house & ships out within 15 working days---

Description

Remote Control Telephoto Zoom HD Underwater Camera on 164ft Cable & White LED

Item#

EH-EUC-7015SR   ---Preorder to built in house & ships out within 15 working days---

Description

Remote Control Telephoto Zoom HD Underwater Camera on 50ft Cable & Strong 850nm IR LED

Item#

EH-EUC-7030SR  ---Preorder to built in house & ships out within 15 working days---

Description

Remote Control Telephoto Zoom HD Underwater Camera on 100ft Cable & Strong 850nm IR LED

Item#

EH-EUC-7045SR  ---Preorder to built in house & ships out within 15 working days---

Description

Remote Control Telephoto Zoom HD Underwater Camera on 164ft Cable & Strong 850nm IR LED

Specification:   *Subject to change without prior notice

Image Sensor

2 Megapixel Image Sensor

Video Signal Type

HD-SDI, HD-CVI, or HD-TVI
*All these three HD types show almost identical HD video quality and one among those will be chosen by our production team defending on the best availability by the time an order is processed and a compatible DVR information to be specified on the included instruction guide.
*When you already have your own HD DVR system, please get a confirmation from our production team if you can order a compatible HD signal type before place an order with us.

Video Output Mode

1080p @ 30fps, 720 @ 60fps (Adjustable upon request)

Effective Pixels

1984(H) x 1105(V)

Unit Cell Size

2.8(H) x 2.8(V)

Video Output

BNC 75ohm+10%

Max. Depth

Maximum depth can be submerged vertically up to 165ft (50M)

Lens

x30 Optical Zoom & x32 Digital Zoom Lens

Focus

Auto, Push, or Manual (Focusable: Appx. 1 inch from the camera lens to infinity)

Focal Length

F1.6~1.8, f=5.1~51mm

Angle of View

H : 54~4.9 , V : 31~4.0

LED Beam Travel Distance in Air

* Bright White LED - Appx. 150ft @ Max. level

* 8
50NM IR LED - Appx. 130~140ft @ Max.

LED Light

* Invisible 940NM or 950NM IR-LED: Shows no red glow on the tip of IR LED when it turned on and the IR light beam is also   completely invisible to human eyes. It is the best for the complete undetected video surveillance and viewing object in close range in the dark.

*
Strong 850NM IR-LED: Shows red glow on the tip of LED when it's on, but the emitting IR-light beam is invisible to human eye and it produces a longer emitting power than the invisible 950NM IR-LED. It is suitable for the undetected surveillance video and viewing objects that are in long range in the dark.

*
White LED:
The white light beam is seen by human eyes exactly same as what you see from a conventional LED flashlight and it it the best when objects are viewed in color at night as they seen in daylight.

Light Control

* White LED --- Turn On-Off manually w/ Separate LED power connector

* IR LED --- Automatically Turned On-Off controlled w/ Built-in CdS Sensor

Minimum Illumination

0.5 Lux (Color) / 0.001Lux (B/W, DSS)

Control Interface

RS-485 w/ VISCA, PELCO-D, & PELCO-P Protocol

Exposure

Auto (CCD iris) or Manual (Switchable)

Electronic Shutter

NTSC=1/60~1/100,000/Sec (28 Steps) ; PAL=1/50~1/100,000/Sec (28 Steps)

Digital Shutter Speed

Off / Max. 2x ~ 512x

Sync. System

Interlock

Luminance S/N Ratio

Over 48dB

OSD Adjustable Camera Functions

Focus Set, AWB SET, Iris Manual Adjust, AGC Manual Adjust, Brightness Adjust, Backlight Set, Flickerless Set, Shutter Speed Set, User Title Set, Sharpness Adjust Set, Motion Detection Set, etc.

Camera Housing

304 Stainless Steel

Special Note:
The 304 stainless steel, which is widely known as a corrosion free metal and excellent resistance to petroleum products and many acids, but constant exposure of the 304 stainless steel to chemicals or water containing high level of Sodium Hypochlorite will cause the chromium component on the surface to dissolve. This permits the free iron in the 304 stainless steel to react with oxygen to form rust.

In order to prevent oxidizing problem for an underwater camera that intend to install especially in a freshwater pool permanently where containing high concentrated Sodium Hypochlorite, the camera housing must be made of a specific durable plastic including Polycarbonate, Polypropylene, PVC, etc. as our EUC-700 underwater camera series, otherwise our one-year full warranty service wont covered if any of our underwater cameras that made of the 304 stainless steel installed in a pool where containing high Sodium Hypochlorite and corroded.

Housing IP Rate

IP-68 (Dust tight & Protected against continuous immersion in water, or specified by the user)

Operation Temp.

-20C ~ 50C

Storage Temp.

-30C ~ 60C

Cable

* Heavy Duty 9~11.5mm PVC Jacket RG5 or RG6

Cable Length

* Selectable from 50ft, 100ft, 150ft, 250ft, 500ft, or
* Customized long cable length available upon on a request
   up to
1,500ft w/ HD-TVI, 1,200ft w/ HD-CVI, & 550ft w/ HD-SDI

Dimension

Φ3" x L7.25" (Camera Head only)

Weight

3LBS 5oz (Camera Head Only)

Power Consumption

DC12V2V/ Less than 4W

Operating
Temperature

-10C ~ 50C (32F ~ 104F) ; Humidity - 10%RH ~ 96%RH

Warranty

One Year Full Warranty including Parts & Labor

Parts Includes

Underwater Camera w/ Selected Cable Length, AC/DC 12V Power Adapter, Remote Control Unit, Quick Starter Guide, Video Recording Monitor w/ Detachable Sunshade & Camera Rechargeable Battery Kit when ordered optionally
