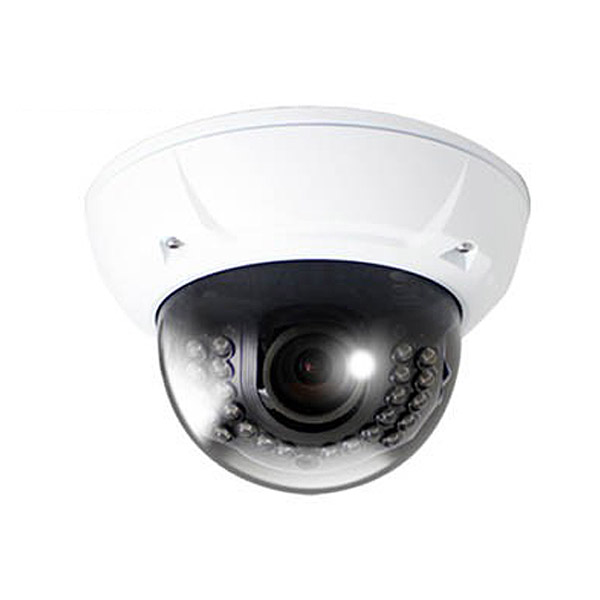

HD-SDI Megapixel Vandalproof IR Dome Camera w/ 24 IR-LED & 2.8 ~ 12mm Varifocal Lens

1/3" CMOS Image Sensor (1080P HD-SDI 2.2 Mega Pixel) / IP-68 Waterproof & Vandalproof
70ft range in total darkness with 24pcs of IR LEDs / 2.8~12mm Varifocal Lens / Dual DC12 ~24V

Defog: Enhances visibility in real-time in fog, dust, lowlight, etc. / 3-Axis adjustable camera viewing angle
DWDR, 3D-DNR, HLC, Sense Up. Day & Night (ICR), & all functions adjusted via Full OSD, RS-485 Interface

Easy Adjustable Varifocal Lens & Easy configuration of all functions via OSD setting



click to enlarfge...





click to enlarge...     click to enlarge...     click to enlarge...







Sale Price $60 off >

US$519.00

Regular Price >

US$579.00

Item#

EH-DCR24  --- Preorder to built in house & ships out within 3 working days---

Description

HD-SDI Vandalproof Varifocal IR Dome Camera w/ 24 IR LEDs & 2.8-12mm MP Lens

Specification:

Image Sensor 1/3" Progressive Scan CMOS, 2.2 Megapixel
Effective Pixels 1944(H) x 1092(V)
Scanning System Progressive Scan
Synchronization Type Internal
Resolution 1920x1080
S/N More than 50dB(AGC OFF)
Video Output HD-SDI (1080P@25/30fps)
Min. Illumination

0 Lux (LED On) / 1 Lux (Color) / 0.5 Lux (B/W) / 0.02Lux (Sense-up x60)

OSD Yes (English)
White Balance AWB / AWC-SET / MANUAL / INDOOR / OUTDOOR
Shutter Speed 1/30(1/25)~1/50,000sec
Sense Up AUTO (Selectable limit 2X~60X) / OFF
Backlight BLC / HLC / OFF
ACCE OFF / LOW / MIDDLE / HIGH
AGC LOW / MIDDLE / HIGH
DNR(3D) 2DNR / 3DNR / SMART NR
Privacy Mask ON/OFF (8 Zone Selectable)
Motion Detection ON/OFF (3 Zone Selectable)
Mirror H / V / BOTH
Freeze ON / OFF
Digital Effect D-Zoom, Negative-Image
Day&Night ICR (AUTO / COLOR / B/W)
Defog OFF / LOW / MIDDLE / HIGH
Blemish Compensation LIVE DPC / STATIC DPC
Focal Length f = 2.8(W) ~ 12.0(T)mm
Angle of view (Diagonal) 128deg (Wide End), 36deg(Tele End)
LED IR LED 24EA
IR Beam Distance 60 ~ 70ft
Communication Yes (RS-485)
Camera ID Setup 1~255 Selectable
Baud rate 2,400~57,600bps
Power Supply 12V DC & 24V AC Dual power
Current Consumption Max. 800mA
Operation Temp -10 C ~ 50 C
Preservation Temp -20 C ~ 60 C

Origin

Made in Korea

Includes

1-Year Full Warranty, Camera Unit w/ Mount Bracket, AC/DC 12V Power Adapter, Quick Starter Guide

Details of Optional Devices

* Touch Screen Remote Control Video Recording & Still Photo Shooting DVR Monitor
*
320 x 480 pixels @ 30fps to 1920 x 1080 pixels @ 30fps
*
Still Photo Shooting in JPEG file
* All functions controlled via Touch Screen menu or included Remote Control Unit
* Motion Activated or Manual recording & Date Time Stamp
* 8GB SD Card included & supports up to 32GB or Built-in 3200GB Micro HDD for
   Extensive Long video recording.
* Click here to review
more product details

* Watertight, Dustproof, Shockproof, Crushproof, Indestructible Equipment Case.
*
Made for professionals or individuals w/ cameras that must have failure proof protection.
* Fit all your equipment including cameras, batteries, lenses, and cables.
* Highly resistant to chemical and built to perform in the most severe conditions.
* Click here to review more product details

* 7hr Capacity at LED Light-on in continuous use
*
Rechargeable NiMH DC 12V Battery Kit
* Auto Control Universal 7~12V Smart Charger included
* Click here to review more product details
