General
Specification
|
|
NETWORK |
Item# |
EIP-002
|
Compression
Format |
MJPEG
/ MPEG4 Simultaneous Output |
|
Protocol |
IP,
ARP, ICMP, TCP, UDP, HTTP, FTP, SMTP |
|
Size |
D1(704x480),
SIF (352X240), QQVGA (164X120) |
|
Frame
Rate |
MJPEG:
Max 30 fps (352x240) / MPEG4: Max 30 fps (704x480) |
|
Client
Access |
Simultaneously
50 clients w/ MJPEG & 3 clients w/ MPEG4 |
|
SYSTEM
REQUIREMENT |
|
Operation
System |
Microsoft
Windows 2000 / XP |
|
Browser |
MS
Internet Explorer 6.0 or later version (Sun JAVA 2SE Ver.1.5.0 or later
version) |
INTERFACE |
|
Analog
Video Output |
BNC
x1 |
|
Ethernet |
10Base-T/100Base-TX
(RJ-45) |
|
Ext.
Control Terminal |
RJ485
(5P), Alarm I/O (6P) |
|
Audio
Input |
3.5mm
Mini Jack |
|
Audio
Output |
RCA
Pin Jack |
|
PAN-TILT |
Pan
Range |
350
degree (Both Left & Right 175 degree) |
|
Tilt
Range |
Up
15 & Down 195 degree |
Pan-Tilt
Speed |
Auto
/ Manual (8-speed Adjustable) |
Preset |
16-way |
CAMERA |
|
TV
System
|
NTSC
|
|
Sensor
|
1/4"
Color CCD
|
|
Resolution
|
410K
(768x494 pixels)
|
|
SYNC.
TYPE
|
Internal
|
|
Min.
Illumination
|
Color:
1 LUX (30 IRE) / B&W: 0.3 LUX (30 IRE)
|
|
White
Balance
|
Auto
/ One-Push / Manual / Indoor Mode / Outdoor Mode / Fluorescent Lamp Mode
|
|
Day
& Night
|
Yes
|
|
BLC
|
On
/ Off
|
|
Lens
Type
|
Powered
12x Optical Zoom & 16x Digital Zoom
|
|
Focal
Length
|
F
= 3.8 ~ 45.6mm
|
|
F
Number
|
F1.6
~ 2.7
|
|
Others
|
Built-in
Motion Detector, Masking, etc...
|
|
Power
|
DC 12V (DC9V~13V)
16W
|
|
Operating
Temp.
|
-10℃~50℃
|
|
Storage
Temp.
|
-20℃~60℃
|
|
Weight
|
Appx.
2.6LBS (1,200g)
|
|

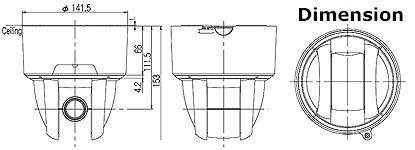

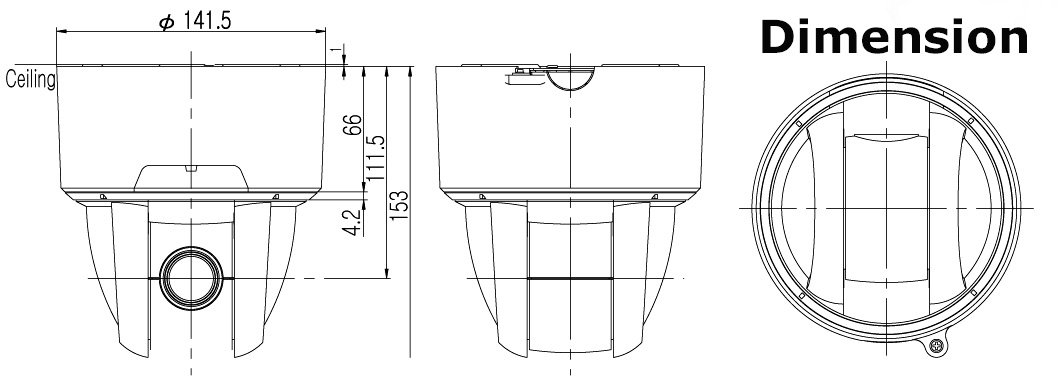

Dimension
|
H153
x Ø141.5mm
|
|
Includes
|
Wireless
Remote Control + 2 AAA Batteries, RS-485 Relay Cable (5P Connector in
White), Alarm In-Out Relay Cable (6P Connector in Black), Cross LAN Cable, Software
CD (1CH Viewer & Manual), Complete Ceiling Mounting Bracket Set,
12V-3.0A AC/DC Power Adaptor, Printed Owner’s Manual.
|
|
Specification
|
* Click
the following link or paste it to you web browser to review
Detailed Specification.
http://www.MegaFosUSA.com/Download/SP-EIP-002.pdf
|
|
Download
|
* Click
the following link or paste it to you web browser to download
Software CD.
|
|
Installation
Guide
|
*Click
the following link or paste to your web browser to
make sure to review Installation Guide.
1-Year warranty will not cover if the
camera or cable malfunctions that
caused by improper
installation.
|
