General
Specification
|
|
NETWORK |
Item# |
EIP-004
|
Compression
Format |
MJPEG
/ MPEG4 Simultaneous Output |
|
Protocol |
IP,
ARP, ICMP, TCP, UDP, HTTP, FTP, SMTP |
|
Size |
D1(704x480),
SIF (352X240), QQVGA (164X120) |
|
Frame
Rate |
MJPEG:
Max 30 fps (352x240) / MPEG4: Max 30 fps (704x480) |
|
Client
Access |
Simultaneously
50 clients w/ MJPEG & 3 clients w/ MPEG4 |
|
SYSTEM
REQUIREMENT |
|
Operation
System |
Microsoft
Windows 2000 / XP |
|
Browser |
MS
Internet Explorer 6.0 or later version (Sun JAVA 2SE Ver.1.5.0 or later
version) |
INTERFACE |
|
Analog
Video Output |
Optional |
|
Ethernet |
10Base-T/100Base-TX
(RJ-45) |
|
Ext.
Control Terminal |
Optional |
|
Audio
Input |
Optional |
|
Audio
Output |
Optional |
CAMERA |
|
TV
System
|
NTSC
|
|
Sensor
|
1/3"
Color CCD
|
|
Resolution
|
410K
(768x494 pixels)
|
|
SYNC.
TYPE
|
Internal
|
|
Min.
Illumination
|
Color:
0.35 LUX (30 IRE) / B&W: 0.045 LUX (30 IRE)
|
|
White
Balance
|
Auto
/ One-Push / Manual / Indoor Mode / Outdoor Mode / Fluorescent Lamp Mode
|
|
Day
& Night
|
Yes
/ Night Vision in the total darkness w/ Built-in IR Illuminator
|
|
BLC
|
Area
Type (5 patterns)
|
|
WDR
|
Yes
(Wide Dynamic Range)
|
|
Lens
Type
|
2.7x
Auto Iris Varifocal Lens & 2.5x Digital Zoom (Only at WD-off)
|
|
Focal
Length
|
F
= 2.9 ~ 8.0mm
|
|
F
Number
|
F0.95
~ 1.8
|
|
Others
|
Built-in
Motion Detector
|
|
Power
|
DC 12V (DC9V~13V) 7.5W
|
|
Housing
|
IP-66
rated Weatherproof
|
|
Operating
Temp.
|
-10℃~50℃
|
|
Storage
Temp.
|
-20℃~60℃
|
|
Weight
|
Appx.
3.9LBS (1,800g)
|
|

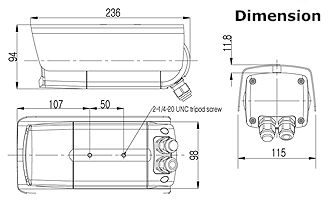

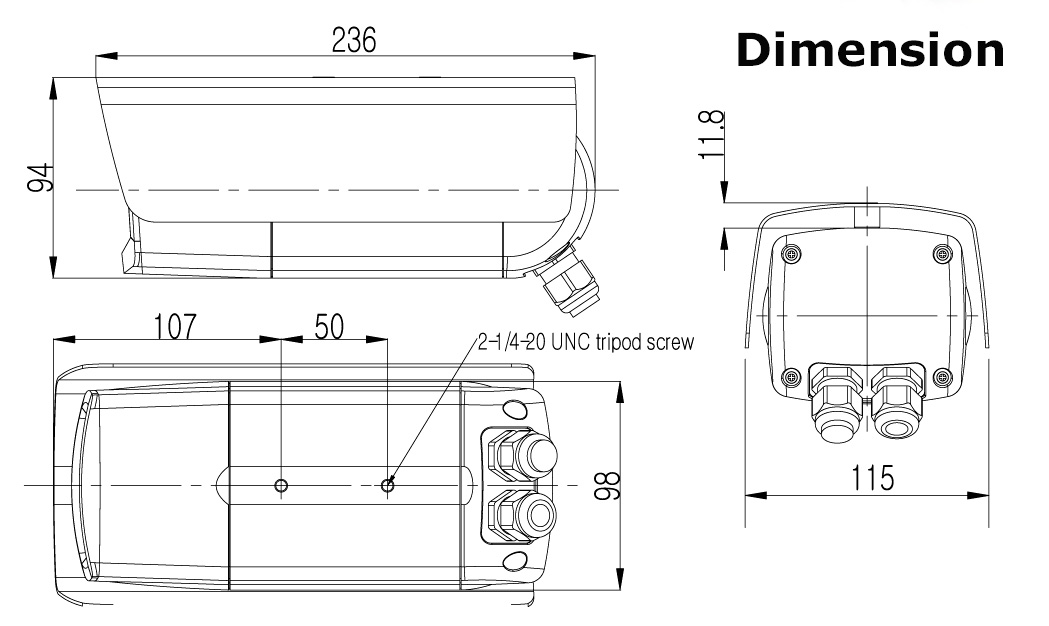

Dimension
|
L236 x H94 x W98mm
|
|
Includes
|
Sunshield,
Mounting Bolt Set, Silica Gel, Cross LAN Cable
Software CD (1CH Viewer & Manual), Printed Owner’s Manual.
|
|
Specification
|
* Click
the following link or paste it to you web browser to review
Detailed Specification.
http://www.MegaFosUSA.com/Download/SP-EIP-004.pdf
|
|
Download
|
* Click
the following link or paste it to you web browser to download
Software CD.
|
|
Installation
Guide
|
*Click
the following link or paste to your web browser to
make sure to review Installation Guide.
1-Year warranty will not cover if the
camera or cable malfunctions that
caused by improper
installation.
|
