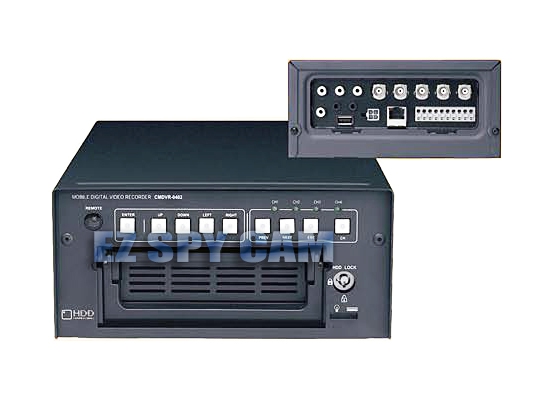

Professional Shock Resistant 4CH Mobile Network DVR w/ Removable HDD

EMD-0412P is a four channel DVR (Digital Video Recorder), which designed to be used in mobile recording solution.

It comes with a compact, shockproof and less-power consuming HDD interface in order to maximize its
effectiveness in mobile recording. EMD-0412P is built based on non-PC type operating system (OS), so it wont
just freeze up while it is in operating and it wont get malicious viruses or worms from the Internet. Additionally,
easy graphical user interface (GUI) makes even PC-phobic users can operate the system without any difficulties.

Great application for recording videos in your RV, Boat, Race Car, Helicopter, etc...



click to enlarge...



Sale Price $100 off >

US$799.00

Regular Price >

US$899.00

Item#

EMD-0412P

Description

Pro Shock Resistant 4CH Mobile Network DVR

Features

  • Compact size application for school bus, mass transit, taxi, police car

  • Embedded proprietary operating system

  • MPEG4 Compression

  • Full 120 FPS (100FPS for PAL) Live Display and Recording

  • USB Backup System

  • Triplex Operation : Simultaneous Playback, Recording, Networking

  • Text Overlay of Vehicle, GPS, Speed Gun Information

  • Swappable 3.5' HDD Storage (2.5' HDD Option)

  • Watermark Verification

  • Full Network Accessibility and Control

Operating System

Embedded Proprietary OS

Compression Algorithm

MPEG4 (VIDEO), ADPCM (SOUND)

Multi-Screen Display

1 / 4 / Sequence

Video Input

4 BNC

Monitor Output

1 Composite

Display Speed NTSC

120fps

Recording Resolution NTSC / PAL

352 240, 720 480 / 352 288, 720 576

Recording Speed (CIF)

Max 120fps

Recording Mode

Continuous, Schedule, Event

Audio

2 Line-In / 2 Line-Out

Search Method

Time & Date, Event

Sensor Alarm

4 Alarm Input (NO/NC) / 1 Alarm Output

Network Interface

RJ-45

PTZ Interface

RS-485

Storage Temp. and Humidity

-4C~140C(-20C~60C) / 20~90%RH

Operating Temp. and Humidity

41C~104C(5C~40C) / 20~80%RH

Dimension (W x H x D)

178mm x 82mm x 275mm

Weight

3.3kg

Power Supply

DC 8V~36V

Input

4 RCA Vp-p 75Ω

Output

1 RCA Vp-p 75Ω
