Item#
|
EMT-600A
---Stock to built-in house & ships out within
5~10 working
days---
|
|
Description
|
Handheld
Video Recording Monitor w/ No Optional Accessory
|
|
Item#
|
EMT-600B
---Stock to built-in house & ships out within
5~10 working
days---
|
|
Description
|
Handheld
Video Recording Monitor w/ Pole Mountable Weatherproof Case
|
|
Specification…
|
-
1CH
Analog A/V-in & 2.4GHz Wireless A/V Receiver built-in
-
Memory:
4GB included & External Micro SD Card Slot
supports up to 32GB
-
Storage
Capacity: Video - 10 ~ 32hrs on 32GB / Photo - 15626pcs on 1GB
-
Power
Supply: 3200mA DC 5V Li-Ion Rechargeable Battery
-
Power
Consumption: 660mA
-
Battery
Capacity: ≥12 hrs (off-screen); ≥6hours （on-screen）
-
Screen:
5” TFT-LCD (800 x 480 pixels) / Luminance 200 cd/m2 / Active Area
118mm(W)
X 8mmH)
-
USB
Interface: USB 2.0 (full speed)
& PC recognizes as "Removable Disk"
-
TV
System: NTSC or PAL (Auto detected)
-
PC
Operation System; All Windows & Mac
-
Video
Recording: MPEG-AVI @ 30fps
-
Video
Play Format MPEG-AVI
-
Video
Resolution: Color 720 x 576 & 640 x 480 pixels
-
Digital
Photo Shooting: Color JPG/JPEG Format
-
Audio:
20HZ-20KHz stereo / Earphone: Left & right 20MW[16O] / Speaker
1W
-
8CH
2.4GHz RF Wireless A/V Receiver built-in
-
Body
color: White or Black whichever available
-
Dimension:
131mm x 86mm x 18mm
-
Weight:
205g
-
Operation
Temperature: -10ºC (14F) ~ 50ºC
(122ºF)
-
Storage
Temperature: -20ºC(-4F) ~ 60ºC (140ºF)
-

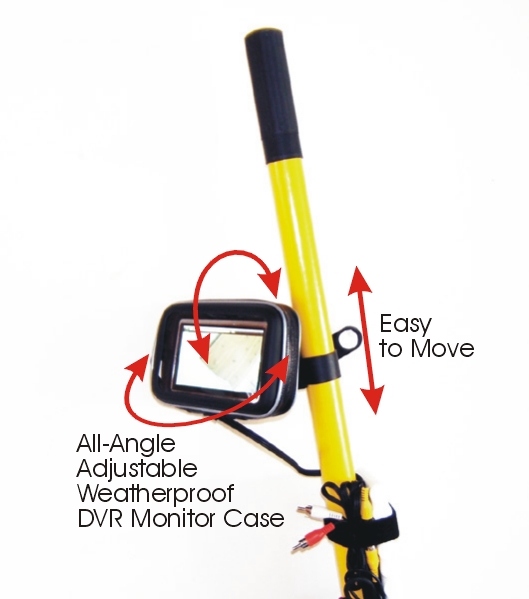

Pole
Mount Weatherproof Case: Water
resistant material
protection against dust, light rain, & water spills / Fits to
up to 1.5" pole in diameter / Bottom opening for wiring
connection
|
|
Click
the following photos to view sample video clips...
|
|
 <<<
Camera
head assembled on ENC-133
series telescopic pole video camera system and observed shoreline
marine lives that recorded with EMT-600
portable DVR monitor
|
|
 <<<
Camera
head assembled on ENC-131 telescopic pole
system and submerged
inside pool at night that recorded with EMT-600
portable DVR monitor
|
|
<<<
Camera
head assembled on ENC-133
series telescopic pole video camera system and observed shoreline
marine lives that recorded with EMT-600
portable DVR monitor
|
|
 <<<
Viewed the murky ocean sand bed at night during strong current occurred
that recorded w/ EMT-600
portable DVR monitor
|
|
 <<<
View the actual PTZ mechanism that recorded w/ EMT-600
portable DVR monitor & controlled w/ EPC-301
wireless remote controller.
|
|
 <Recorded
w/ External Camera of ECC-800HQA connected
through Video input cable
|
|
Parts
included…
|
|
Main
DVR Monitor
Unit, AC/DC Power Charger, USB Cable, A/V Input Cable, Mount Bracket, Printed Manual,
& Pole Mount Case
if ordered optionally.
* Pole
Mount Weatherproof Case pre-assembled on a pole free
when ordered w/ Complete
pole video
system.
|
