Item#
|
EMT-700
|
|
Description
|

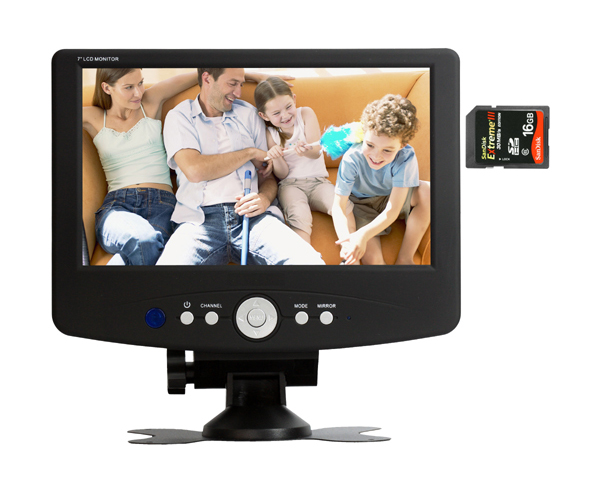

7” LCD Video Recording Monitor w/ 2-CH Audio Video Inputs &
16GB Mini SD Card
|
|
Features…
|
-
Motion
Activation,
Time Schedule, or Manual Recording Mode
-
Remote
Control Operation 2-CH built-in DVR records in AVI format
-
Stores
on External SD/mini SD card slot supports up to 16GB
-
2-CH
A/V input & out (NTSC/PAL) / Real-time Playback in D1
Resolution
-
High
Definition 7” TFL-LCD Panel in 800 x 480 pixel Resolution
|
|
Click
the below pictures to view Real Video Sample Clips…
|
|
 <Recorded
both Audio & Video  <Recorded
in 2-CH auto switch mode
|
|
Specification…
|
-
Display
screen: 7" HD LCD Panel
-
Resolution:
800 X 480
-
TV
System: PAL / NTSC
-
Video
input: 2 CH 75-ohm 1.0Vpp (BNC female connector)
-
Audio
input: 2 CH 10k ohm 0.5V rms (RCA female connector)
-
Video
format: AVI
-
Built-in
flash memory: 32MB~1GB
-
Memory
compatibility: External SD/mini SD card slot supports up to 16GB
-
Recording
Resolution: 720x576, 640x480, or 320x240
-
Playback:
Full
screen in D1 Resolution
-
Storage
Specification per 1GB: 720x576
(1hr), 640x480(3hr), or 320x240(12hr)
-
Recording
Mode: Manual, Motion Detection, or Time Schedule Mode
-
Pre-recording
before Event Triggers (1-30s)
-
Compression
format: MPEG-4
-
Power
Supply: DC12V 1.25A
-
Power
Consumption: <10W
-
Dimensions:
183X136X30mm (WxHxD)
-
Weight:
450g (main body)
-
Operation
Temperature: -10ºC (14F) ~ 50ºC (122ºF)
-
Storage Temperature: -20ºC(-4F) ~ 60ºC (140ºF)
|
|
Parts
included…
|
|
7"
DVR LCD monitor,
16GB
Mini SD Card, 12V AC/DC Power Adaptor, A/V Cable, USB Cable, Instruction
Manual, IR Remote Control Unit
|
|
