P/N
|
EMT-700A
---Stock to built-in & delivers within
3~7
working days---
|
|
Description
|
7"
Touch-Screen Video Recording Monitor w/ 1x Front-view Camera & 1x
External Video Input built-in & Internal 4GB
Memory
|
|
P/N
|
EMT-700B
---Stock to built-in & delivers within
3~7
working days---
|
|
Description
|
7"
Touch-Screen Video Recording Monitor w/ 1x Front-view Camera & 1x
External Video Input built-in & Internal 4GB
Memory plus External 16GB
Memory
|
|
P/N
|
EMT-700C
---Stock to built-in & delivers within
3~7
working days---
|
|
Description
|
7"
Touch-Screen Video Recording Monitor w/ 1x Front-view Camera & 1x
External Video Input built-in & Internal 4GB
Memory plus External 32GB
Memory
|
|
Specification…
|
|
Color
|
Black
|
|
Shell
Material
|
Plastic
|
|
Operating
System
|
Windows
CE 6.0
|
|
CPU
|
ARMII
600MHz
|
|
Internal
RAM
|
4GB
|
|
Expansion
Memory
|
Support
micro SD/TF card up to 32GB
|
|
Display
Screen
|
7-inch
16:9 high-definition resistive touch screen
|
|
OSD
Language
|
English,
German, French, Spanish, Portuguese, Russian, Simplified Chinese,
Traditional Chinese
|
|
Main
Function
|
Portable
Video Recording Monitor, GPS Navigation, Multimedia Player
|
|
Sensor of Built-in Camera
|
CMOS
sensor
|
|

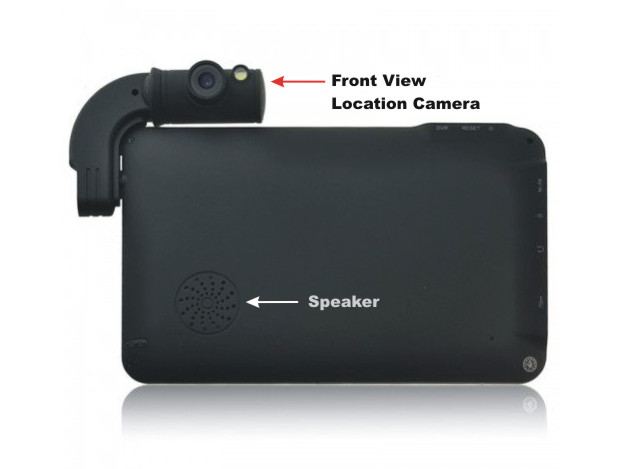

Camera
Lens
|
Front
lens: F=2.6mm/F2.0 120° wide-angle camera lens (2.0MP effective
pixels)
|
|
PIP
(Picture-in-Picture) Function
|
Support,
it is able to conduct DV recording while navigating. The whole driving
record will be shown fully in the map. (The frame size of driving
speed in the screen is able to be set. If not need PIP interface but
want to record while navigating, you just need set the screen to be
full screen).
|
|
Video
Format
|
MOV
|
|
Video
Encoding
|
H.264
|
|
Format
|
JEG
|
|
Resolution
|
1280*720
pixels
|
|
Recording
Mode
|
Non-interrupt
continuous recording / Auto schedule recording
|
|
Other
Functions
|
Simultaneous
PIP (picture-in-picture) w/ GPS navigation and Video recording
|
|
Audio
Player
|
Support
MP3, WAV formats
|
|
Video
Player
|
Support
MOV format
|
|
Viewer
|
Support
JPG, GIF, BMP formats
|
|
Speaker
|
Built-in
|
|
Microphone
|
Built-in
|
|
Other
Tools
|
Calendar,
Calculator, Date & Time Setting, DV Screen Size Setting
|
|

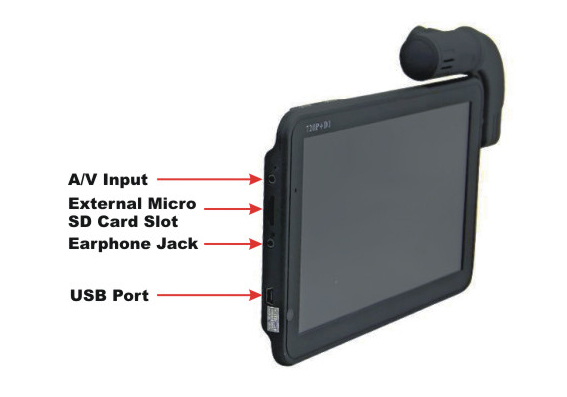

Audio
Interface
|
Ø3.5mm
earphone jack & Ø2.5mm AV-Input
|
|
Video
Interface
|
Ø2.5mm
AV-Input
|
|
USB
Interface
|
Mini
USB jack / Charging port
|
|
Memory
Card Slot
|
TF
(Micro
SD) card slot
|
|
Power
Supply
|
Built-in
4.2V 1800mAh rechargeable lithium battery
|
|
Power
Adapter
|
Input:
AC 100-240V, 50/60Hz; Output: DC5V-5.5Vm, 500mA±50mA
|
|
Car
Charger
|
Input:
DC12-24V; output: DC5.5V, 1.5A
|
|
Operating
Temperature
|
-10ºC
to 50ºC
|
|
Weight
|
841g
|
|
Dimensions
|
22mm
x 15mm x 70mm
|
|
Supported
Operating System
|
Windows2000/XP/Vista,
Windows 7
|
|

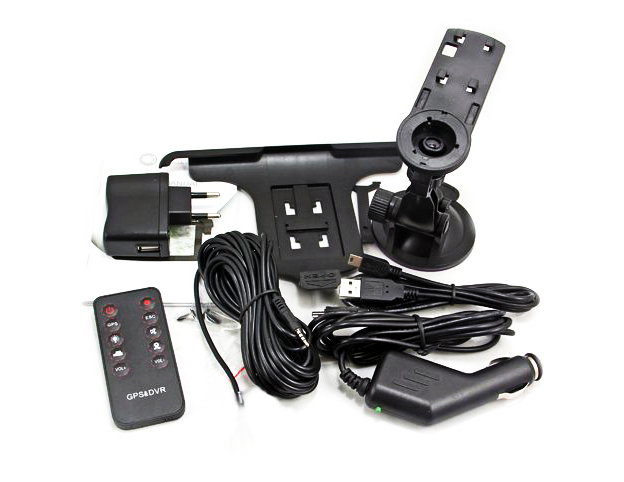

Parts
included
|
 Video
Recording Monitor, Car
Charger, Wall Charger, USB Cable,
Car Mounting Bracket, Bracket, Remote control,
Operation Manual
|
