Item#
|
ENC-102A
---Preorder to built in house & ships out within
3 working
days---
|
|
Description
|
Waterproof

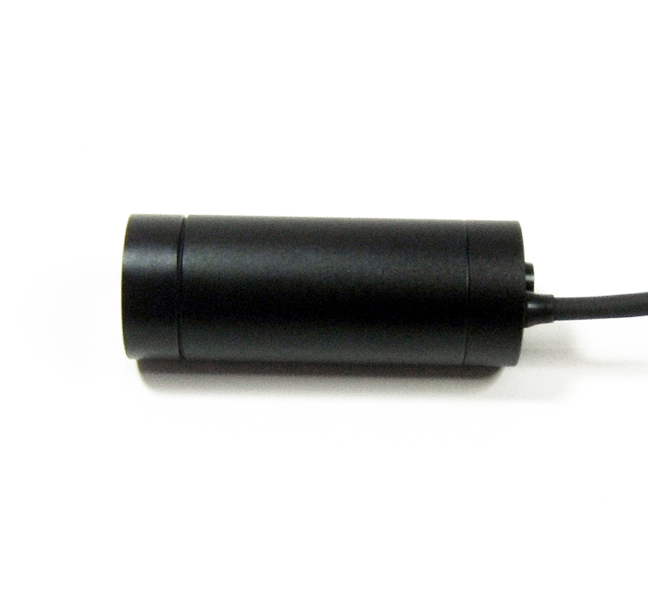

Micro Lipstick Bullet Camera w/
850NM Strong IR-LED
Light
|
|
Item#
|
ENC-102B
---Preorder to built in house & ships out within
7 working
days---
|
|
Description
|
Waterproof
Micro Lipstick Bullet Camera w/ 950NM No Red Glow Invisible
IR-LED Light
|
|
Item#
|
ENC-102C
---Preorder to built in house & ships out within
7 working
days---
|
|
Description
|
Waterproof
Micro Lipstick Bullet Camera w/
White-LED
Light
|
|
|
|
Features
|
*
Selectable
either IR LED or White LED light to suit to your application
precisely
* 620TVL
ultimate video resolution w/ 1/3 inch Color Sony Super HAD CCD ll
* CdS
sensor built-in for Auto Turn on-off IR LED & 0.1 LUX low
light sensitivity

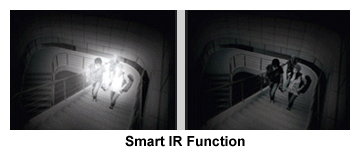

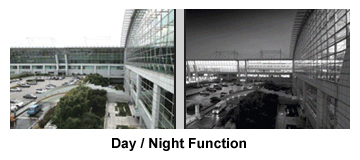

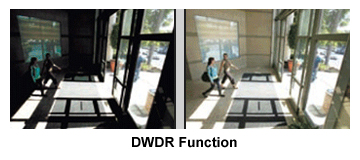

* Smart IR, Day Night, & DWDR functions enhance video outcomes
most advanced ever
* IP-67
Waterproof housing structure engineered to stand
all harsh wet environments
|
|
Click
the right photos to view Real Video Clips
|
 <<<
Viewed in the
complete darkness that taken w/ built-in IR-LED light & Recorded with EMT-600
portable DVR monitor
|
|
 <<<
Plants
viewed w/ built-in IR LED light & 4.0mm board lens on. Recorded
with EMT-600
portable DVR monitor
|
|
 <<<
Street
video taken w/ 2.1mm board lens on & recorded w/ EMT-600
portable DVR monitor
|
|
Camera
Housing Protection Level
|
IP-67
Waterproof & Dust Tight
|
|
Sensor
|
Sony
1/3" Super HAD Color
CCD ll
|
|
Signal
System
|
NTSC
or ( PAL optional upon request)
|
|
Lens
|
*
ENC-102A
& B (850NM IR LED) --- 4.0mm Board Lend (FOV
86º Viewing Angle)
* EUC-102B
(940NM IR LED) & ENC-102C
(White LED) --- 3.6mm Board Lend (FOV 92º Diagonally)
|
|

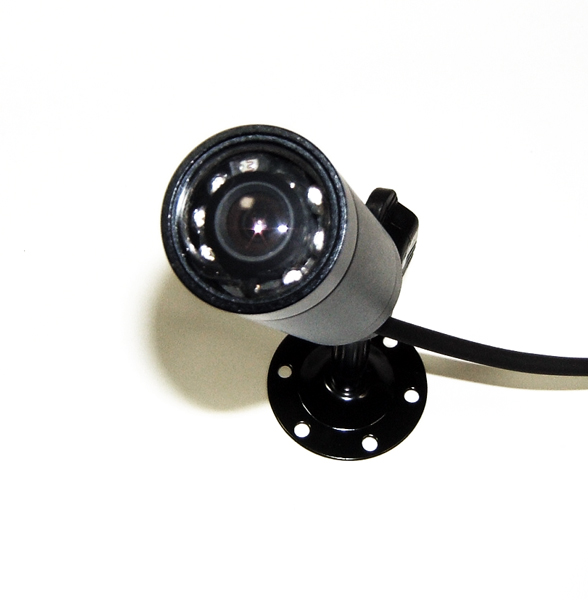

LED
Light
|
*
White LED
--- Advantage to view objects in color
even in the dark
* 850NM Strong Infrared LED
--- Advantage for having Longer IR range in the
dark & objects are viewed in Higher Resolution B&W video in
the dark
* 940NM No Red Glow Infrared LED
--- Advantage for having No Red Glow on the
tip of LED & totally undetected to human or animal eyes. Objects are viewed in
Higher Resolution B&W video in
the dark and good for viewing objects in close range in the dark
|
|
Light
Travel Distance in Air
|
16ft
w/ 850NM Strong IR LED, 12ft w/ 940NM No Red Glow IR LED, &
14ft w/ White LED
|
|
Light
Control
|
*
White
LED --- Manually turned on-off together with Camera power
* IR
LED --- Automatically Turned On-Off controlled w/ Built-in CdS Sensor
|
|
Focusable
Range
|
3
inches from the camera to infinity
|
|
Video
Resolution
|
620
TVL in Color
|
|
Effective
Pixels:
|
NTSC
--- 768(H) x 494(V) / PAL --- 752(H) x 582(V)
|
|
Video
Out
|
1.0
Vp-p (Sync. Negative) Termination 75+10%
|
|
Video
Connector
|
BNC
Jack
|
|
Minimum
Illumination
|
0.1
LUX in Color Daylight
|
|
Electronic
Shutter
|
NTSC=1/60~1/100,000/Sec
: PAL=1/50~1/100,000/Sec
|
|
S/N
Ratio
|
Over
48dB at AGC off
|
|
Sync.
Type
|
Internal
|
|
Gamma
Characteristic
|
Y=
0.45typ
|
|
Scanning
System
|
2:1
Interlace
|
|
Special
Functions
|
Smart
IR, E-Day Night, DWDR, AWB, AGC, Reverse Polarity Protection
|
|

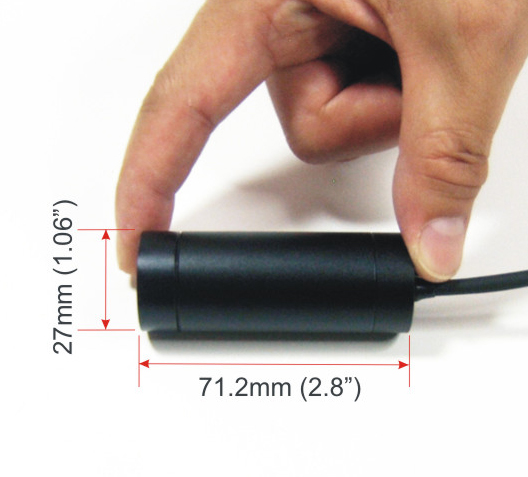

Weight
/ Dimension
|
3.75oz
(100g)
/ Φ27mm
x L71.2mm (Φ1.1”
x L2.8”)
|
|
Power
Supply
|
DC12V±10%
|
|
Power
Consumption
|
Max.
150mA at LED on
|
|
Operating
Temperature
|
-10ºC
~ 50ºC
|
|
Storage
Temperature
|
-20ºC
~ 60ºC
|
|
Humidity
|
RH
95% Max.
|
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
|

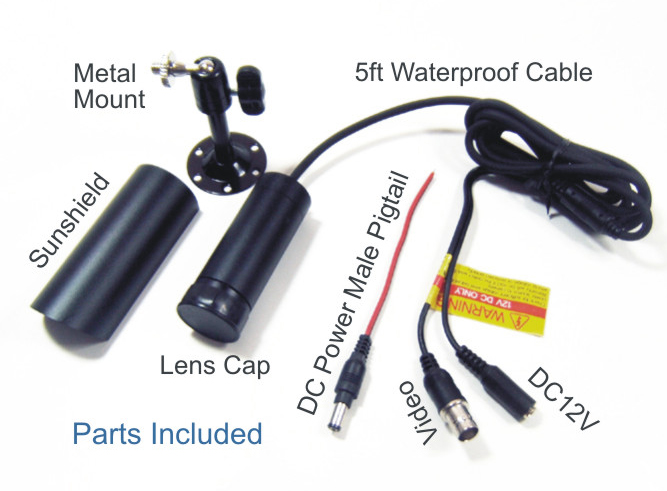

Camera
Set Includes
|
Camera,

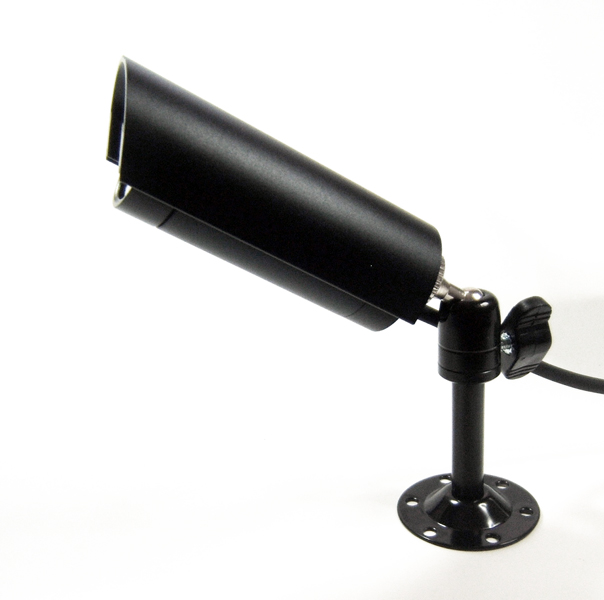

Sunshield, Metal Mount Set, Lens Cap, DC Power Male Pigtail, AC/DC
12V Power Supply, Quick Starter Guide
|
