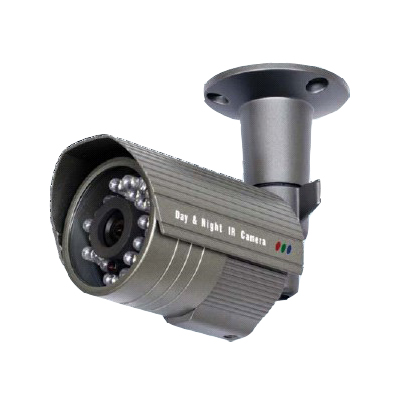

 True Day Color 500TVL Resolution IR Bullet Camera w/ Motorized Auto IR-cut Filter Built-in

Ideal to view objects in True Natural Color & Impossible-to-see total-dark areas
Indoor & Outdoor / up to 45ft Night Visibility
Home security, Business surveillance, Home alone Pet watch, School Security, Child Monitoring, Police Raid
Cash counter surveillance, Baby Watch, Office Surveillance, Infants safety, Property security, Animal Watch
Ground Troop Raid, Wild Animal video, Zoo keeping, Bird net watch, Garden watch, Natural Life observation
Backyard Watch, Outdoor security, Hidden surveillance, Spy video, Live video, Video surveillance, Nanny Cam

Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price

Item#

ENC-113A

Description

True Day Color IR Bullet Camera w/ Motorized IR-cut Filter & 3.6mm Lens

Item#

ENC-113B

Description

True Day Color IR Bullet Camera w/ Motorized IR-cut Filter & 6.0mm Lens

Item#

ENC-113C

Description

True Day Color IR Bullet Camera w/ Motorized IR-cut Filter & 8.0mm Lens

Item#

ENC-113D

Description

True Day Color IR Bullet Camera w/ Motorized IR-cut Filter & 12mm Lens

Item#

ENC-113E

Description

True Day Color IR Bullet Camera w/ Motorized IR-cut Filter & 16mm Lens

Specification

TV System

NTSC

Viewing Angles

click to enlarge...
Refer the left pic of the viewing angle comparison to know how large area the applicable lens can see and click the following link to review the FOV comparison of all applicable lenses.

Available Lens Size

Selectable from 3.6, 6.0, 8.0, 12, or 16mm Fixed Board Lens

LED

24 Strong 850NM IR LEDs

Night Visibility

Up to 60ft

CdS Sensor

Makes LEDs turn on-off at about 10 LUX automatically

Resolution

500TV Lines Horizontally

Image Pick-up Device

1/4" Color Sensor

Scanning Frequency

15.734KHz (H) x 59.94Hz (V)

Scanning System

2:1 Interlace

Minimum Illumination

3.0 Lux when LED light off

Sync. System

Internal

Video Connector

BNC Jack

Video Output

1.0 Vp-p Comp. 75Ω

Electronic Iris

1/60 sec ~1/50,000 sec

Gain Control

Auto

White Balance

Auto

Day & Night

Auto

Gamma

r=0.45

S/N Ratio

50dB (AGC Off, Eight On)

Operating Temp.

-10C ~ 50C (14F ~ 122F)

Power Source

DC 12V +/- 10%

Power Consumption

330mA Max. when LED light on

Warranty

One Year Full Warranty including Parts & Labor

Housing

Weatherproof w/ Removable Rain & Sunshield

Dimension / Weight

Camera only: 50mm x 50mm x 65mm / 180g

Camera
Set Includes

Metal Mounting Bracket Set, Removable Sunshield, AC/DC 12V Power Supply, Quick Starter Guide

Special Instruction

*This camera never should be submerged and exposed under heavy storm or harsh raining environment for long period.
