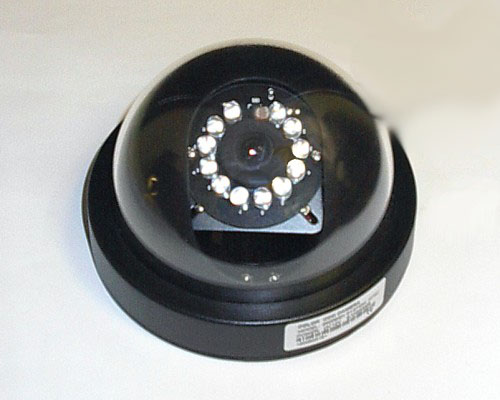

25ft Night Vision Color Dome Camera

Ideal to view objects in 25 ft range & Impossible-to-see total-dark areas
Indoor only / Manual Pan & Tilt
Home security, Business surveillance, Home alone Pet watch, School Security, Child Monitoring, Police Raid
Cash counter surveillance, Baby Watch, Office Surveillance, Infants safety, Property security, Animal Watch
Ground Troop Raid, Wild Animal video, Zoo keeping, Bird net watch, Garden watch, Natural Life observation
Backyard Watch, Outdoor security, Hidden surveillance, Spy video, Live video, Video surveillance, Nanny Cam



click to enlarge...click to enlarge...click to enlarge...



Our Price $40 off >

US$149.00

Regular Price >

US$169.00

Item#

ENC-120

Description

Day Color Night Vision Economic Dome Camera w/ 25ft Night Visibility

Image Sensor

Sony 1/3" Color CCD

Lens

Fixed 3.6mm Board Lens

Viewing Angles

click to enlarge...
Refer the left pic of the viewing angle comparison to know how large area the applicable lens can see and click the following link to review the FOV comparison of all applicable lenses.
http://www.EZspyCam.com/R-img-FOV-variation.htm

LED

12 Visible 850NM IR LEDs (Life span - Appx. 20,000hrs)

CdS Sensor

Makes LEDs turn on-off at about 10 LUX automatically

Night Visibility

click to play...35ft in the total darkness when LEDs are turned on.

Click the left image to play the video clip sample.

Also click the following link or paste it to your web browser to re view all available night vision image samples.
http://www.EZspyCam.com/R-img-daynightvision.htm

Day Visibility

click to play...3 inches from the camera to infinity

Click the left image to play the video clip sample.

Also click the following link or paste it to your web browser to re view all available night vision image samples.
http://www.EZspyCam.com/R-img-daynightvision.htm

Video Resolution

420 TVL (270K pixel)

Video Out

1Vp-p Composite Video 75 ohms

Video Connector

BNC Jack

Minimum Illumination

0.1 LUX at turning LEDs off

Signal System

NTSC for USA, Canada, Asian countries etc...
(*Optional: PAL for Eastern Europe & France, etc...)

Electronic Shutter

NTSC=1/60~1/100,000/Sec (28 Steps) ; PAL=1/50~1/100,000/Sec (28 Steps)

Luminance S/N Ratio

Over 48dB

Special Feature

Auto Gain Control (AGC) / Auto Backlight Compensation / Auto Backlight Compensation

Weight / Dimension

9oz (255g) / 4 5/8 x H: 3 1/8 (118x79mm)

Power Consumption

DC12V10% (350mA)

Operating
Temperature

0C ~ 40C (32F ~ 104F) ; Humidity - 10%RH ~ 80%RH

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

Metal Mounting Bracket Set; Removable Sunshield; AC/DC 12V500mA Power Supply; Installation Guide; Spec Sheet

Special Instruction

*This camera never should be installed outdoor and exposed heavy moisture wet environment for long period.

*Click the following link or paste it to you web browser to review a proper way to purchase suitable cameras or accessories for your need.
http://www.EZspyCam.com/PG-NightVsionCam.htm

*Click the following link or paste to your web browser to make sure to review Installation Guide.
http://www.EZspyCam.com/IG-NightvisionCam.htm

1-Year warranty will not cover if the camera or cable malfunctions that caused by improper installation.
