   Snake Head Submersible Telescopic Pole Video System w/ White or IR LED Light

Ideal to view unreachable impossible-to-see total-dark w/ Built-in White or Invisible IR Light
Industrial Loop top & Narrow Tank inspection, Bird Nesting & Marine Life Observation

Underwater Athletic Movement, Boat Inspection, Check anchor set, Marine Life observation
Bridge & Dam inspection, Tank inspection, Docks & pier surveillance, Whale Watch, Fish Search
Search & Rescue, Inspect & Monitor Swimming Pool, Swamps, river, & lake watch, Boat inspection
Underwater farm surveillance, Create videos of Underwater Actions, Check crab pots & lobster traps
Exploring shipwreck & submerged objects, Discover treasure, Cave search, Rain forest watch, Storm Watch

Best for viewing objects in Unreachable Narrow Space in Total Darkness & Closed Area

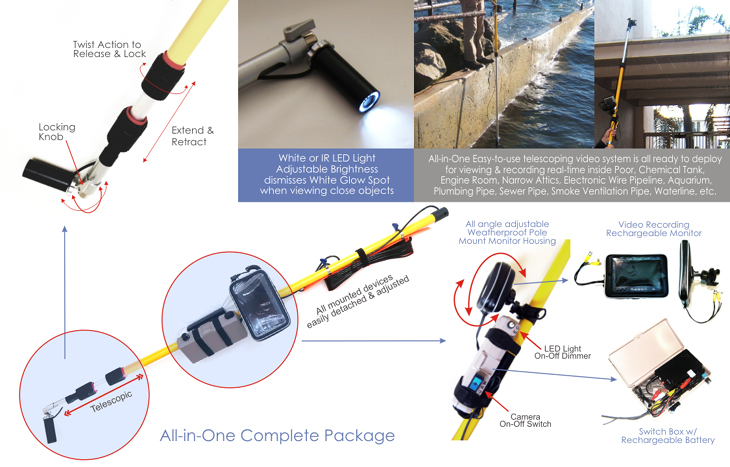

IR Light Snake Head Telecopic Pole Video Inspection System
Easy Disassembling Camera Head & Cable from Pole offers you Convenient Versatility





Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price
"Review more details about assembled devices listed at the bottom of this page"



Item#

ENC-131A-4MB   ---Preorder to built in house & ships out within 10 working days---

Description

Snake Head Telescopic Pole Cam w/ White Light & Standard Video Recording Monitor & Battery Kit on 4~8ft Telescopic Pole

Item#

ENC-131B-4MB   ---Preorder to built in house & ships out within 10 working days---

Description

Snake Head Telescopic Pole Cam w/ White Light & Standard Video Recording Monitor & Battery Kit on 6~12ft Telescopic Pole

Item#

ENC-131C-4MB   ---Preorder to built in house & ships out within 10 working days---

Description

Snake Head Telescopic Pole Cam w/ White Light & Standard Video Recording Monitor & Battery Kit on 8~23ft Telescopic Pole

Item#

ENC-131SRA-4MB   ---Preorder to built in house & ships out within 10 working days---

Description

Snake Head Telescopic Pole Cam w/ 850nm Strong IR Light w/ Standard Video Recording Monitor & Battery Kit on 4~8ft Telescopic Pole

Item#

ENC-131SRB-4MB   ---Preorder to built in house & ships out within 10 working days---

Description

Snake Head Telescopic P Pole Cam w/ 850nm Strong IR Light & Standard Video Recording Monitor & Battery Kit on 6~12ft Telescopic Pole

Item#

ENC-131SRC-4MB   ---Preorder to built in house & ships out within 10 working days---

Description

Snake Head Telescopic Pole Cam w/ 850nm Strong IR Light & Standard Video Recording Monitor & Battery Kit on 8~23ft Telescopic Pole

Item#

ENC-131NRA-4MB   ---Preorder to built in house & ships out within 10 working days---

Description

Snake Head Telescopic Pole Cam w/ 950nm Invisible IR Light & Standard Video Recording Monitor & Battery Kit on 4~8ft Telescopic Pole

Item#

ENC-131NRB-4MB   ---Preorder to built in house & ships out within 10 working days---

Description

Snake Head Telescopic Pole Cam w/ 950nm Invisible IR & Standard Video Recording Monitor & Battery Kit on 6~12ft Telescopic Pole

Item#

ENC-131NRC-4MB   ---Preorder to built in house & ships out within 10 working days---

Description

Snake Head Telescopic Pole Cam w/ 950nm Invisible IR Light & Standard Video Recording Monitor & Battery Kit on 8~23ft Telescopic Pole

Specification:   *Subject to change without prior notice

Image Sensor

Sony 1/3" Super HAD ll Color CCD

Lens

Default 3.6mm Board Lend (FOV 92 Diagonally)

*
Other narrower or wider viewing angle lens may be available upon a request w/ customization fee

Max. Depth

Camera head can be submerged vertically maximum depth up to 165ft (50M)

Signal System

NTSC (* PAL only available w/ an order quantity over 3 units)

*Most of recent HD monitors & DVR are automatically switches and compatible with both NTSC & PAL system, but it would be more affordable for using a NTSC-to-PAL converter or Analog CCTV Video to VGA converter still necessary to covert between PAL & NTSC video in order to use w/ your old monitor.

Camera Compatibility

Compatible with any conventional TV, monitor, or DVR system that equipped with a composite video-in connector and requires a analog to digital converter when viewing through PC or laptop that is not equipped with a built-in TV or video capture card.

Power up the camera and plug the camera video cable into an available video-in connector on your TV, monitor, or DVR system, you will see the incoming live video instantly and only requires a proper connector if cable connectors do not fit together.

Luminance S/N Ratio

Over 48dB (AGC off)

Gamma Correction

r = 0.45

Electronic Shutter

1/60~1/100,000/Sec

Special Functions

Auto White Balance (AWB) / Auto Backlight Correction (BLC)

LED Light

* Invisible 940NM or 950NM IR-LED: Shows no red glow on the tip of IR LED when it turned on and the IR light beam is also   completely invisible to human eyes. It is the best for the complete undetected video surveillance and viewing object in close range in the dark.

*
Strong 850NM IR-LED: Shows red glow on the tip of LED when it's on, but the emitting IR-light beam is invisible to human eye and it produces a longer emitting power than the invisible 950NM IR-LED. It is suitable for the undetected surveillance video and viewing objects that are in long range in the dark.

*
White LED:
The white light beam is seen by human eyes exactly same as what you see from a conventional LED flashlight and it it the best when objects are viewed in color at night as they seen in daylight.

LED Beam Travel Distance in Air

* ENC-131 Series: White LED - Appx. 25ft

* ENC-131SR Series: 850NM Strong Infrared LED - Appx. 20ft

* EENC-131NR Series: 940NM No Red Glow Infrared LED - Appx. 15ft

Light Control

* White LED --- Brightness adjustable & Turned On-Off manually w/ Built-in Dimmer Switch

* IR LED --- Automatically Turned On-Off controlled w/ Built-in CdS Sensor

Lens Focus

Appx. 3 inches from the camera lens to infinity

Video Connector

RCA Plug w/ White LED series & BNC Jack w/ IR LED series

Video Resolution

Ultra High 700 TVL

Effective Pixels

976(H) x 494(V) pixels

Power Consumption

DC 12V1V / 70mA

Minimum Illumination

0.01 LUX @ LED off

Cable

50ft Industrial Underwater Cable

Camera Housing

Brass w/ Heavy Duty Rubber Tube Shielded

Operating Temp.

-10C ~ 50C

Storage Temp.

-20C ~ 60C

Housing IP Rate

IP-68 (Dust tight & Protected against continuous immersion in water, or specified by the user)

Weight / Dimension

100g / 31mm x L78mm (Camera Head only including Connector Portion)

Dropdown Clearance

Requires least 4" in diameter

Warranty

One Year Full Warranty including Parts & Labor

Parts Includes

Camera on 50ft Cable & All other devices pre-assembled on a Pole &  All available accessories, Operation manual

Click the right photos to view Real Video Clips



click to download play...<<< Viewed shoreline rocks at dawn that recorded w/ EMT-600 portable DVR monitor

click to review real video clip...<<< Submerged inside pool at night and videoed with EMT-600 portable DVR monitor

Bridge Inspection Video...<<< Under bridge video inspection that recorded with EMT-600 portable DVR monitor

Attic Inspection Video...<<< Crawl attic video inspection that recorded with EMT-600 portable DVR monitor

click to view live video...<<< Rooftop inspection video that recorded with EMT-600 portable DVR monitor

Replacement Devices

* Snake Head Slim Underwater Camera
*
Brightness adjustable super bright White LED light
* Complete waterproof & Submersible up to 150ft vertically
* Selectable light option among 850nm IR, 940nm IR, or White LED
*
Click here to review more product details & purchase

click to enlarge...

* 24hr Capacity at LED Light-on in continuous use
*
Rechargeable Li-ion DC 12V Battery w/ Universal AC/DC Charger
* Encased w/ On-off switchable case
* Overcharge & Over-discharge protected circuit
*
Click here to review more product details & purchase

* Standard Rechargeable Video Recording DVR Monitor
* 5" LCD Screen & 720 x 576 @ 30fps Video Recording Resolution
* All functions controlled manually pressing control buttons
* Long Battery Capacity Built-in 3.7V Rechargeable Battery
* 4GB Micro SD Card included and supports up to 32GB
* Click here to review
more product details & purchase

* Telescopic pole requires only a screw driver to assemble or disassemble
   the camera and cable from the pole
* Components consist of Water Resistant Fiberglass Pole, Die cast Metal Thread, &
   Anodized Aluminum Sliders
*
The camera holding bracket features 13-postion and 270 degree adjustable angle.
*
Click here to review more product details & purchase

Upgradeable Optional Devices

* RGB 800x480 Color 5" LCD Touch Screen
*
HD Video Recording - 320 x 480 pixels @ 30fps to 1920 x 1080 pixels @ 30fps
* HD Digital Camera Input & Still Photo Shooting in JPG format
* All functions controlled via Touch Screen menu or included Remote Control Unit
* Motion Activated or Manual recording & Date Time Stamp
* Dual Storage of Built-in 320GB Micro HDD & 32GB External SD Card
* Click here to review
more product details & purchase
