 Rust Free Polycarbonate Camera Pole Video System  w/ White or IR LED Light

Ideal to view unreachable impossible-to-see total-dark areas and where no visible light permitted
Undetected Wild Animal Observation / Nature Discovery Documentary

Underwater Athletic Movement, Boat Inspection, Check anchor set, Marine Life observation
Bridge & Dam inspection, Tank inspection, Docks & pier surveillance, Whale Watch, Fish Search

Search & rescue, Inspect & monitor swimming pools,
Swamps, river, & lake watch, Boat inspection
Create videos of all underwater action, Underwater farm surveillance, Check crab pots & lobster traps
Exploring shipwreck & submerged objects, Discover treasure, Cave search, Rain forest watch, Storm Watch

Permanently installed in a pool where containing high concentrated Sodium Hypochlorite

Submersible Waterproof Telecopic Pole Video Inspection System

 Easy disassembling Camera & Cable from Pole offers you Convenient Versatility



Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price
"Review more details about assembled devices listed at the bottom of this page"



Model#

ENC-134A-4MB   ---Stock to built-in & delivers within 10 working days---

Description

Rust Free Polycarbonate Camera Pole Video System w/ Super Bright White LED & Standard Video Recording Monitor & Rechargeable Battery Pack on 4~8ft Telescopic Pole

Model#

ENC-134B-4MB   ---Stock to built-in & delivers within 10 working days---

Description

Rust Free Polycarbonate Camera Pole Video System w/ Super Bright White LED & Standard Video Recording Monitor & Rechargeable Battery Pack on 6~12ft Telescopic Pole

Model#

ENC-134C-4MB   ---Stock to built-in & delivers within 10 working days---

Description

Rust Free Polycarbonate Camera Pole Video System w/ Super Bright White LED & Standard Video Recording Monitor & Rechargeable Battery Pack on 8~23ft Telescopic Pole

Item#

ENC-134SRA-4MB   ---In stock & delivers within 2~3 working days---

Description

Rust Free Polycarbonate Camera Pole Video System w/ Long Range 850nm Strong IR Light & Standard Video Recording Monitor & Battery Kit on 4~8ft Telescopic Pole

Item#

ENC-134SRB-4MB   ---In stock & delivers within 2~3 working days---

Description

Rust Free Polycarbonate Camera Pole Video System  w/ Long Range 850nm Strong IR Light & Standard Video Recording Monitor & Battery Kit on 6~12ft Telescopic Pole

Item#

ENC-134SRC-4MB   ---In stock & delivers within 2~3 working days---

Description

Rust Free Polycarbonate Camera Pole Video System w/ Long Range 850nm Strong IR Light & Standard Video Recording Monitor & Battery Kit on 8~23ft Telescopic Pole

Item#

ENC-134NRA-4MB   ---In stock & delivers within 2~3 working days---

Description

Rust Free Polycarbonate Camera Pole Video System w/ No Red Glow 940nm Invisible IR Light  & Standard Video Recording Monitor & Battery Kit on 4~8ft Telescopic Pole

Item#

ENC-134NRB-4MB   ---In stock & delivers within 2~3 working days---

Description

Rust Free Polycarbonate Camera Pole Video System  w/ No Red Glow 940nm Invisible IR Light & Standard Video Recording Monitor & Battery Kit on 6~12ft Telescopic Pole

Item#

ENC-134NRC-4MB   ---In stock & delivers within 2~3 working days---

Description

Rust Free Polycarbonate Camera Pole Video System w/ No Red Glow 940nm Invisible IR Light  & Standard Video Recording Monitor & Battery Kit on 8~23ft Telescopic Pole

Specification:   *Subject to change without prior notice

Image Sensor

OEM 1/3" Color Sensor

Lens

Default 3.6mm Board Lens (FOV: - 92 Diagonally)

Other narrower or wider viewing angle lens is available upon a request w/ customization fee

Max. Depth

Maximum depth can be submerged vertically up to 300ft (100M)

Signal System

NTSC for USA, Canada, Asian countries etc...
(*Optional: PAL for Eastern Europe & France, etc...)

Camera Compatibility

Compatible with any conventional TV, monitor, or DVR system that equipped with a composite video-in connector and requires a analog to digital converter when viewing through PC or laptop that is not equipped with a built-in TV or video capture card.

Power up the camera and plug the camera video cable into an available video-in connector on your TV, monitor, or DVR system, you will see the incoming live video instantly and only requires a proper connector if cable connectors do not fit together.

LED Light

* Invisible 940NM or 950NM IR-LED: Shows no red glow on the tip of IR LED when it turned on and the IR light beam is also   completely invisible to human eyes. It is the best for the complete undetected video surveillance and viewing object in close range in the dark.

*
Strong 850NM IR-LED: Shows red glow on the tip of LED when it's on, but the emitting IR-light beam is invisible to human eye and it produces a longer emitting power than the invisible 950NM IR-LED. It is suitable for the undetected surveillance video and viewing objects that are in long range in the dark.

*
White LED:
The white light beam is seen by human eyes exactly same as what you see from a conventional LED flashlight and it it the best when objects are viewed in color at night as they seen in daylight.

LED Beam Travel Distance in Air

* EUC-700 Series: White LED - Appx. 60ft

* EUC-700-SR Series: 850NM Strong Infrared LED - Appx. 60ft

* EUC-700-NR Series: 940NM No Red Glow Infrared LED - Appx. 30ft

Light Control

* White LED --- Brightness adjustable & Turned On-Off manually w/ Built-in Dimmer Switch

* IR LED --- Automatically Turned On-Off controlled w/ Built-in CdS Sensor

Lens Focus

Appx. 3 inches from the camera lens to infinity

Video Resolution

600 TVL (410K pixel)

Video Connector

BNC Plug

Special Hardware Function

Auto Motorized IR-Cut Filter Change to produce Realistic True Color in daylight & Sharp B&W Video Resolution at night

Power Consumption

120mA when LED off ~ 220mA w/ Max. LED Brightness

Minimum Illumination

0.1 LUX when LED off

Cable

Industrial Specification Poly Urethane Insulated

Cable Length

Selectable from 50ft, 100ft, 230ft, or Customized Special Length on request

Camera Housing

Heavy Duty Polycarbonate Plastic

Dropdown Clearance

Requires least 5.5" in diameter

Dimension / Weight

2.5" x 4.25" (Camera Head only) / 1LB 10oz

Operating Temp.

-10C ~ 50C (14F ~ 122F)

Storage Temp.

-20C ~ 60C

Housing IP Rate

IP-68 (Dust tight & Protected against continuous immersion in water, or specified by the user)

Warranty

One Year Full Warranty including Parts & Labor

Parts Includes

Underwater Camera w/ Selected Cable Length, AC/DC 12V Power Adapter, Quick Starter Guide, Video Recording Monitor w/ Detachable Sunshade & Camera Rechargeable Battery Kit when ordered optionally

Click the right photos to view Real Video Clips



click to view live video clip...<<< Observed shoreline marine lives that recorded with EMT-600 portable DVR monitor

click to review real video clip...<<< Submerged inside pool at night that videoed with EMT-600 portable DVR monitor which pre-assembled on a pole.

Bridge Inspection Video...<<< Camera head assembled on ENC-134 telescopic pole system and conducted the under bridge video inspection that recorded with EMT-600 portable DVR monitor

Attic Inspection Video...<<< Camera head assembled on ENC-134 telescopic pole system and viewed inside the crawl attic that recorded with EMT-600 portable DVR monitor

click to view live video...<<< Camera head assembled on ENC-134 telescopic pole system and conducted a rooftop inspection that recorded with EMT-600 portable DVR monitor

Replacement Devices

* Corrosion Free Sea Drop Underwater Camera
*
Requires no extra weight when dropping down to seabed
* Complete waterproof & Submersible up to 300ft vertically
* Selectable light option from 940nm IR or White LED
*
Click here to review more product details & purchase

click to enlarge...

* 24hr (ENC-134), 18hr (ENC-134NR), & 14hr (ENC-134SR) Capacity in continuous use
*
Rechargeable Li-ion DC 12V Battery w/ Universal AC/DC Charger
* Encased w/ On-off switchable case
* Overcharge & Over-discharge protected circuit
*
Click here to review more product details & purchase

* Standard Rechargeable Video Recording DVR Monitor
* 5" LCD Screen & 720 x 576 @ 30fps Video Recording Resolution
* All functions controlled manually pressing control buttons
* Long Battery Capacity Built-in 3.7V Rechargeable Battery
* 4GB Micro SD Card included and supports up to 32GB
* Click here to review
more product details & purchase

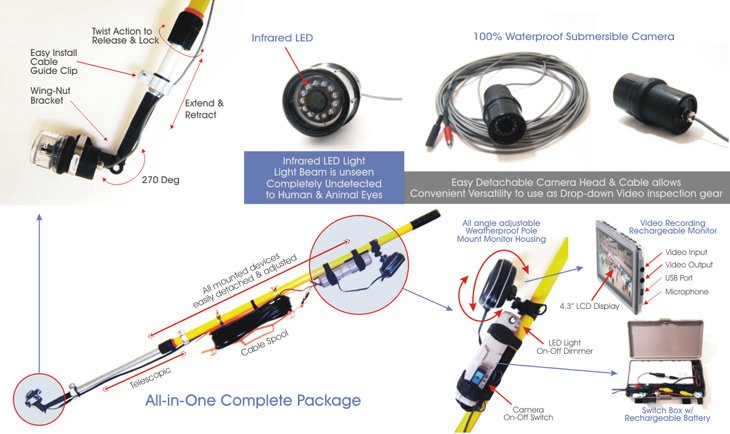

* Telescopic pole requires only a screw driver to assemble or disassemble
   the camera and cable from the pole
* Components consist of Water Resistant Fiberglass Pole, Die cast Metal Thread, &
   Anodized Aluminum Sliders
*
The camera holding bracket features 13-postion and 270 degree adjustable angle.
*
Click here to review more product details & purchase

Upgradeable Optional Devices

* RGB 800x480 Color 5" LCD Touch Screen
*
HD Video Recording - 320 x 480 pixels @ 30fps to 1920 x 1080 pixels @ 30fps
* HD Digital Camera Input & Still Photo Shooting in JPG format
* All functions controlled via Touch Screen menu or included Remote Control Unit
* Motion Activated or Manual recording & Date Time Stamp
* Dual Storage of Built-in 320GB Micro HDD & 32GB External SD Card
* Click here to review
more product details & purchase
