Invisible Mini IR Bullet Camera w/ 950nm Invisible IR LED, OSD, & 0.00008 LUX

Ideal to view objects in Short range & Impossible-to-see total-dark areas
Indoor or Outdoor / Invisible to Human & Animal Eyes
Home security, Business surveillance, Home alone Pet watch, School Security, Child Monitoring, Police Raid
Cash counter surveillance, Baby Watch, Office Surveillance, Infants safety, Property security, Animal Watch
Ground Troop Raid, Wild Animal video, Zoo keeping, Bird net watch, Garden watch, Natural Life observation
Backyard Watch, Outdoor security, Hidden surveillance, Spy video, Live video, Video surveillance, Nanny Cam

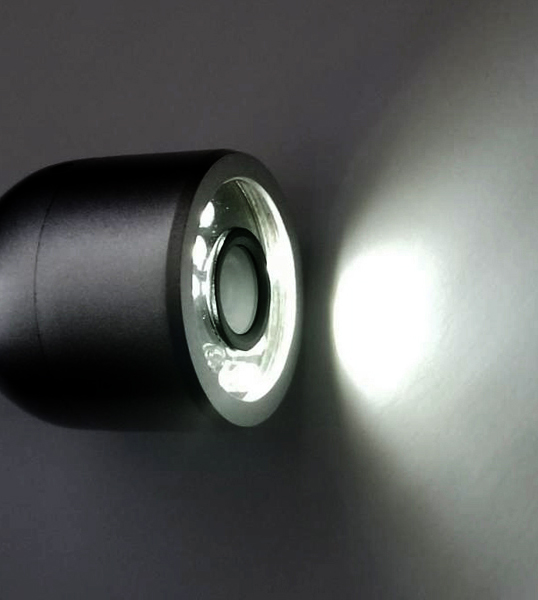

No Red Glow on the tip of LED, Completely Unseen to Human & Wild Animal Eyes



click to enlarge...        click to enlarge...     click to enlarge...



Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price

Item#

ENC-150A    ---Stock to built in house & ships out within 3 - 5 working days---

Description

Mini Invisible IR Light Bullet Camera w/ 2.1mm Board Lens

Item#

ENC-150B    ---Stock to built in house & ships out within 3 - 5 working days---

Description

Mini Invisible IR Light Bullet Camera w/ 3.6mm Board Lens

Item#

ENC-150C    ---Stock to built in house & ships out within 3 - 5 working days---

Description

Mini Invisible IR Light Bullet Camera w/ 8.0mm Board Lens

Item#

ENC-150D    ---Stock to built in house & ships out within 3 - 5 working days---

Description

Mini Invisible IR Light Bullet Camera w/ 12mm Board Lens

Item#

ENC-150E    ---Stock to built in house & ships out within 3 - 5 working days---

Description

Mini Invisible IR Light Bullet Camera w/ 16mm Board Lens



Camera Housing

IP66 Weatherproof

Image Sensor

1/3" SONY Super HAD CCD II

Applicable Lens

2,1, 3.6mm, 4.0, 6.0, 8.0, 12, or 16mm Board Lens

Viewing Angle Examples

click to enlarge...

LED

Invisible 950NM IR LED

Light Control

Automatically Turned On-Off by Built-in CdS Sensor

Night Visibility

Up to 50ft

Day Visibility

3 inches from the camera to infinity

Video Resolution

700 TVL

Video Out

1Vp-p Composite Video 75 ohms

Video Connector

BNC Plug

Minimum Illumination

0.001 LUX ~ 0.00008 LUX at Sense up x512

Signal System

NTSC for USA, Canada, Asian countries etc...
(*Optional: PAL for Eastern Europe & France, etc...)

Electronic Shutter

NTSC=1/60~1/100,000/Sec (28 Steps) ; PAL=1/50~1/100,000/Sec (28 Steps)

Luminance S/N Ratio

Over 48dB

OSD Adjustable Functions

Exposure: DC or ELC Lens, HBLC, D-WDR, AGC, 3D DNR, Sense-Up x512 / Color: Whit Balance Mode, R-Y Gain, B-Y Gain / Day & Night:  Mode (Auto, Color, E-CDS, or B&W), C_SUP, A_SUP / Special Function: Mirror, Sharpness, Monitor, Gamma, LSC / Motion Detection Control / Privacy Mask Control / Video Setting / System Setting

Dimension / Weight

50 x 65mm / 150g or 65 x 60mm / 170g (whichever available)

Operating Temp.

-10C ~ 50C (14F ~ 122F)

Power Consumption

DC12V10% (350mA)

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

Camera, Removable Sunshield, Mount Bracket, AC/DC 12V Power Supply, Quick Starter
