Ideal
to view objects in Long range & Impossible-to-see total-dark areas
Indoor
or Outdoor / Invisible to Human & Animal Eyes
Home
security, Business surveillance, Home alone Pet watch, School Security,
Child Monitoring, Police Raid
Cash counter surveillance, Baby Watch, Office Surveillance, Infants
safety, Property security, Animal Watch
Ground Troop Raid, Wild Animal video, Zoo keeping, Bird net watch, Garden watch, Natural
Life observation
Backyard Watch, Outdoor security, Hidden surveillance, Spy video, Live
video, Video surveillance, Nanny Cam
|
Item#
|
ENC-302
|
Description
|
100ft Range
Day Night Invisible IR Surveillance Camera w/ 2.97mm Board Lens
|
Item#
|
ENC-306
|
Description
|
100ft Range
Day Night Invisible IR Surveillance Camera w/ 6.0mm Board Lens
|
Item#
|
ENC-312
|
Description
|
100ft Range
Day Night Invisible IR Surveillance Camera w/ 12mm Board Lens
|
Item#
|
ENC-325
|
Description
|
100ft Range
Day Night Invisible IR Surveillance Camera w/ 25mm Telephoto Board
Lens
|
|
Sensor
|
Sony
1/3" Super HAD II Color
CCD
|
Video
Resolution
|
700
TVL
|

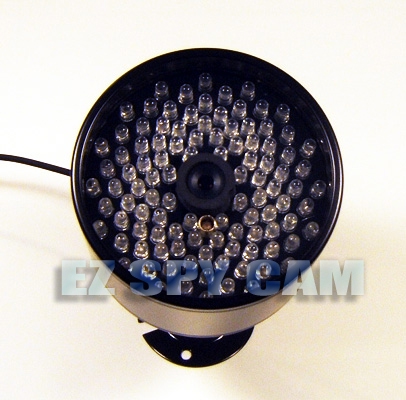

LED
|
No-Red-Glow
Invisible 950NM (940nm) IR LED
|
CdS
Sensor
|
LED
light turns on-off at about 10
LUX automatically
|
Night
Visibility
|
Up
to 100ft
in the total darkness
|
Day
Visibility
|
3
inches from the camera to infinity.
|
Viewing
Angles
|
|
Video
Clip
|
Click
the left picture to view the real video sample clip.
|
Video
Out
|
1Vp-p
Composite Video
75 ohms
|
Video
Connector
|
BNC
Plug
|
Minimum
Illumination
|
0.001
LUX ~ 0.0008 at Sense up x512
|
Signal
System
|
NTSC
for USA, Canada, Asian countries etc...
(*Optional: PAL for
Eastern Europe & France, etc...)
|
Electronic
Shutter
|
NTSC=1/60~1/100,000/Sec
(28 Steps) ; PAL=1/50~1/100,000/Sec (28 Steps)
|
Luminance
S/N
Ratio
|
Over
48dB
|
Special
Feature
|
Auto Gain
Control (AGC) / Auto Backlight
Compensation
|
Camera
Housing
|
IP66
Weatherproof Black Metal
|
Weight
/ Dimension
|
13.4oz
(380g) / Φ94mm
x L65mm (Φ3.7”xL2.56”)
|
Power
Consumption
|
DC12V±10%
(600mA)
|
Operating
Temperature
|
0ºC
~ 40ºC (32ºF ~ 104ºF) ; Humidity - 10%RH ~ 80%RH
|
Warranty
|
One Year
Full Warranty including Parts & Labor
|
Camera
Set Includes
|
Camera
Unit, Metal
Mounting Bracket Set, Removable Sunshield, AC/DC
12V Power Supply, & Quick Starter
|
|
