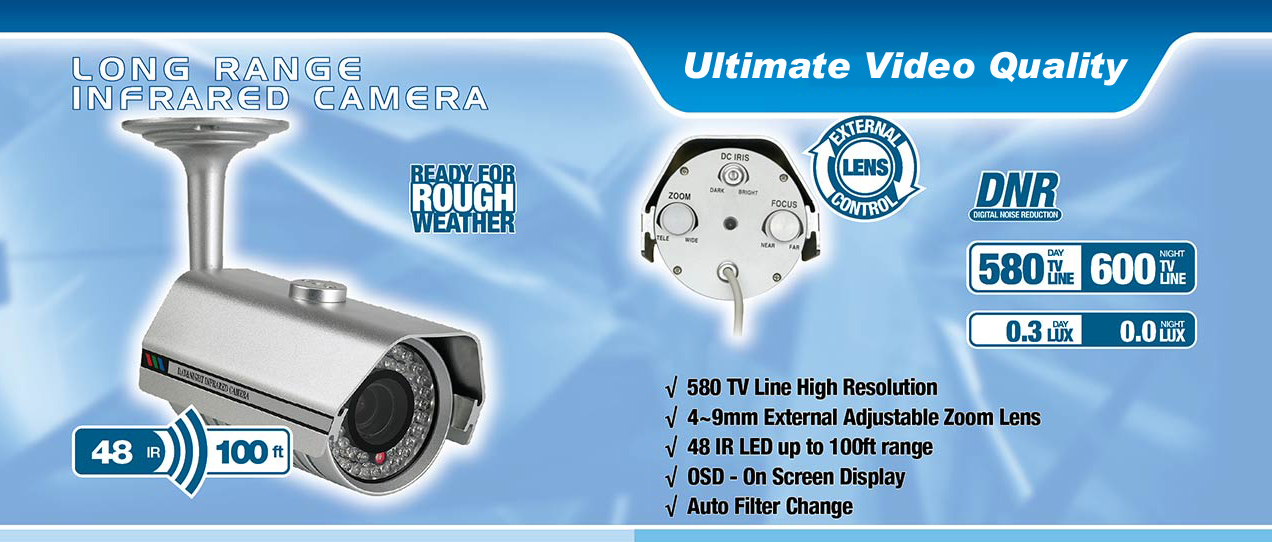

Ultimate 580TVL Resolution 4 ~ 9mm Varifocal Nightvision IR Bullet Cam

click to enlarge...


External Lens Control:

External lens control knobs outside of the camera housing make installation and setting up the camera easier.

Auto Filter Change:
At daytime, IR light is filtered away in the camera by the IR-cut filter in order to render color images that humans are used to. When light conditions are too dark to render color images, the IR-cut filter is automatically removed to enable the camera to make use of the IR light to produce a high quality black & white video.

OSD Camera Setup:
A small program built-in to the camera to help users to setup the camera function via OSD (On Screen Display) with ease. No more reading a manual and tipping dip-switches to configure the camera.

0.002 LUX SENS-UP Low Light Enhancement & DNR (Digital Noise Reduction):
The SENS-UP feature of the 5800 series infrared cameras allow for theirs impressive 0.002 low light lux rating which leads to theirs superb night time performance ability. In addition, the noise reduction (DNR: Digital Noise Reduction) function helps to improve the total DVR recording time up to 30%.

Weather Resistant & Rain-Sunshield:
The built-in removable sun shield that will help ensure you a clear picture and protect the camera from the elements.

IR-Corrected Lens:
Use a day & night or monochrome cameras for the IR corrected lenses. Regular color cameras will not be affected by the IR corrected lens. When using the day/night or monochrome cameras, nearly any outdoor, as well as some indoor applications, will require, or at least benefit from using IR corrected lenses. This is because many natural light sources also contain infrared light, lighting changes with a higher infrared, lower infrared, or without infrared at all. When using ordinary lenses, the result is a blurred, or in a worst case scenario, a completely unfocused picture.




Our Price $50 off >

US$349.00

Regular Price >

US$399.00

Unit
Price

Item#

ENC-43D

Description

Ultimate 580TVL Resolution 4~9mm Varifocal Nightvision IR Bullet Camera

Item#

ENC-43H

Description

Ultimate 580TVL Resolution 4~9mm Varifocal Nightvision IR Bullet Camera
plus Motorized Auto Daynight IR Cut Filter Change Function



Viewing Angles

click to enlarge...
Refer the above pic of the viewing angle comparison to know how large area the applicable lens can see and click the following link to review the FOV comparison of all applicable lenses.
http://www.EZspyCam.com/R-img-FOV-variation.htm

Day Visibility

click to play...3 inches from the camera to infinity

Click the left image to play the video clip sample.

Also click the following link or paste it to your web browser to re view all available night vision image samples.
http://www.EZspyCam.com/R-img-daynightvision.htm

LED

48 Strong 850NM IR LEDs supports Night Visibility up to 100ft

CdS Sensor

Makes LEDs turn on-off at about 10 LUX automatically

Resolution

580(Color) / 600(B/W) TV Lines Horizontally

Image Pick-up Device

Sony 1/3 inch Super HAD CCD / Samsung original module

Picture Elements

811(H) x 508(V) 410K pixels

Effective Picture Elements

768(H) x 494(V) 380K pixels

Scanning Area

3.65(H) x 2.74(V) mm

Scanning System

2:1 Interface/ 525 Lines / 60 Fields / 30 Frames

Iris Mode

DC Iris

Camera Housing

IP66 Weatherproof Housing

Lens

4~9mm Auto Iris Vari-focal Lens - External Adjustable

Minimum Illumination

0.3 Lux at F1.2 / 0.002 Lux (Sens-up x128) / 0 Lux (IR On)

Sync. System

Internal Only

Video Connector

BNC Jack

Video Output

1.0 Vp-p Comp. 75Ω

Electronic Iris

x128 ~ 1/60 sec ~1/120,000 sec. (Sens-up and Sens-up limit is selectable / Flickerless

O.S.D

Built-in

Backlight Compensation

Low / Middle / High / Off Selectable

Gain Control

Low / Middle / High / Off Selectable

DNR

Low / Middle / High / Off Selectable

White Balance

ATW / AWC / Manual / Outdoor (1,800K~10,500K)

Day & Night

Auto / On

Gamma

r=0.45

S/N Ratio

50dB (AGC Off, Eight On)

Operating Temp.

14F ~ 122F

Power Source

DC 12V

Power Consumption

200mA (IR LED off) / 1700mA (IR LED On)

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

Metal Mounting Bracket Set; Removable Sunshield; AC/DC 12V Power Supply; Manual

Special Instruction

*This camera never should be submerged and exposed under heavy storm environment for long period.

*Click the following link or paste it to you web browser to review a proper way to purchase suitable cameras or accessories for your need.
http://www.EZspyCam.com/PG-NightVsionCam.htm

*Click the following link or paste to your web browser to make sure to review Installation Guide.
http://www.EZspyCam.com/IG-NV-VarifocalCam.htm

1-Year warranty will not cover if the camera or cable malfunctions that caused by improper installation.
