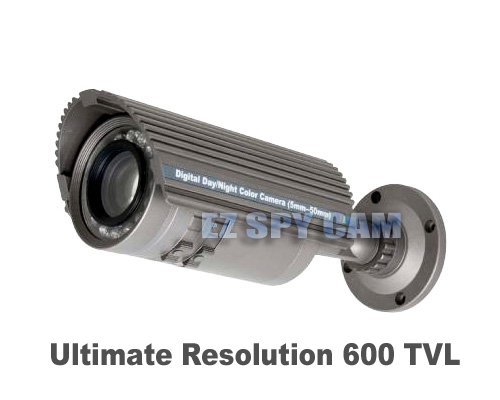

Ultimate 600TVL Heavy Duty 5 ~ 50mm Telephoto Long Range Nightvision IR Cam


External Lens Control:

External lens control knobs outside of the camera housing make installation and setting up the camera easier.

Auto Filter Change:
At daytime, IR light is filtered away in the camera by the IR-cut filter in order to render color images that humans are used to. When light conditions are too dark to render color images, the IR-cut filter is automatically removed to enable the camera to make use of the IR light to produce a high quality black & white video.

High Power IR LED:
Energy efficient high-powered IR LED allows to draw only 800mA maximum yet it gives super long night visibility of 250ft.

Weather Resistant & Rain-Sunshield:
The built-in removable sun shield that will help ensure you a clear picture and protect the camera from the elements.

IR-Corrected Lens:
Use a day & night or monochrome cameras for the IR corrected lenses. Regular color cameras will not be affected by the IR corrected lens. When using the day/night or monochrome cameras, nearly any outdoor, as well as some indoor applications, will require, or at least benefit from using IR corrected lenses. This is because many natural light sources also contain infrared light, lighting changes with a higher infrared, lower infrared, or without infrared at all. When using ordinary lenses, the result is a blurred, or in a worst case scenario, a completely unfocused picture.


click to enlarge...




Our Price $80 off >

US$499.00

Regular Price >

US$579.00

Item#

ENC-45

Description

Ultimate 580TVL Resolution Telephoto Nightvision IR Cam w/ 300ft Night Visibility



Viewing Angles

click to enlarge...
Refer the above pic of the viewing angle comparison to know how large area the applicable lens can see and click the following link to review the FOV comparison of all applicable lenses.
http://www.EZspyCam.com/R-img-FOV-variation.htm

Day Visibility

click to play...3 inches from the camera to infinity

Click the left image to play the video clip sample.

Also click the following link or paste it to your web browser to re view all available night vision image samples.
http://www.EZspyCam.com/R-img-daynightvision.htm

LED

15 High Power 850NM IR LEDs supports Night Visibility up to 250ft

CdS Sensor

Makes LEDs turn on-off at about 10 LUX automatically

Image Pick-up Device

1/3 Sony Super HAD CCD

TV System

NTSC

Number of Pixels

NTSC = 768(H) 494(V) / PAL = 752(H) 582(V)

Scanning System

2:1 Interlace

Sync System

Internal Sync

Resolution

600 TV Line

Minimum Illumination

IR LEDs OFF 0.1 Lux / IR LEDs ON 0 Lux

S/N Ratio

More than 46dB

CDS Sensor

Photoconductive cells 10 Lux Resistance 5~10k Ω

IR Distance

250ft

Gamma Characteristic

0.45

Video Connector

BNC Jack

Video Output

CVBS : 1.0Vp-p 75Ω

Electronic Shutter Time

NTSC = 1/60 ~ 1/100,000 sec / PAL = 1/50 ~ /100,000 sec

Power Supply

AC 24V / DC 12V Dual Voltage

Power Consumption

800mA Max (CDS ON)

Lens

DC Auto-Iris Varifocal Lens (5~50mm)

Operational Temp.

14F ~ 122F RH 95% Max

Storage Temp.

-4C ~ 140C RH 95% Max

Dimension

4.0(W) x 5.3(H) x 11.4(D)

Weight

4.4 lbs (70 Oz)

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

Cable Thru Bracket Set; Removable Sunshield; AC/DC 12V Power Supply; Manual

Special Instruction

*This camera never should be submerged and exposed under heavy storm environment for long period.
