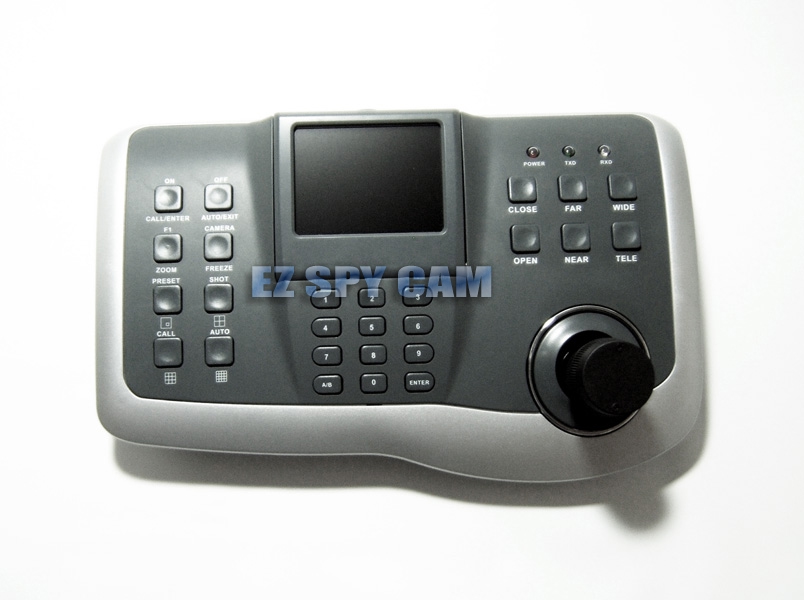

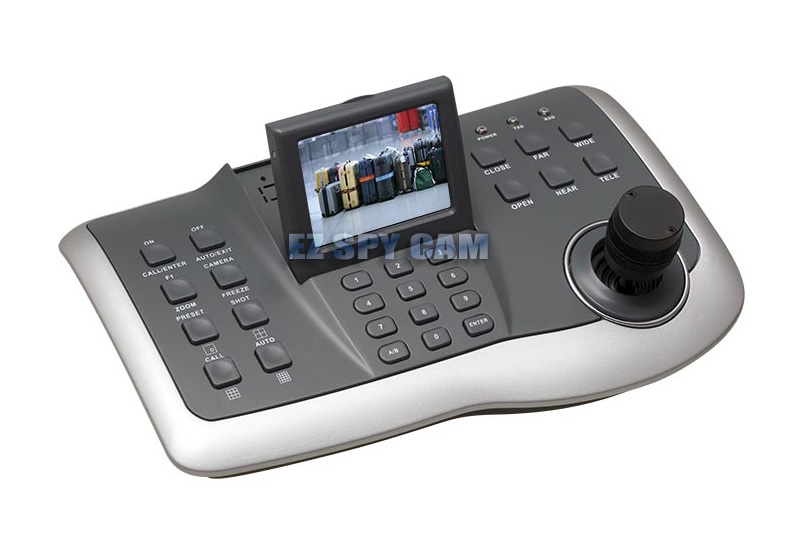

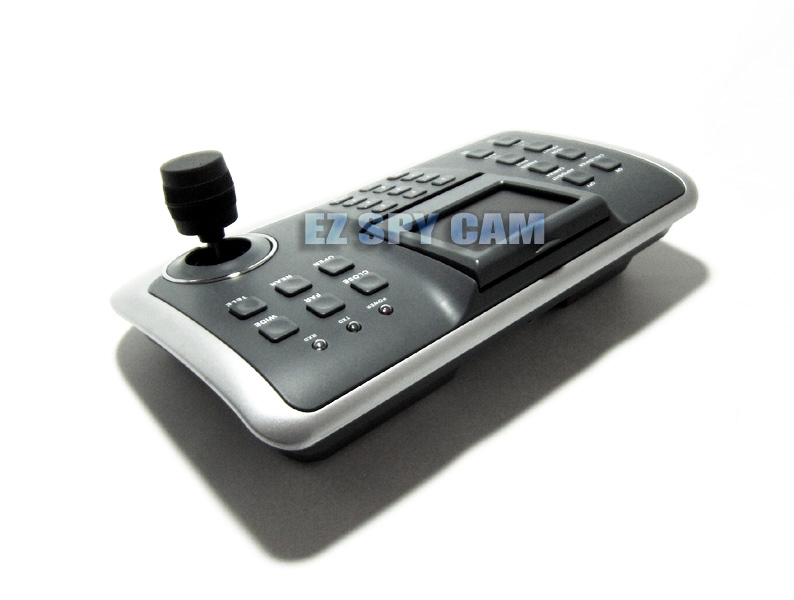

Live View Keyboard PTZ Remote Controller w/ 3-Axis Joystick & 3.5" Color LCD Monitor

Control up to 256 PTZ cameras & & Use as a CCTV Video Tester
RS-485 Communication System / Multi Protocols Supported / Selectable Baud Rate
Long PTZ operational Range up to 1.5 mile on 24AWG Wire / Crystal Clear 3.5" Color TFT-LCD Monitor



click to enlarge...      click to enlarge...

click to enlarge...                  click to enlarge...



Sale Price $60 off >

US$399.00

Regular Price >

US$459.00

ITEM#

EPC-302

Description

Live View PTZ Keyboard Remote Controller w/ 3-Axis Joystick & 3.5" Color LCD Display

Features

  • Setup demo camera or decoder ID address range : 0 ~ 255
  • Control to multi-function of demo camera, such as : menu, focus, white balance
  • Control the demo camera to multi-speed
  • Save preset position of demo camera, setup shot about the preset position. The keyboard can setup 8 shots, each shot can save 16 preset position
  • Two control mode : manual mode and auto mode
  • Control zoom, focus and iris of demo camera by manual mode
  • Use as CCTV location video tester
  • Multi-vision plus processor and control it at long distance up to 1.5 mile on  24AWG wire

Specification

Screen Display

3.5" Color TFT-LCD Monitor

Control Object

General PTZ, PTZ Decoder, High Speed PTZ

Protocol

Pelco-D, Pelco-P, Alec, Samsung, Vido-B01, Neon, HTSCAM, HD600, TOTA, Kalatel, Vcldome, Redapple, Santachi450, Vicon

Baud Rate

1200, 2400, 4800, 9600 and 19200 bps

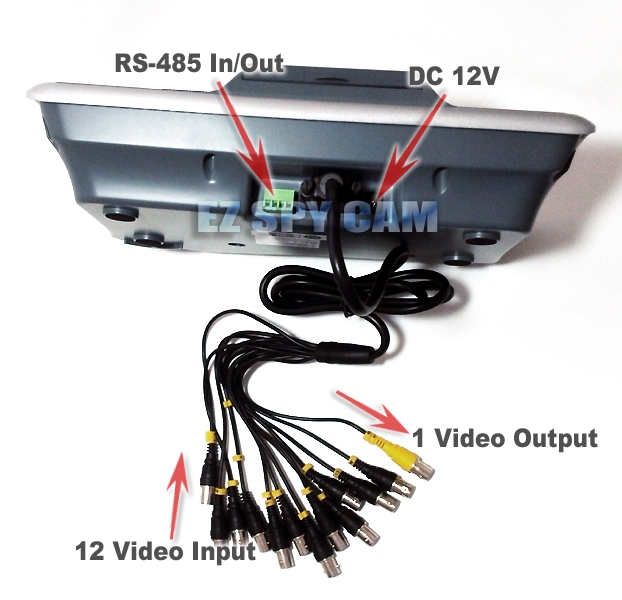

RS-485 Port

+/- Input & Output

Video Connector

12 BNC inputs & 1 BNC output

Communication Distance

Max. Apprx. 1.5mile (2400M) on 24AWG Wire

Operation Temp.

-10C~50C

Operating Temperature

32F to 113F

Humidity

10% ~ 70% non-condensing

Dimensions & Weight

14.8"(W) x 4.4"(H) x 5.7"(D) & 2.9 lbs

Power

DC 12V +/-10%

Parts Included

PTZ Keyboard Controller, Video-in/out Cable Set, AC/DC 12V Power Supply, Instruction Manual

*Click the following link or paste to your web browser to download Typical PTZ connection diagram.
http://www.EZspyCam.com/Download/IG-PTZcam-connection.pdf

*To download the step-by-step instruction manual or detailed spec sheet, please request it via following email, support@EZspyCam.com along with your order ID# or Invoice#.
