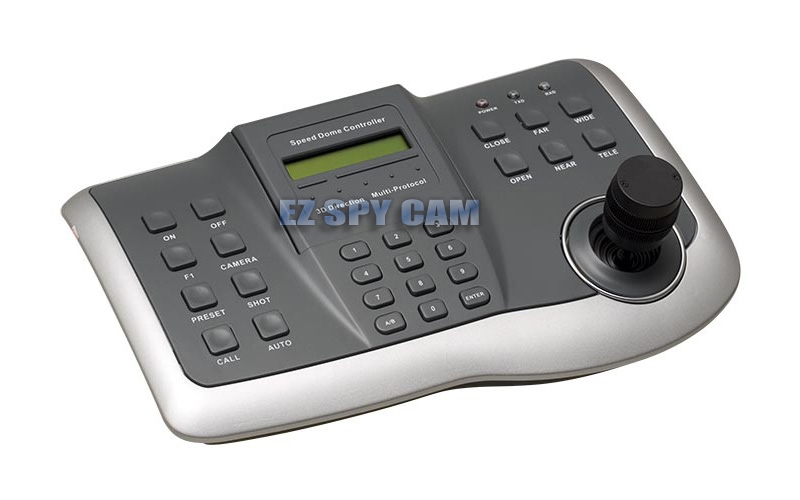

Desktop Keyboard PTZ Remote Controller w/ 3-Axis Joystick & Text LCD Screen

Control up to 256 PTZ cameras & Multiple RS-485 Compatible Equipments
RS-485 Communication System / Multi Protocols Supported / Selectable Baud Rate
Long PTZ operational Range up to 1.5 mile on 24AWG Wire / Crystal Clear Text LCD Screen



click to enlarge...



Sale Price $40 off >

US$259.00

Regular Price >

US$299.00

ITEM#

EPC-303

Description

PTZ Keyboard Remote Controller w/ 3-Axis Joystick & Text LCD Screen

Features

  • Setup demo camera or decoder ID address range : 0 ~ 255
  • Control to multi-function of demo camera, such as : menu, focus, white balance
  • Control the demo camera to multi-speed
  • Save preset position of demo camera, setup shot about the preset position. The keyboard can setup 8 shots, each shot can save 16 preset position
  • Two control mode : manual mode and auto mode
  • Control zoom, focus and iris of demo camera by manual mode
  • Multi-vision plus processor and control it at long distance up to 1.5 mile on  24AWG wire

Specification

Screen Display

16 x 2 Characters

Control Object

General Ball, PTZ Decode, High Speed Ball

Protocol

Pelco-D, Pelco-P, Alec, Samsung, Vido-B01, Neon, HTSCAM, HD600, TOTA, Kalatel, Vcldome, Redapple, Santachi450, Vicon

Baud Rate

1200, 2400, 4800, 9600 and 19200 bps

Out Channel

2 Channels

Communication Distance

Max : 2400m

Operation Temp.

-10C~50C

Power

DC 12V / 1A

*Click the following link or paste to your web browser to download Typical PTZ connection diagram.
http://www.EZspyCam.com/Download/IG-PTZcam-connection.pdf

*To download the step-by-step instruction manual or detailed spec sheet, please request it via following email, support@EZspyCam.com along with your order ID# or Invoice#.
