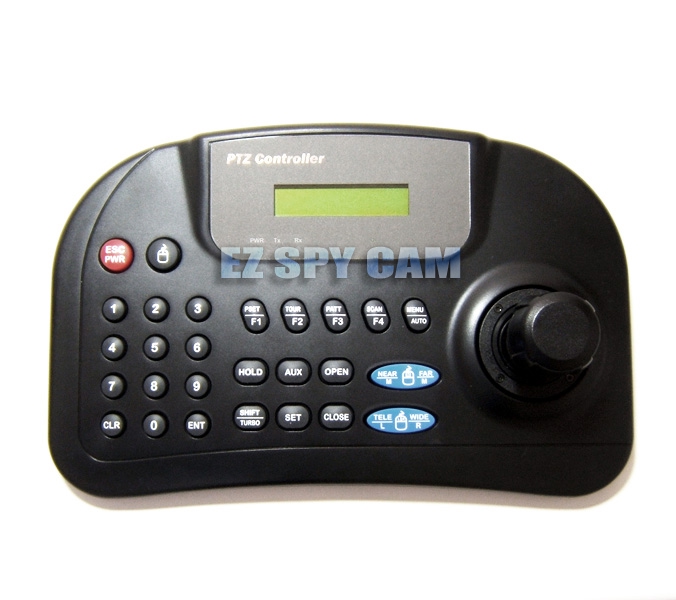

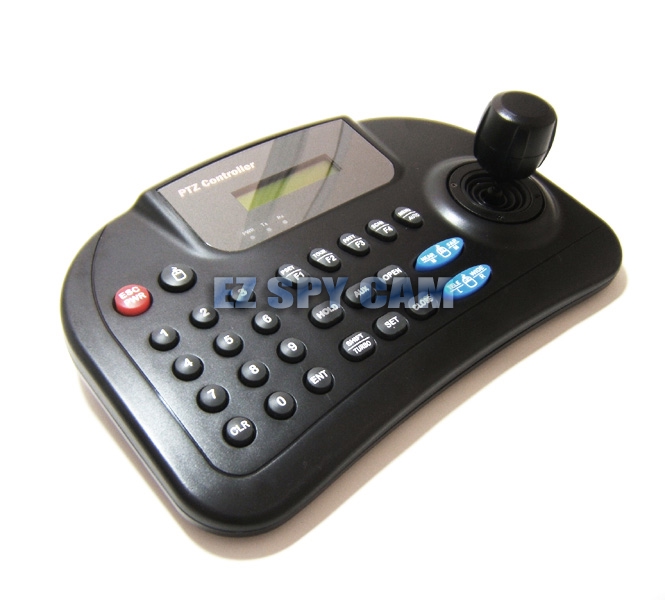

Pro  Dual Power Keyboard PTZ Remote Controller w/ 3-Axis Joystick

The Cutting-edge Dual Power Keyboard PTZ Remote Controller can be used to easily control the speed or slow
PTZ cameras up to 255 and the built-in 3-axis joystick supports control of PTZ functions as well as
a jog/shuttle switch. The keyboard has pan/tilt control functions as well as lens control (zoom, focus and iris).
For your convenience the keyboard has two control interface options, of RS-485 or RS-442 signal.

A great alternative to PC based control, this keyboard will even store memory preset locations
so that you can use 1 touch to bring the PTZ camera to a remembered position.
Simply connect cameras in parallel on the communication ports then switch between the cameras on the keyboard.

Compare to Samsung #SCC-1000 & Sanyo #VSP-3000 - Only Difference, You Pay Less Here!



click to enlarge...click to enlarge...click to enlarge...

Sale Price $50 off >

US$319.00

Regular Price >

US$369.00

ITEM#

EPC-306

Description

Pro Dual Power Keyboard PTZ Remote Controller w/ 3-Axis Joystick

Features

  • Control up to 255 PTZ cameras & Multiple protocols supported on each channel.

  • RS-485/Rs-422 communication (Tx:3 port,Trx:1 port) & Programmable user preferences. (Preset, Tour, Pattern, etc.)

  • Built-in 3-Axis proportional joystick, USB mouse function, 2 lines character LCD, & DVR interface.

  • Easy upload programmed data via serial communication & User Password support.

  • Selectable transmission speed for each ID.(2.4~57.6 kbps) & Dual power mode of DC-12V or 9V battery.

Specification

Communication

RS-485/422

Control Range

4,700ft (1,029M) on 24 AWG wire

Protocol

Pelco-D, Pelco-P, Won-D, etc.

Baud Rate

Selectable from 2.4 ~ 57.6 kbps

Connector

Terminal Block (8p)

Buttons

Rubber Button & Camera Function Keys

Operation Temp

0C~45C

Humidity

10% ~ 70% Non-condensing

Power

Dual DC 12V or 9V Battery

Consumption

Max. 140mA

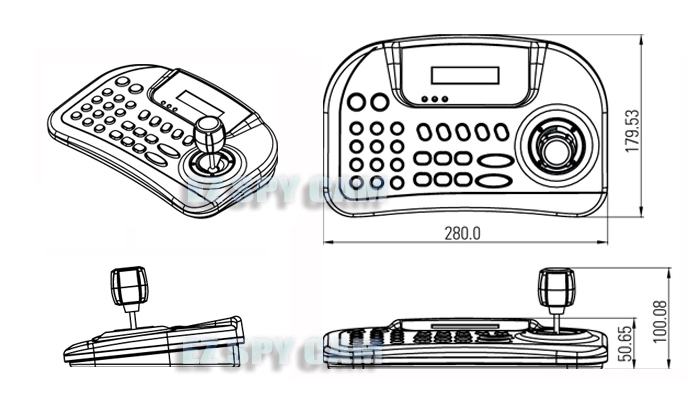

Dimension

280mm(W) x 92mm(H) x 174mm(D)click to enlarge...

Weight

0.7Kg

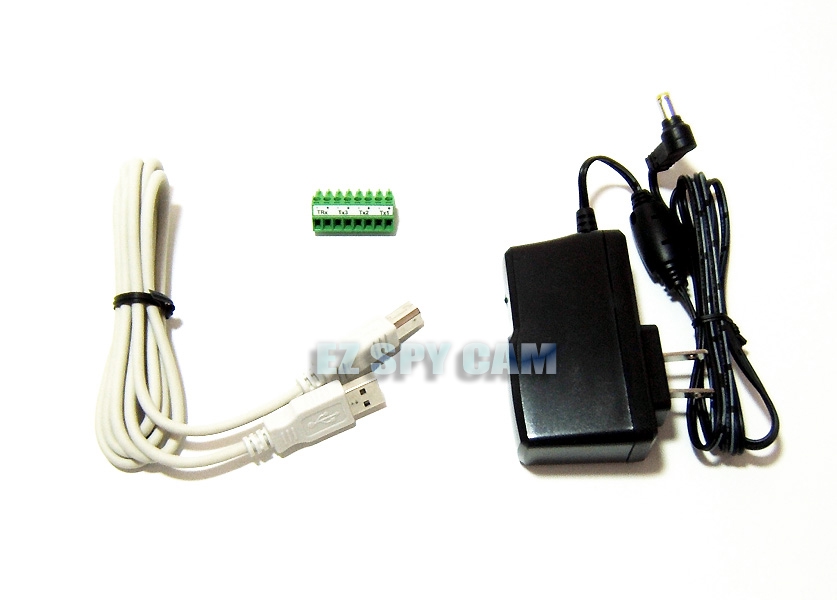

Parts included

Keyboard PTZ controller, 110 ~ 240V AC/DC 12V Power Adapter, USB Cable, Terminal Block(8p),  & Instruction Manualclick to enlarge...

*Click the following link or paste to your web browser to download Typical PTZ connection diagram.
http://www.EZspyCam.com/Download/IG-PTZcam-connection.pdf

*To download the step-by-step instruction manual or detailed spec sheet, please request it via following email, support@EZspyCam.com along with your order ID# or Invoice#.
