Item#
|
EPC-506
|
Description
|

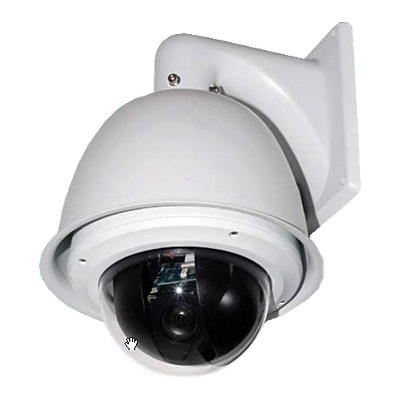

Motion
Tracking Speed PTZ Dome Security Camera w/ x36 Zoom Lens
|
Features:
|
-
Auto
Motion Tracking & Flickerless 360° Pan and 180° Tilting (90°
with auto-image-flip) PTZ Machine
-
Sony
Super Ex-View HAD CCD delivers 0.01Lux Sensitivity in night mode,
while providing Ultra High 540TVL Video Resolution
-
128
preset points memory, 4 pattern tours, 1 scan tour, 24 privacy
masking zones, 7 Alarm input & 2 output
-
Easy
OSD settings & RS-485 Communication Interface w/ Pelco-D &
16 other Multi-Protocols supported
-
IP-66
Weatherproof special structured housing offers a very quite
operation sound even when built-in hear and blower are on
-
Total
432x Zoom Lens / High-precision step-motor for Flickerless image /
Temperature Monitoring Sensor
|
Specification:
|
Signal
Format
|
NTSC
|
Scanning
|
Progressive
|
Sensor
|
Sony
1/4 inch Ex-View CCD
|
H.
Resolution
|
540
TVL (High Resolution)
|
Viewing
Angle
|
57.8°
(Wide End) / 1.7° (Tele End)
|
Zoom
|
36x
Optical Zoom / 12x Digital Zoom
|
MIN.
Illuminance
|
Day:
1.4 Lx (1/50), 0.1 Lx (1/3) / Night: 0.01 Lx (1/3)
|
Focus
|
Auto
/ Manual
|
White
Balance
|
Auto
/ Manual (ATW, Indoor, Outdoor, One Push WB, Manual WB) / Wide Dynamic
Function
|
Shutter
Speed
|
1/3
to 1/10,000 Sec
|
Iris
Control
|
Auto
/ Manual / Auto Slow Shutter
|
Gain
Control
|
Auto
/ Manual (-3 to 28dB, 2dB steps, 16 steps)
|
Video
Output
|
VBS
: 1.0Vp-p (Sync Negative), Y / C Output
|
S/N
Ratio
|
More
than 50 dB
|
PTZ
Characteristics
|
360°
PAN (0.4°~320° per sec) / 90° Tilt (0.4°~150° per sec) with
Auto Flip / Various-Speed Control / Proportional & constant PT
speed
|
On-Screen
Display
|
Date
/ Time / Zoom Rate / Temperature
|
OSD
Menu
|
Setup
/ Automation Programming / Password protection
|
Object
Tracking
|
Manual
activation / Preset triggering / Scheduled activation / Tracking zone
selection
|
Communication
|
RS-485
& 16 other protocols supported
|
Preset
Positions
|
128
Presets
|
Auto
Pan
|
Yes,
between 2 presets
|
Tour
/ Sequence
|
4
programmable.
Tours
with max 32 presets / 4 Pattern up to 180s
|
Alarm
Inputs
|
7
inputs / 2 output
|
Operating
Environment
|
Outdoor
: -40°C to 60°C / IP66 weather-resistant
Indoor : -10°C to 50°C / Humidity up to 95%
|
Power
|
24V
AC 48W
|
Parts
Included
|
PTZ
Camera Unit, Complete
Mount
Bracket
Set, AC 24V Power Adapter, Manual
|
