Mini Speed PTZ Dome Camera w/ x10 Zoom Lens & Dual Surface & In-Ceiling Mount

Plug-n-Play & Easy Install High-Tech Video Surveillance Remote Control Camera
Indoor & Outdoor Use

The EPC-507 is a unique mini PTZ camera that out-performs all bulky over-sized
PTZ cameras nevertheless all high-tech PTZ mechanisms are built-in the such tiny
4.2 dome and hardly believe this mini dome cam is a remote controllable speed PTZ camera.



click to enlarge...         click to enlarge...



click to enlarge...click to enlarge...

 click to enlarge...
 click to enlarge...
Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price

Item#

EPC-507A

Description

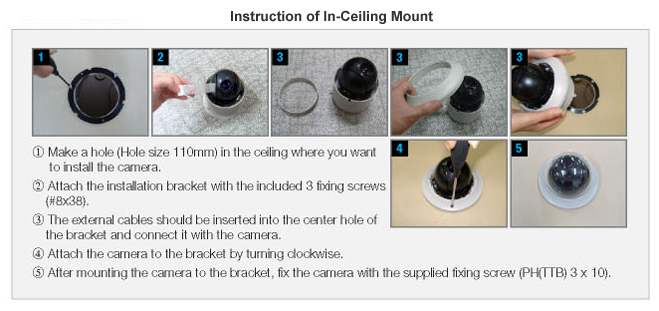

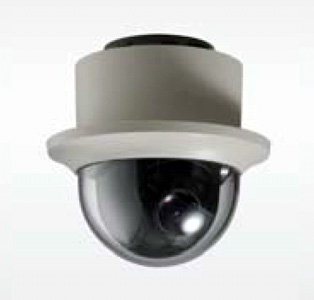

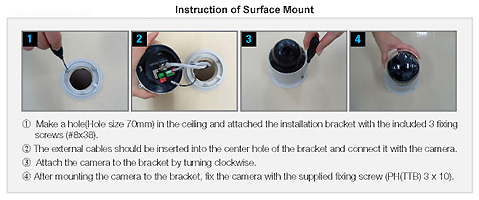

Mini Speed PTZ Dome Camera w/ x10 Zoom & Dual Surface & In-Ceiling Mount

Item#

EPC-507B

Description

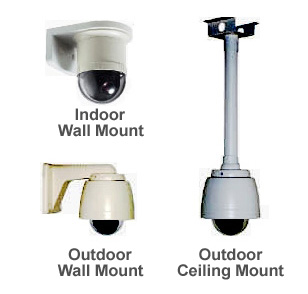

Mini Speed PTZ Dome Camera w/ x10 Zoom & Indoor Wall Mount

Item#

EPC-507C

Description

Mini Speed PTZ Dome Camera w/ x10 Zoom in Outdoor Wall Mount w/ Built-in Fan & Heater

Item#

EPC-507D

Description

Mini Speed PTZ Dome Camera w/ x10 Zoom in Outdoor Ceiling Mount w/ Built-in Fan & Heater

Features:

  • 1/4" Super HAD image sensor & Ultra high 520TVL (Color) / 570TVL (B/W) Video resolution

  • Built-in Optical 10x (f3.8~38mm) & Digital 10x (Total 100x) Zoom Lens

  • 360˚Endless Panning & 0˚~180˚Tilt angle / User configurable Daynight IR Cut Filter mechanism

  • 63 Presets, 8 Tours, 4 Scan, 4 Pattern, Auto-scan, 4 Zones of Image Masking for Privacy

  • RS-485 Communication Interface with Multiple Protocols (Pelco-D & Pelco-P)

  • DNR (Dynamic Noise Reduction) feature enables to increase the recording storage capacity

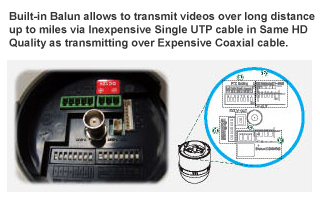

  • Built-in Balun to transmit videos over Single UTP cable in Same HD Quality as transmitting over Expensive Coaxial cable

  • ABS body & Polycarbonate Dome Cover / Optional Outdoor Housing (IP 66) & Brackets

Specification:

CCD

Sony 1/4 Super HAD CCD

Max. Pixels

811(H) x 508(V) 410K

Effective Pixels

768(H) x 494(V) 380K

Horizontal Resolution

520 TV Line (Color) / 570 TV Line (B/W)

Synchronization

Internal

Scanning System

2:1 Interlace, 525 Lines, 60 Fields / 30 Frames

Scanning Frequency

Horizontal: 15.734KHz / Vertical: 59.94Hz

S/N Ratio

50 dB (AGC Off, Weight On)

Zoom Ratio

x10 Optical Zoom / x10 Digital Zoom (Total: x100 Zoom)

Focal Length

F2.8, f=3.8~38mm

Min. Focus Distance

1.0M

Angle Field of View

Horizontal: Apprx. 51.2(Wide)~5.58(Tele) / Vertical: Apprx. 39.3(Wide)~4.27(Tele)

Min. Illumination

0.7Lux @ F2.8 (Color) / 0.02Lux @ F2.8 (B/W), 50 IRE

Day & Night

Color / Auto1 / Auto2 / B&W (ICR Filter Change)

Focus

Auto / Manual / One Push Selectable

Iris

Auto / Manual

Shutter Speed

1/60 ~ 1/120,000 sec.

AGC

Normal / High / Off

White Balance

ATW / AWC / Manual (1800K x 10,500K)

BLC

Low / Middle / High / Off

Flickerless

Selectable

DNR

Low / Middle / High / Off

DSS

On / Off (Selectable Limit ~ 128X)

Range

Pan: 360 (Endless) / Tilt: 0~180(Digital Flip)

Pan / Tilt Speed

Preset : 360/sec, Manual : 100/sec, Turbo : 180/sec

Pattern

63 Presets, 9 Tours , 4 Areas, 4 Patterns, 2 Alarm, Auto-scan

Preset Positions

63 Positions

Privacy Function

Max. 4 Programmable Zones

Flip

Digital Flip Supported

Lens Initialization

Built-in

Communication

RS-485

Protocol

Pelco-D or Pelco-P selectable

Power Consumption

DC 12V 600mA

Operating Temp.

32F~104F(0C~40C) &
-4F ~ 122F (-20C ~ 50C) when in Outdoor housing w/ Heater & Blower built-in

Operating Humidity

20% x 75% RH

Certification

CE, FCC, RoHS

Dimension

Camera only - 105.84mm (4.2inch) H147.8mm (5.8inch)

Weight

Camera only - 700g (1.5LBS)

Parts Included

PTZ Camera Unit, Complete Surface & In-Ceiling Mount Bracket Set, AC/DC Power Adapter,  Manual
