 Mobile PTZ Patrol Video System w/ x26 Tele Zoom & Real-time Monitoring Controller

Ideal to install on any form of Fast Moving Patrol Vehicles for Speed Mobile Surveillance

Portable Miniature Remote Control Unit consists of Built-in 7" LCD Monitor & PTZ Joystick Controller
Ultra High 540 TVL Video Resolution / Built-in Strong Image Stabilizer
360 Endless PAN / 3.5~91mm (26x) Auto zoom D/N (12x Digital Zoom -Total 312x)
Perfect Surveillance Gear for Military Vehicle, UAV, Fire Truck, Battleship, Police Car, Ambulance, etc.
0.001 Lux extreme sensitivity by D/N filter & DSS / MAX. 110/sec Pan speed / 63-Preset & Auto swing functions

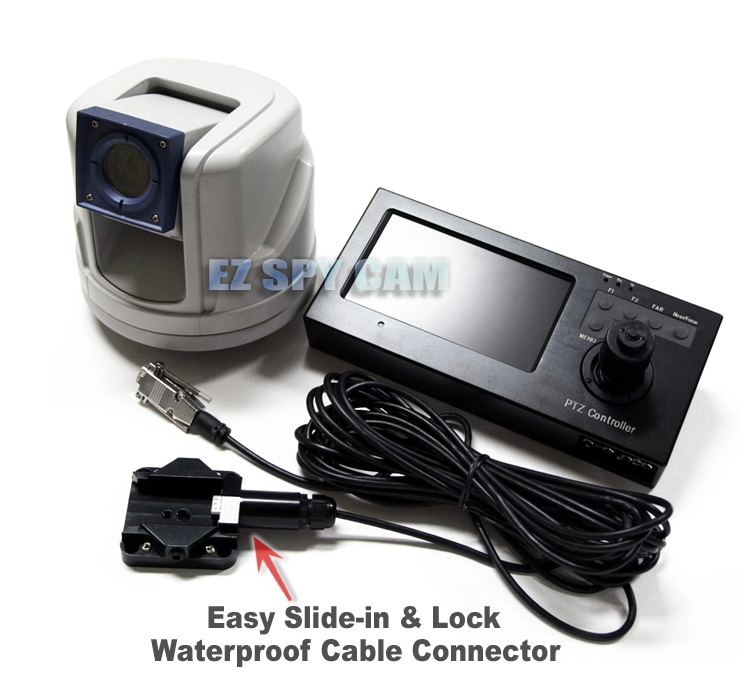

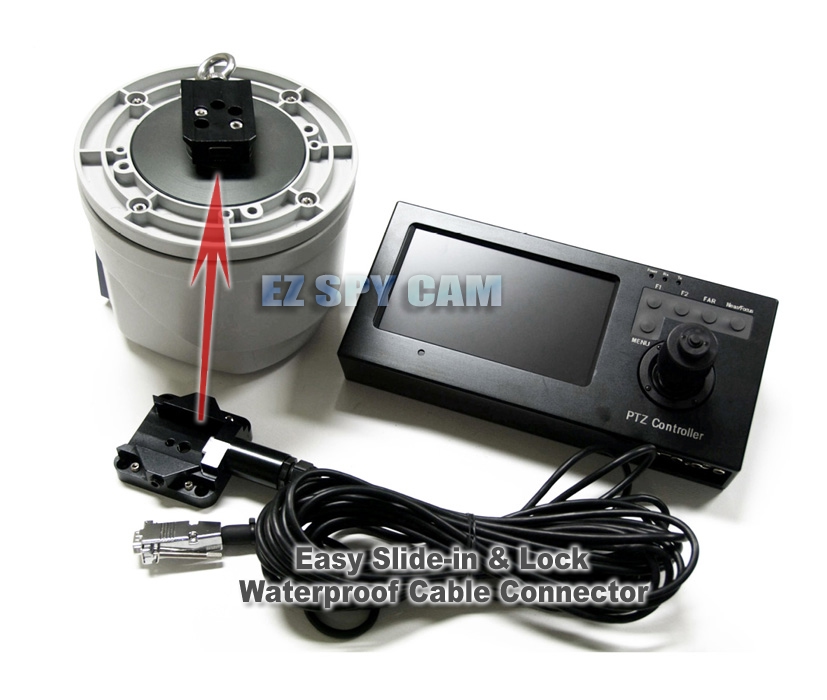

New Slide-in & Lock Cable Assembly brings you Great Mobility than ever before!







Military Vehicle Top Armored Mobile PTZ Camera --- click to enlarge --- Mil Spec Vehicle Top Armored Mobile PTZ Camera --- click to enlarge ---





click to enlarge...





click to enlarge...                        click to enlarge...

Plug-n-Play Cable Connection and Vehicle Rooftop Mounting



Our Price $800 off >

US$6,690.00

Regular Price >

US$7,490.00

Item#

EPC-600-MIL   ---Preorder to built in house & ships out in 20 ~ 30 working days---

Description

MIL-spec Mobile Armored PTZ Patrol Video System
w/ Remote Monitoring Unit w/ Built-in 3-axis Joystick PTZ Controller & 7"TFT-LCD Display

Specification  of Camera

Protection Level

IP-66 Weatherproof, Dust Tight, & Shock-Resistant Die-cast Aluminum & O- Ring sealed

Corrosion Free

All internal parts are protected with epoxy powder coating

Housing Construction

Solid Cast Aluminum & Shockproof Pyres Glass Lens Window

Wind Resistance

Tested against the wind speed up to 1,000mph w/ Mounting on a Thule roof rack

Vibration Level

3Grms 3 Axis Range 5 ~ 1000Hz

Image Sensor

1/4" Sony Super HAD Color CCD w/ Built-in Strong Image Stabilizer

TV System

Switchable NTSC or PAL

Resolution

Ultra High Horizontal 540 TV Lines

Effective Pixels

Appx. 680K (NTSC) / 880K (PAL)

Lens Spec

x36 Optical Zoom / f=3.4mm ~ 122.4mm (F1.4 ~ F4.5)

Digital Zoom x32, Total x1,152 Zoom

Angle Field of View --- H: 42.2 (Wide) to 1.6 (Tele)

Min. Focus Distance - 150cm (5ft)

Other Electrical Features

Lens Focus --- Switchable Auto, Push Auto, or Manual

S/N Ratio (Y-Signal) --- Over 50dB

Video Output --- CVBS: 1.0Vp-p / 75ohm

Lens Initialize --- Built-in

Day & Night --- IR Cut Filter Removable

Camera Title --- On / Off

Gain Control --- Low, Middle, High, Manual, Off

White Balance  --- 1,800K ~ 10,500K

Electronic Shutter Speed  --- 22 steps 1/1 to 1/10.000

Backlight  --- BLC / HLC / OFF

DNR  --- ON / OFF

Privacy Function --- 24 Zones

Baud Rate --- Selectable Speed: 2400 ~ 115200bps or Automatic

Flip, Mirror, Image Stabilizer --- On / Off

Low Light Long Integration --- Yes (25s)

Rich Exposure Control & Time Stamping / Titling --- Yes

PEL Count (NTSC / PAL) --- 680,000 / 800,000

Min. Illumination --- 0.0001 LUX (NIR Mode)

Communication

RS-485 - Multiple Protocol Supported (Auto Detection)

Pan

Noiseless 0 - 360 (Endless) Rotation & Auto Flip

Pan Speed

Preset - 110/ sec. +/-0.1 Accuracy

Tilt Range

-45~90 (64 steps proportional to zoom)

Tilt Speed

Preset - 60 /sec. +/-0.05 Accuracy

Display

4 Area Title / Zone Title On/Off (Start / End Zone)

Auto Scan

4 Programmable Speed and Diagonal Scan

Preset

63 positions & Auto Swing Function ( Less than 0.1 Accuracy)

Guard Tour

8 Guard tours, Consisting of 63 presets and functions

Pattern

4 Patterns

Image Orientation

Image Flip function adjusted via OSD setting for installing the camera downward or upward

Alarm In

2 Alarm ( NO/NC, Priority)

Alarm Out

2 Relay Out ( Hold, Latch)

Camera ID

Addressable from 0 ~ 255

Fan & Heater

Built-in - 42W

Power

DC11.5V ~ DC30V by DC-DC Convertor

Power Consumption

500mA / 2.0A Peak

Operating Temp

-30C ~ 50C

Humidity

0 to 90% RH (Non-condensing)

Certification

CE, EMC, FCC Class A, RoHS, E-Mark

Dimension / Wg't

190mm x H151mm / 3.75Kg

Specification  of Monitoring Remote Control Unit

TV System

Switchable NTSC or PAL

Display

Type: Active TFT-LCD Color / Size: 7" Diagonal / Forma: 440 x 234 / Backlight: 360NIT

Housing Construction

Aluminum proof Pyres Glass Lens Window

Joystick Control

Pan / Tilt / Zoom / Menu to all other adjustable functions

Communication

RS-485 - Multiple Protocol Supported (Auto Detection)

PTZ Control

Joystick Speed --- 0 ~ 100 Adjustable / Preset Speed --- 120/sec

Connectors

2-RCA Video Jacks, 9-pin/D-SUB, RS-485 RCA Jack, Audio RCA Jack, Power 2.5mm Locking

Power Consumption

800mA (12W)

Power

DC11.5V ~ DC30V by DC-DC Convertor

Dimension / Wg't

292mm x 136mm x 50mm(WxDxH) / 2.5Kg

System
Set Includes

PTZ Camera, Remote Monitoring Control Unit, 15ft Cable Assembly, AC/DC Power Supply, Instruction Manual
