Item#
|
EPC-601A
---
Preorder to built in house & ships out within
2 ~ 3 weeks ---
|
Description
|
HawkEye
All Weather Mobile PTZ Camera
|
Item#
|
EPC-601B
---
Preorder to built in house & ships out within
2 ~ 3 weeks ---
|
Description
|
HawkEye
All Weather Mobile PTZ Camera w/
Portable Video Recording Monitor
|
Item#
|
EPC-601C
---
Preorder to built in house & ships out within
2 ~ 3 weeks ---
|
Description
|
HawkEye
All Weather Mobile PTZ Camera w/
Portable Battery Kit
|
Item#
|
EPC-601D
---
Preorder to built in house & ships out within
2 ~ 3 weeks ---
|
Description
|
HawkEye
All Weather Mobile PTZ Camera w/
Portable Battery Kit & Video Recording
Monitor
|
Specification
|
Sensor
|
1/3"
Super HAD Color CCD
|
TV
System
|
NTSC
or PAL
|
Video
Output
|
CVBS
: 1.0Vp-p / 75 ohm
|
Scanning
Sys.
|
PAL:
725(H) x 582(V) pixels / NTSC: 768(H) x 494(V) pixels
|
Synchronization
|
Internal
|
Resolution
|
Horizontal
700TVL in Color / 800TVL in B&W
|
Zoom
Ratio
|
x20
Optical + x10 Digital Telephoto Zoom or above
|
Focus Range
|
Focus Distance - 1 inch when Manual or One Push Focus Mode / 1.0m (3.3ft)
when Auto Focus Mode
|
Lens
Focus
|
Auto, Manual, or One Push Selectable
|
Aperture
Ratio
|
F1.6 (Wide) ~
F3.5
(Tele)
|
Focal
Length
|
f
4.7mm
(Wide) ~ f 94mm
(Tele)
|
Iris
Control
|
Auto
or Manual Selectable
|
Lens
Initialization
|
Built-in
|
Orientation
|
Default: upward
& the lens can be flipped downward manually by opening the
lens housing
|
BLC
|
Back
Light Compensation - Low / Middle / High / Off Selectable
|
Day/Night
|
Color
/ Auto 1 / Auto 2 / B&W (ICR Filter Change)
|

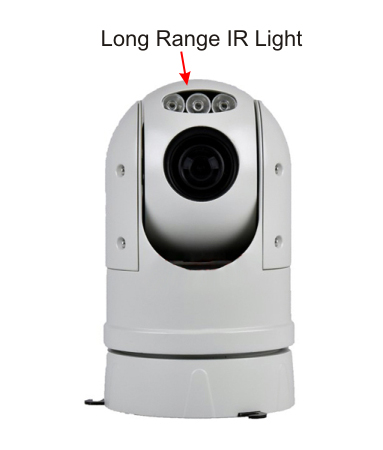

Nightvision
|
Ultra
Long Rang Infrared LED - 50M Range
|
ESS
|
Electronic
Shutter Speed - Auto
/ Manual Selectable (1/60 ~ 1/120,000)
|
Gain
Control
|
Normal
/ High / Off Selectable
|
DNR
|
Digital
Noise Reduction - Low / Middle / High / Off Selectable
|
WB
|
White
Balance - ATW / AWC / Manual Selectable (1,800ºK
~ 10,500ºK)
|
Min.
Illumination
|
0.05
Lux - Color & 0.01 Lux -
BW / DDS Mode: 0.001 Lux - Color & 0.0004 - BW
|
S/N
Ratio
|
Over
50dB (AGC off, Weight on)
|
Communication
|
RS-485
|
Protocols
|
Pelco-D
or Pelco-P Automatically detected
|
Baud
Rate
|
2400 ~
9,600bps Automatically detected
|
Pan
Range
|
Pan:
0
- 360º
(Endless)
|
Pan
Speed
|
0.1º
~ 240º/Sec (Adjustable)
|

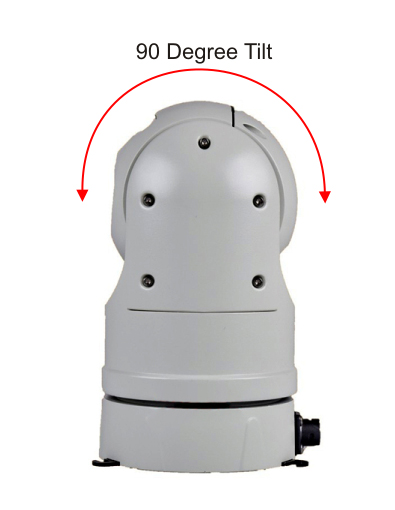

Tilt
Range
|
-5º
~ 90º/Sec
|
Tilt
Speed
|
-0.1º ~ 180º/sec (Adjustable)
|
OSD
|
All
possible camera function settings
|
Auto
Swing
|
Auto
swing MAX. 4 Pan Swing (2 Position Swing)
|
Special
Function
|
256
Preset
positions, 8 Tours, 4 Scan, 4 Area, 4 Pattern, 2 Alarm, Auto scan
|
Privacy
Function
|
Max.
4 Programmable Zones
|
Preset
Position
|
63
Positions
|
Camera
ID
|
Addressable
from 0 ~ 255
|
Fan
& Heater
|
Built-in
- 42W
|
Power
Consumption
|
DC12V
(+/- 10%) 50W
|
Operating
Temp
|
-20ºC
~ 65ºC / -4ºF ~ 149ºF (When Fan & Heater On)
|
Humidity
|
0
to 90%
|
Certification
|
CE,
FCC, RoHS
|
Dimension
/ Wg't
|
Ø120mm x
H207mm (4.7" x 8.15") / 5Kg (11LBS)
|
Protection
Level
|
IP-66
(Dust tight & Water resisted)
|
Housing
Material
|
Aluminum
Alloy w/ UV Resistant Paint Coated
|
Camera
Set Includes
|
PTZ Camera, Connection Cable Set,

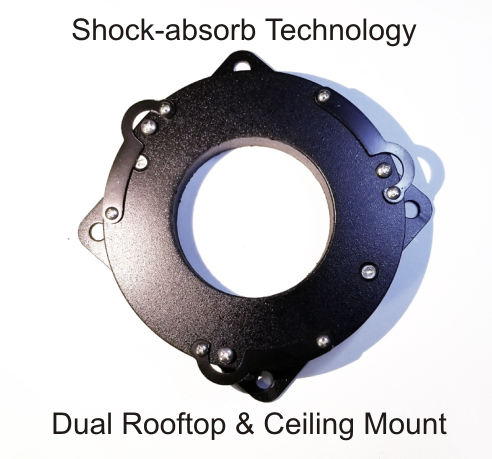

Shock Absorb Dual Rooftop & Ceiling Mount, Universal AC/DC
12V Power Supply, & Instruction Manual
|
