Ultimate Rugged Mobile PTZ Security Cam w/ PIP, Wiper, x1152 Zoom, Fan & Heater

Ideal Video Surveillance for All Harsh Weather Conditions

Intelligent Object & Motion Detection, Smart IR feature to eliminate white glow spots
RS-422 & RS-485 remote control communication system w/ Pelco-D or Pelco-P protocol support
Up to 63 programmable preset, less than 0.1 Preset Accuracy, 8 programmable Tour, 4 Pattern
Ultra large 30 IR-LED light to view up to 650ft at night & ICR feature to produce a superior B&W video
PIP feature to view a target spot enlarged while viewing whole area via Dual PIP screen simultaneously
Optical 36x power zoom and 32x digital zoom, Dual scan 512x WDR Endless, Pan rotation (180 Tilt angle)
1/4 613K pixels SONY Super HAD dual scan CCD w/ 700TVL Ultimate Video Resolution & Auto Focus Zoom

Traffic Control, Parking Lot Surveillance, School Safety, Auditorium Surveillance, Board Line Homeland Security





Traffic Control Rugged PIP Mobile PTZ camera --- click to enlarge --Traffic Control Heavy Duty PIP Mobile PTZ camera --- click to enlarge ---





 PIP (Picture in Picture) Dual Camera System

 click to enlarge...



 Unlimited Outdoor & Mobile Applications

 click to enlarge...



click to enlarge...



Our Price $500 off >

US$3,490.00

Regular Price >

US$4,490.00



Item#

EPC-603   ---Preorder to built in house & ships out within 2 ~ 5 working days---

Description

Ultimate Rugged Mobile PTZ Camera w/ PIP, Wiper, & 650ft Range IR Light



Main Camera Specification

CCD

Sony 1/4 Super HAD II CCD (Double Scan)

Type

Zoom Camera

Max. Pixels

1028(H) x 508(V)

Horizontal Resolution

700 TV Line (Color) / 800 TV Line (B/W)

Synchronization

Internal

Scanning System

Interlace

Scanning Frequency

Horizontal: 15.734KHz / Vertical: 59.94Hz

S/N Ratio

50 dB (AGC Off)

Zoom Ratio

X36 Optical Zoom / x32 Digital Zoom (Total: x1,152 Zoom)

Focal Length

f=3.4~122,4mm (F1.6 to 4.5)

Focus Range

Focus Distance - 3cm when Manual or One Push Focus Mode / 10cm when Auto Focus Mode

Lens Focus

Auto, Manual, or One Push Selectable

Focus

Auto / Zoom-Trig / Manual

E. Zoom

Off / Max. 2x ~ 32x

Image Orientation

Image Flip function adjusted via OSD setting for installing the camera downward or upward

Exposure

Auto / Shutter PRI / Manual

Min. Illumination

0.5 Lux - Color & 0.2 Lux - BW / DDS Mode: 0.001 Lux - Color & 0.0004 - BW

Day & Night

Color / Auto1 / Auto2 / B&W (ICR Filter Change)

IR LED

Super Large 30EA 870nm (650ft Range)

Video Output

CVBX: 1.0Vp-p / 75 ohm

Cam Title

On / Off (15 characters displayed)

Cam ID

255 ID Selectable

Daynight

Auto / Sens-in / Ext / Day / Night

Iris

Auto / Manual (Full Open)

Shutter Speed

1/60 ~ 1/1000,000 sec

AGC

Low / Med / High / Off

White Balance

ATW / One-Push / Indoor / Outdoor / Manual / Auto

WDR / BLC

Off / WDR / BLC

Flickerless

Selectable

DNR

Off / Manual / Auto

OSD

Built-in

Pan / Tilt Range

Pan: 360 Continuous / Tilt: 180 (+/-90)

Pan / Tilt Speed

Manual: 0.1 to 90/sec / Preset Speed: 150/sec, +/-0.1 Accuracy

Fan & Heater

Built-in

Privacy Function

Off / 8 Zones

Sub Camera Specification

CCD

Sony 1/3 Super HAD II CCD

Type

Board Camera

Max. Pixels

811(H) x 508(V)

Resolution

600TV Lines (Color) / 650TV Lines (B&W)

Scanning System

2:1 Interlace

Synchronization

Internal

Min. Illumination

Color: 0.3 Lux / BW: 0.1 Lux

Video Output

1.0 Vp-p (75 ohm, Composite)

S/N Ratio

More than 50db (AGC Off)

Mechanical & Environmental Specification

Housing Material

Aluminum

Protection Level

IP-66 Weatherproof, Dust Tight, & Shock-Resistant Die-cast Aluminum & O- Ring sealed

Corrosion Free

All internal parts are protected with epoxy powder coating

Video Out TV System

NTSC or PAL selectable via Dip switch configuration

Communication

RS-422 (4-Wire) or RS-485 (2-Wire) / Pelco-D & P

Baud Rate

2400 / 4800 / 9600 / 19,200 / 38,400bps

Power Input

DC11.5V ~ DC30V

Power Current

DC12V 8A

Power Consumption

10W (Heater On) / 3.4W (Fan On)

Operating Temp. / Humidity

-20C~50C w/ Heater & Fan On / 20% x 80% RH

Storage Temp. / Humidity

-20C~60C / 20% x 95% RH

Motor

Holding Torque: 13.5kgf/om, 1.35N.m / Step Angle: 1.8 / Winding Type: Bipola

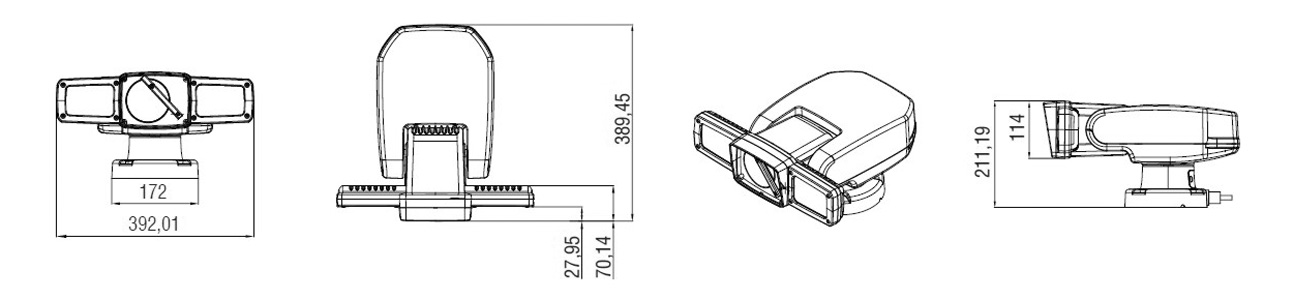

Dimension

W392.01mm H211.19mm x D389.45mmclick to enlarge...

Weight

<12.5kg

Parts Included

PTZ Camera Unit, Complete Mounting Bracket Set, Communication Terminal, Power Cable, Main Cable, DC12V 8A Power Adapter, Manual

*Click here or the left picture to download and review Typical PTZ connection diagram.
