Extreme Low Lux Starlight Lipstick Camera w/ OSD & 0.00008 Lux

Ideal to view in extreme low light environments where no lighting support available
Views both Visible Strong 850nm IR light and No-Red-Glow Invisible 950nm IR Light
Requires only 0.0005 Candlelight or Starlight to see in the dark with no artificial lighting support


Advanced video module that can configured via OSD on your DVR to fit into your application precisely

Best for Extreme Low Light Environment where no external light permitted or supported




low lux cctv lipstick camera --- click to enlarge ---

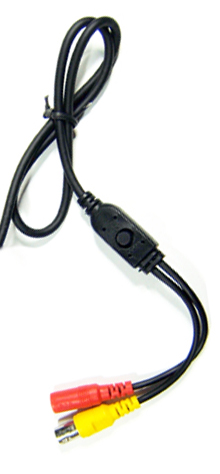

Iin-cable OSD Control Button --- click to enlarge --- Starlight Low Lux CCTV Lipstick Camera --- click to enlarge ---

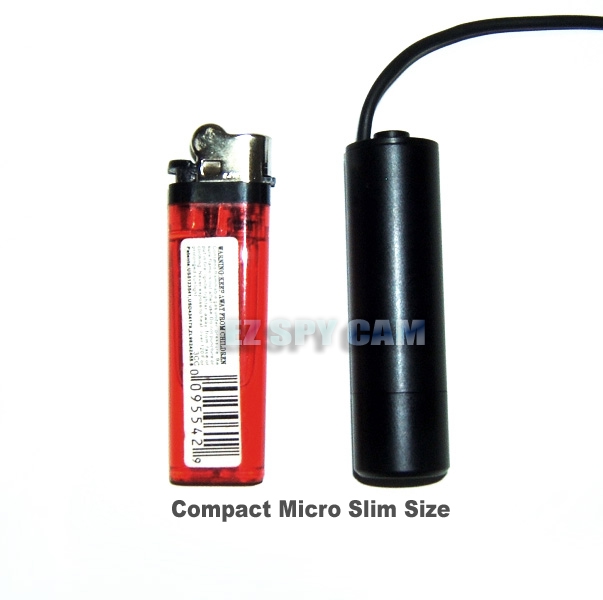

Mini Size

In-Cable OSD Control Button Metal Mount


"OSD Features"

Day Night image clip --- click to enlarge ---DNR image clip --- click to enlarge ---HS BLC image clip --- click to enlarge ---

Low Light Image Clip --- click to enlarge ---Mirror effect image clip --- click to enlarge ---WDR image clip --- click to enlarge ---


Choose one from the dropdown option box below, then click "Add to Cart" button to check out
"Discontinued"


Item#

ESC-150BLA   ---Stock to built in house & ships out within 3 ~ 7 working days---

Description

Starlight Extreme Low-Lux Mini Lipstick Cam w/ OSD Control Built-in & 2.8mm Board Lens

Item#

ESC-150BLB   ---Stock to built in house & ships out within 3 ~ 7 working days---

Description

Starlight Extreme Low-Lux Mini Lipstick Cam w/ OSD Control Built-in & 3.6mm Board Lens

Item#

ESC-150BLC   ---Stock to built in house & ships out within 3 ~ 7 working days---

Description

Starlight Extreme Low-Lux Mini Lipstick Cam w/ OSD Control Built-in & 8.0mm Board Lens

Item#

ESC-150BLD   ---Stock to built in house & ships out within 3 ~ 7 working days---

Description

Starlight Extreme Low-Lux Mini Lipstick Cam w/ OSD Control Built-in & 12mm Board Lens

Item#

ESC-150BLE   ---Stock to built in house & ships out within 3 ~ 7 working days---

Description

Starlight Extreme Low-Lux Mini Lipstick Cam w/ OSD Control Built-in & 16mm Board Lens

Item#

ESC-150BLX   ---Stock to built in house & ships out within 3 ~ 7 working days---

Description

Starlight Extreme Low-Lux Mini Lipstick Cam w/ OSD Control Built-in & 25mm Board Lens

Specification:

Image Sensor Size

1/3 inch SONY Super HAD II

Horizontal Resolution

650 TVL

TV System

NTSC / PAL

Pixels

NTSC: 811(H) X 508(V) / PAL: 795(H) X 596(V)

Electronic Shutter

NTSC: 1 /60 -1/100 000 sec

Minimum Illumination

0.0001 Lux ~ 0.00008 Lux at Max. Sens-up DSS

Sens-up

DDS  x512

Lens Option

2.8mm, 3.6mm, 8mm, 12mm, 16mm, & 25mm

Day Visibility

3 inches from the camera to infinity

S/N Ratio

≥48dB

Scanning System

2:1 Interlace

Sync System

Inner Sync

Power input

DC 12V@ 100mA

Video Output

BNC (1.0Vp-p/75ohm)

OSD Adjustable Functions

Exposure: DC or ELC Lens, HBLC, D-WDR, AGC, 3D DNR, Sense-Up x512 / Color: Whit Balance Mode, R-Y Gain, B-Y Gain / Day & Night:  Mode (Auto, Color, E-CDS, or B&W), C_SUP, A_SUP / Special Function: Mirror, Sharpness, Monitor, Gamma, LSC / Motion Detection Control / Privacy Mask Control / Video Setting / System Setting

Operation Environment

Temp: -10 C to 50 C; RH: 95% Max;

Weight

2oz

Dimension

Ø20mm x L80mm

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

Camera, AC/DC 12V Power Supply, Manual, Complete Mount Bracket Set, Operation Guide
