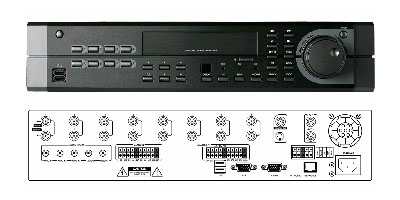

8 Channel Network Stand-Alone DVR - 120fps Recording/240fps Live

MPEG-4,  Monitoring, VGA Output, Real-time Triplex, User Friendly
Web-browser Remote View, 2 Way Voice Communication, USB Mouse Control, CD-RW, 250GB HDD






Our Price $100 off >

US$1,190.00

Regular Price >

US$1,290.00

Item# ESD-0812
Performance
TRIPLEX
Simultaneous Operation of Display, Record, Search
Video in
No. of Channel
8
Signal Type
NTSC, PAL
Audio in
No. of Channel
2
Signal Level
Line in
Main display
BNC
Composite (NTSC/PAL)
VGA
1024X768 @60Hz
Live display speed
240CIF/sec, 200CIF/sec
Screen Split
1/ 4/ 9/ ??
Spot display
No. of Channel
2
Quad spot
(Advanced Digital Spot)
No
Audio output
No. of Channel
1
Signal Level
Line out
Sensor In
No. of input
8 (1 Relay, 7 Open collector TR)
M:N mapping
Yes
Digital Out
No. of relay
1
No. of open collector
7
User Interface
GUI
Yes (Alpha blending)
Control device
Keypad/PTZ Control keyboard/ Remote controller
Recording
Video CODEC
MPEG-4
Resolution
CIF(352X240,352X288), 2CIF(704X240,704X288), 4CIF(704X480,704X576)
Max frame rate
120 CIF/sec, 100 CIF/sec
Quality
Highest/ High/ Standard/ Low
Pre-recording
Max 5sec
Recording type
Continuous/ Motion/ Alarm/ Panic
Configurable frame rate for each channel
30fps/ 15fps/ 7.5fps/ 4fps/ 2fps/ 1fps
Channel independent setup
Yes
Time schedule
Yes
Playback
Speed
x1, x2, x3, x4, x8, x16, x32, x64, x128
Screen Split
Yes
Live display speed
240CIF/sec, 200CIF/sec
Screen Split
1/ 4/ 9/ ??
Synch. with Audio
Yes
Archiving
Storage
CD-ROM/ DVD-ROM/ USB interfaced storage/ Network
Watermarking
Yes
File format
AVI
PTZ
RS-485
Yes
System
Watch dog
Yes
Abnormal shutdown detection
Yes
System auto recovery
Yes
Factory default
Yes
Multi-language
Yes
Network
Physical/Mac Layer
RJ45, Ethernet
Max no. of connections
16
DHCP
Yes
DDNS
Yes
Two-way network audio
Yes
Bandwidth Management
Yes
Remote Client
WEB monitoring
Yes
Remote client S/W
Yes
Remote setup
Yes
M:N connection
16 X 16
email event notification
Yes
Storage
Capacity
not limited
Storage type
HDD/ ODD/ Flash
Recording HDD management
Format/ Data locking
Recording HDD mode
Write once/ Overwriting
Interface
USB port
Front 2, Rear 2
RS-485
1
RS-232
1
RJ-45
1
Event
Source
Sensor In/ Motion detection/ Video Loss/ HDD S.M.A.R.T
Action
Recording/ Digital out/ email notification/ Log/ Send to remote client SW/ Buzzer out/ Video popup
Search
Calendar search
Yes
Timeline search
Yes
Log search
Yes
OSD languages
English, Spanish, French, Chinese, Korean, Japanese, Dutch, Portuguese, Russian, Polish, Romanian, German
Includes Remote Client Software CD-ROM, Userís Manual, Remote Control Unit, AAA Battery x2, Power Cable
Download Stand-alone DVR Manual - Click the following link or paste it to your web browser. http://www.EZspyCam.com/download/MN-SA-DVR.pdf
Networking Software Instruction - Click the following link or paste it to your web browser. http://www.EZspyCam.com/download/MN-iCENS120.pdf
Multi-DVR Management Software Instruction - Click the following link or paste it to your web browser. http://www.EZspyCam.com/download/MN-DVR-manageman.pdf
PDA Viewer Software Instruction - Click the following link or paste it to your web browser. http://www.EZspyCam.com/download/MN-PDA110.pdf
POS Installation Guide - Click the following link or paste it to your web browser. http://www.EZspyCam.com/download/MN-POSman.pdf
