8 Channel Network Stand-Alone DVR - 240fps Recording & 240fps Live Display

1000GB HDD & DVDRW, Embedded LINUX OS, Mouse driven graphical user interface
Totally maximum recording : 240 fps@2CIF(Half-D1)(NTSC) / 200 fps@2CIF (Half-D1) (PAL)
High Resolution & Quality H.264 compression, Multi protocol RS485 & FSK telemetry
Individual Recording Settings by channel to optimize record duration
Full Pentaplex: Live monitoring, recording, playback, backup, Network, Spot output (single or multi-channel or event)

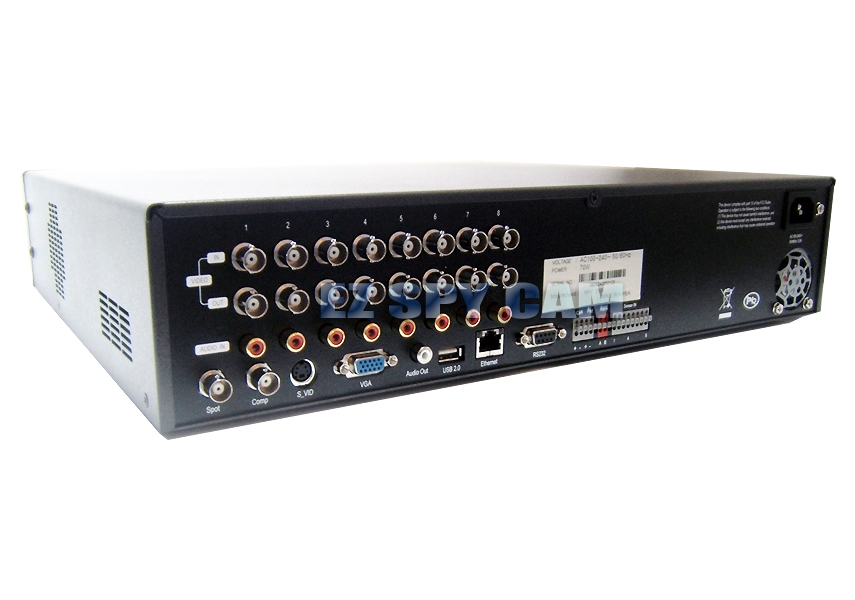

click to enlarge...          click to enlarge...



Our Price $200 off >

US$1,390.00

Regular Price >

US$1,590.00

Item#

ESD-0824

Description

8-CH Standalone DVR w/ 240fps Recording & 240fps Realtime Display

Features:

H.264 contains a number of new features that allow it to compress video much effectively than older standards and to provide more flexibility for application to a wide variety of network environments. H.264 is the latest and more advanced video standard developed jointly by ITU and MPEG. It is also known as MPEG-4 Part 10, or MPEG-4 AVC.

  • SMART RECORDING
    DVR prioritizes motion detection on a channel in order to put more frame rate than others.

  • Advanced PTZ Control
    Control Pan, Tilt , Zoom and Preset on DVR Screen. No separate controller needed

  • Full D1 resolution
    Those of you who prefer to have better resolution than frame per second. Full D1 resolution recording option is available over all 16 and 8 channels. 4 ch model records real-time video with D1 resolution. Independent 4/8/16ch split-view spot out

  • SELF-SENDING ALERT VIA E-MAIL
    DVST HQ-16D/8D/4D have a built-in SMTP (simple mail transfer protocol) server. It is NOT an option to be alerted on important occasions.

  • Real-time Recording
    DVST HQ-16D/8D/4D provide full 30 fps video recording on each channel. You will be amazed by how playback quality is so clear and smooth!

  • Ultra fast remote view
    DVST HQ-16D/8D/4D has a specially designed OVERDRIVE UNIT which utilizes H.264 CODEC to makes even faster video transmission than other H.264 DVRs over the regular DSL line. Compare the quality and speed with other DVR.

Video

In

8Ch

Out

1 BNC / 1 S-Video / 1 VGA / 1 Spot

Loop Out

8 Ch

Audio

In

8 Ch (RCA)

Out

1 Ch (RCA)

Alarm

In

8 ea

Out

1 NO/NC

Operating System

Embedded Linux OS

Display

Speed

240 fps

Resolution (Pixel)

720480 (NTSC) / 720576 (PAL)

Split Screen

1 / 4 / 8

Recording

Compression

H.264

Resolution (Pixel)

720x480 / 720x240 / 360x240 (NTSC)
720x576 / 720x288 / 360x288 (PAL)

Picture Quality

3 Steps (High, Middle, Low)

Mode

Normal / Motion / Alarm / Schedule / Audio / Duration

Priority

Alarm > Motion > Schedule > Duration > Normal

Speed Total (fps)

240 (360x240) / 240 (720x240) / 120 (720x480)

Speed Each Channel

30 (360x240) / 30 (720x240) / 15 (720x480)

Water Marking & Scrambling

Own Algorithm

Playback

Display

1 / 4 / 8

Search Mode

Date & Time / Calendar / Event (Alarm, Motion, Audio)

Speed

Normal / REW (x1/2/4/6) & FF (x1/2/4/16), Frame to Frame, Pause

Device

Internal HDD

Still Image Capture

JPEG / BMP Compression or Exclusive Format & USB I/F Device (Memory Stick)

Network

Network Interface

Ethernet

Protocol

TCP/IP, SMTP, HTTP, DHCP, PPPOE (ADSL)

Serial Communication

RS-232 1ea, RS-485 2 ea (PTZ & Keyboard control)

Application

Windows 2000 / XP (PC Client System) / Windows Vista

Web Browser

Internet Explorer 5.0 Higher (DVRs Control or Viewing)

Event Transport

E-mail notification when Event Occurs

Viewing

Remote Client, CMS

Archive

Interface

USB 2.0 x 2ea

Archive Device

Internal CD & DVD-RW / External HDD, Storage, Network, Memory Stick

Control

Motion Detection

Each Control / Channel
Sensitivity : 3 Steps for each channel
Area : Programmable motion detection area for each camera individually

Alarm Hold Time

5 ~ 240 Sec

Event Log

Up to the 256 events (Alarm, Motion, Video & PWP Loss, PWR & REC On/Off)

Controller

IR Remote Control / Mouse

Pan / Tilt Camera

Control from RS485 Interface

Storage

HDD

1,000GB (1TB) built-in & Support up to 3TB w/ 3 HDD Slots

Backup

DVDRW

Included

Others

Power Source

100 ~ 240V AC, 50 ~ 60Hz (90W)

Operating Temperature

5 ~ 40C (41 ~ 104F)

Relative Humidity

Maximum 80% Non-Considering

Weight

Net - 9.0Kg / Gross - 10.0Kg

Dimension

Net - 440(W) x 420(D) x 90(H)mm
Gross - 550(W) x 540(D) x 220(H)mm
