| Item# |

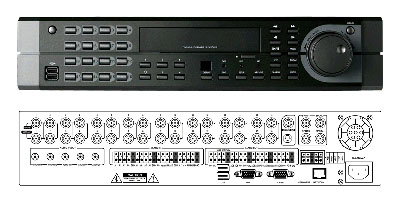

ESD-1612
|
| Performance |
TRIPLEX |
Simultaneous Operation of Display, Record, Search |
| Video in |
No. of Channel |
16 |
Signal Type |
NTSC, PAL |
| Audio in |
No. of Channel |
4 |
Signal Level |
Line in |
| Main display |
BNC |
Composite (NTSC/PAL) |
VGA |
1024X768 @60Hz |
Live display speed |
480CIF/sec, 400CIF/sec |
Screen Split |
1/ 4/ 9/ 16/ ?? |
| Spot display |
No. of Channel |
4 |
Quad spot
(Advanced Digital Spot) |
No |
| Audio output |
No. of Channel |
1 |
Signal Level |
Line out |
| Sensor In |
No. of input |
16 (1 Relay, 15 Open collector
TR) |
M:N mapping |
Yes |
| Digital Out |
No. of relay |
1 |
No. of open collector |
15 |
| Digital Out |
No. of relay |
1 |
No. of open collector |
15 |
| User Interface |
GUI |
Yes (Alpha blending) |
Control device |
Keypad/PTZ Control keyboard/ Remote controller |
| Recording |
Video CODEC |
MPEG-4 |
Resolution |
CIF(352X240,352X288), 2CIF(704X240,704X288), 4CIF(704X480,704X576) |
Max frame rate |
120 CIF/sec, 100 CIF/sec |
Quality |
Highest/ High/ Standard/ Low |
Pre-recording |
Max 5sec |
Recording type |
Continuous/ Motion/ Alarm/ Panic |
Configurable frame rate for each channel |
30fps/ 15fps/ 7.5fps/ 4fps/ 2fps/ 1fps |
Channel independent setup |
Yes |
Time schedule |
Yes |
| Playback |
Speed |
x1, x2, x3, x4, x8, x16, x32, x64, x128 |
Screen Split |
Yes |
Live display speed |
240CIF/sec, 200CIF/sec |
Screen Split |
1/ 4/ 16 |
Synch. with Audio |
Yes |
| Archiving |
Storage |
CD-ROM/ DVD-ROM/ USB interfaced storage/ Network |
Watermarking |
Yes |
File format |
AVI |
| PTZ |
RS-485 |
Yes |
| System |
Watch dog |
Yes |
Abnormal shutdown detection |
Yes |
System auto recovery |
Yes |
Factory default |
Yes |
Multi-language |
Yes |
| Network |
Physical/Mac Layer |
RJ45, Ethernet |
Max no. of connections |
16 |
DHCP |
Yes |
DDNS |
Yes |
Two-way network audio |
Yes |
Bandwidth Management |
Yes |
| Remote Client |
WEB monitoring |
Yes |
Remote client S/W |
Yes |
Remote setup |
Yes |
M:N connection |
16 X 16 |
email event notification |
Yes |
| Storage |
Capacity |
not limited |
Storage type |
HDD/ ODD/ Flash |
Recording HDD management |
Format/ Data locking |
Recording
HDD mode |
Write once/ Overwriting |
| Interface |
USB port |
Front 2, Rear 2 |
RS-485 |
1 |
RS-232 |
1 |
RJ-45 |
1 |
| Event |
Source |
Sensor In/ Motion detection/ Video Loss/ HDD S.M.A.R.T |
Action |
Recording/ Digital out/ email notification/ Log/ Send to remote client SW/ Buzzer out/ Video popup |
| Search |
Calendar
search |
Yes |
Timeline search |
Yes |
Log search |
Yes |
| OSD languages |
English,
Spanish, French, Chinese, Korean, Japanese, Dutch,
Portuguese, Russian, Polish, Romanian, German |
| Includes |
Remote
Client Software CD-ROM, User’s Manual, Remote Control Unit, AAA
Battery x2, Power Cable |
