iPhone,  Android, & Windows Mobile 6.1 Compatible Fast Network 8CH Standalone DVR

FAST INTERNET REMOTE VIEW

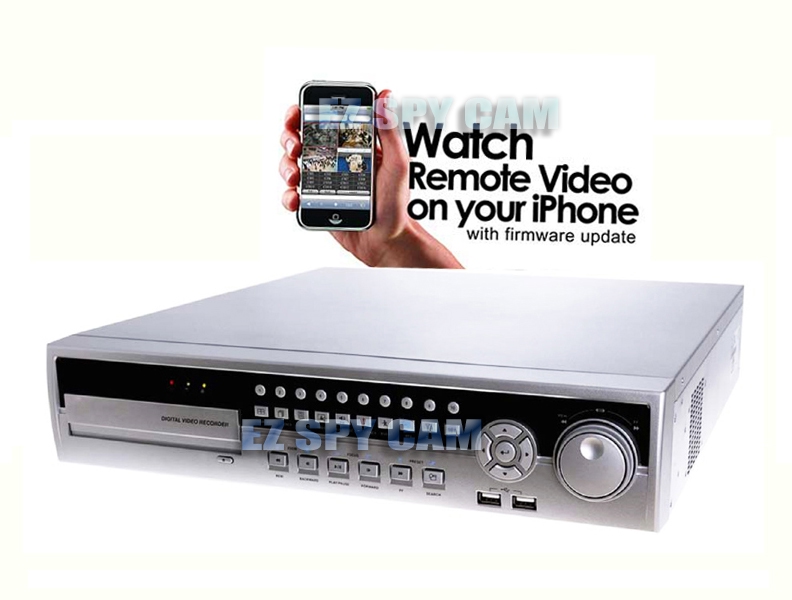

View remote video on your iPhone (App base : Blazing fast)
Real-time Live & Recording DVR System
MPEG4 CODEC / Pentaplex / 240 FPS Live & Recording
8 Channel Video / 8 Ch Audio / 8 Ch Alarm In/Out

Great application for Realtime Remote Video Surveillance & PTZ Camera Control



click to enlarge...                     click to enlarge...



Sale Price $50 off >

US$599.00

Regular Price >

US$649.00



Item#

ESD-PE0824

Description

Pro Remote Viewable Fast Network 8CH Standalone DVR w/ Built-in 1TB HDD & DVR-RW

Features


KEY FEATURES:
* User Friendly GUI (Flexible, Easy and Convenient)
* Advanced CMS Software (Convenient and Versatile Software)
* S.M.A.R.T (Self Monitoring Analysis and Reporting Technology)
* Dual Stream (Dual Streaming for High Speed Internet)
* External Storage (Maximum External Storage Extension)

CMS FEATURES:
* Up to X 64 Channel Display
* Remote Multi Site Control
* Remote PTZ Control
* Health Check System
* Remote Setup (Configuration)
* Remote Event Search Engine
* Remote Date/Time Search Engine
* 2-Way Audio (Bi-Directional)
* Local Recording (NVR Function) & Playback
* Local Playback
* Archiving (EXE/JPEG File Format)
* Remote Alarm Out Control - Local Audio Out Volume Control - Local Account
* Remote Log Display
* Remote Camera Color Adjustment
* WCS (Watermark Check System)
* E-MAP
* Keyboard Controller
* Remote S/W Upgrade

Web Client FEATURES:
* Multi Channel Display
* PTZ Control
* Live Monitoring
* Freeze Function
* Channel and Camera Number Display


Compression

Advanced MPEG4 ASP / Pentaplex

Signal Format

NTSC or PAL (Auto Selected)

Video Input

Composite 8 BNC Inputs

Video Output

Composite: 1 (1Vp-p, 75 Ohm)

Loop Output

8 BNC Looping Outputs

Spot Output

1 BNC

VGA Output

1 VGA

Sequence

Yes

Max Recording Rate at CIF (FPS)

240 (NTSC) / 200 (PAL)

Max Recording Rate at H.D1 (FPS)

120 (NTSC) / 100 (PAL)

Max Recording Rate at Full D1 (FPS)

60 (NTSC) / 50 (PAL)

Dual Stream

Dual

Audio Input

8 Inputs (RCA Jack)

Audio Output

1 Output (RCA Jack)

Ethernet

10 / 100Mbps Ethernet (RJ-45)

PTZ Control

RS-485/422 Serial Port 1 (Terminal Block)

ATM / POS

Up to 4 Channels Over USB (Optional)

Alarm Input

8 (TTL) Programmable as NC/NO

Alarm Output

8 (TTL) Programmable as NC/NO

USB Port

4 x USB2.0 (2 x Front Panel, 2 x Rear Panel)

Recording Qualities

Super / High / Standard

Network Transmission Quality

Standard 1, 2, 3, 4 / High 1, 2, 3 / Super 1, 2, 3

Network Bandwidth Control

26 Kbps ~ Unlimited

Recording Modes

Continuous / Alarm / Motion / Emergency

Pre-Alarm Recording

up to 3 Hours / User Programmable

Motion Detection

Yes (22 X 15)

Playback Speed

X1, X2, X4, X8, X16, X32, X64, Extreme

Archive File Format

EXE (Video Clip) / JPEG (Still Image)

NTP Server

Yes

GMT Time Zone

Yes

Auto DST

Yes

Multi Language

English / Danish / Chinese (Traditional) / Japanese / Korean / Italian / Polish / Russian / Chinese (Simplified) / Thai / Turkish / Spanish / French / Czeko / German / Persian / Portuguese / Croatian

Operating System

Embedded Linux

OS Firmware

Linux OS in Flash Memory

Emergency Recording Key

Yes

Primary Storage

SATA HDD (Up to 3+1)

Clip Copy Storage

Built-in Internal DVD-RW, Memory Stick

Dimension (WxHxD)

430 mm x 88 mm x 400 mm / 16.93 inch x 3.46 inch x 15.75 inch

Operating Temperature

5C~40C / 41F~104F

Operating Humidity

0% ~ 90%

Power Adapter

Free Voltage 12VDC, 6.67A

Power Consumption

Max 50W

Agency Approval

FCC / CE
